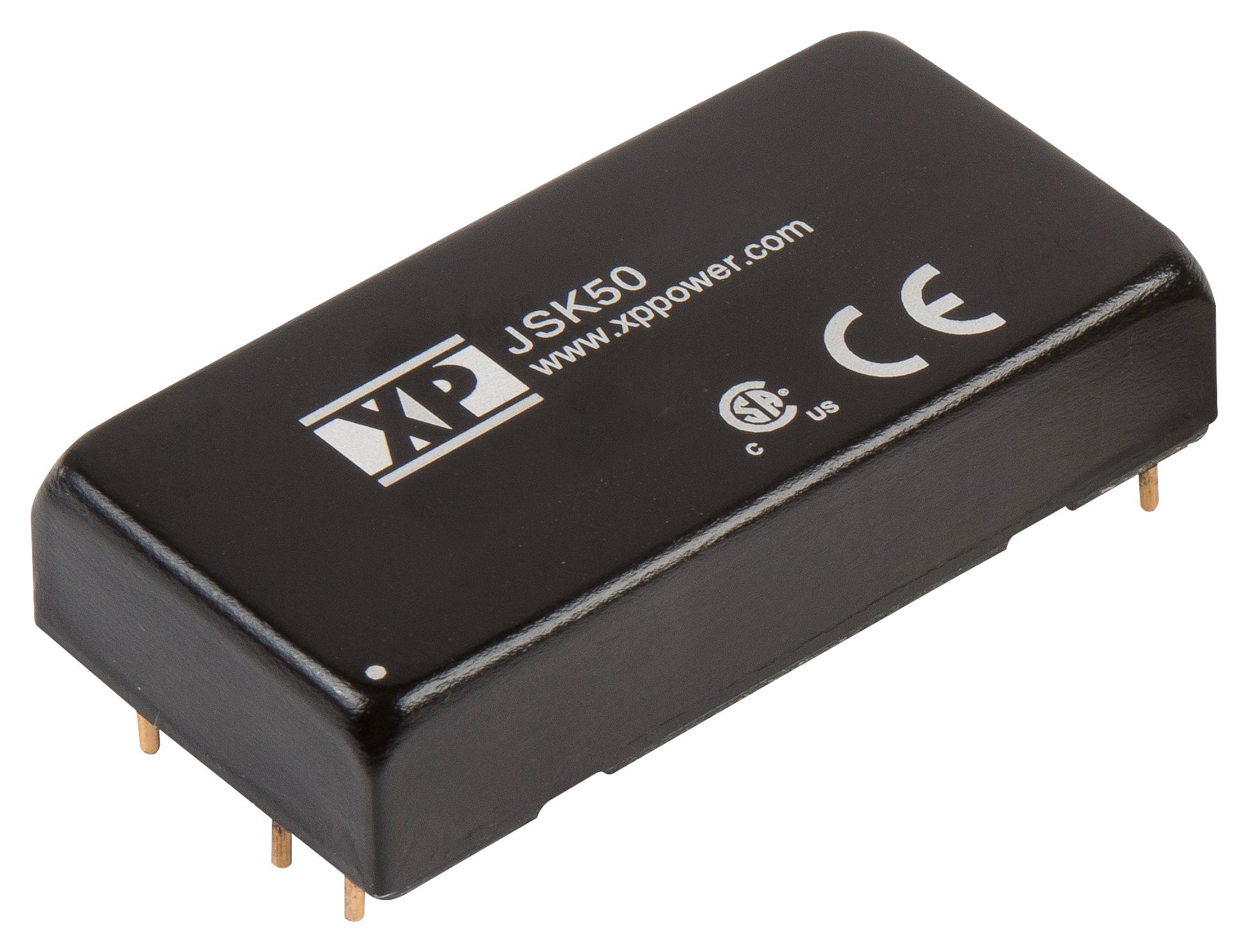

XP POWER JSK5024S24 DC Power Supply
The JSK50 series power supply delivers up to 50 Watts of regulated output power, perfect for industrial and power management applications. It features a wide 2:1 input voltage range from 8V to 36V, and five models with output voltages of 3.3V, 5V, 12V, 15V, or 24VDC. Built with a compact 2 x 1-inch metal case, it offers 1500VDC isolation, remote On/Off control, high efficiency up to 90%, and compliance with IEC60950-1 and UL safety standards. Operating from -40°C to 105°C, it includes optional heatsink and is suitable for demanding power distribution environments.
XP POWER JSK5024S24 DC Power Supply Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 8V to 36V DC
- Output Voltage: 3.3V, 5V, 12V, 15V, 24VDC (models vary)
- Output Current: Dependent on model, up to 4A
- Efficiency: Up to 90%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -50°C to +125°C
- Humidity: 96% RH non-condensing
- Dimensions: 2.00 x 1.00 x 0.43 inches
- Weight: approximately 0.066 lbs
- Input Surge Voltage: up to 50V across models
- Remote On/Off: Yes
- Certifications: UL60950-1, UL62368-1, IEC safety standards
- Thermal Protection: Yes, with derating at high temperatures
- Isolation Resistance: 1 MΩ at 500VDC
- Switching Frequency: approximately 285-320 kHz
- Mechanical Case: Six-sided metal casing
- Optional Heatsink: Available
- External Filtering: Required for Class A emission compliance
Buy the XP Power JSK5024S24 – Reliable Industrial Power Supply for Power Management
Purchase the XP Power JSK50 series DC power supply online today and secure a reliable, high-efficiency power source suitable for industrial and power management applications. With a compact 2 x 1-inch metal case, 50 Watts of output, wide input voltage range, and optional heatsink, this power supply guarantees steady performance across temperatures from -40°C to 105°C. Certified to IEC and UL safety standards, it features remote On/Off control, 1500VDC isolation, and high power density—ideal for demanding industrial environments. Order now for fast delivery and dependable operation.
Order your XP Power JSK5024S24 series high-density power supply today and ensure your industrial projects have dependable and efficient power solutions.
