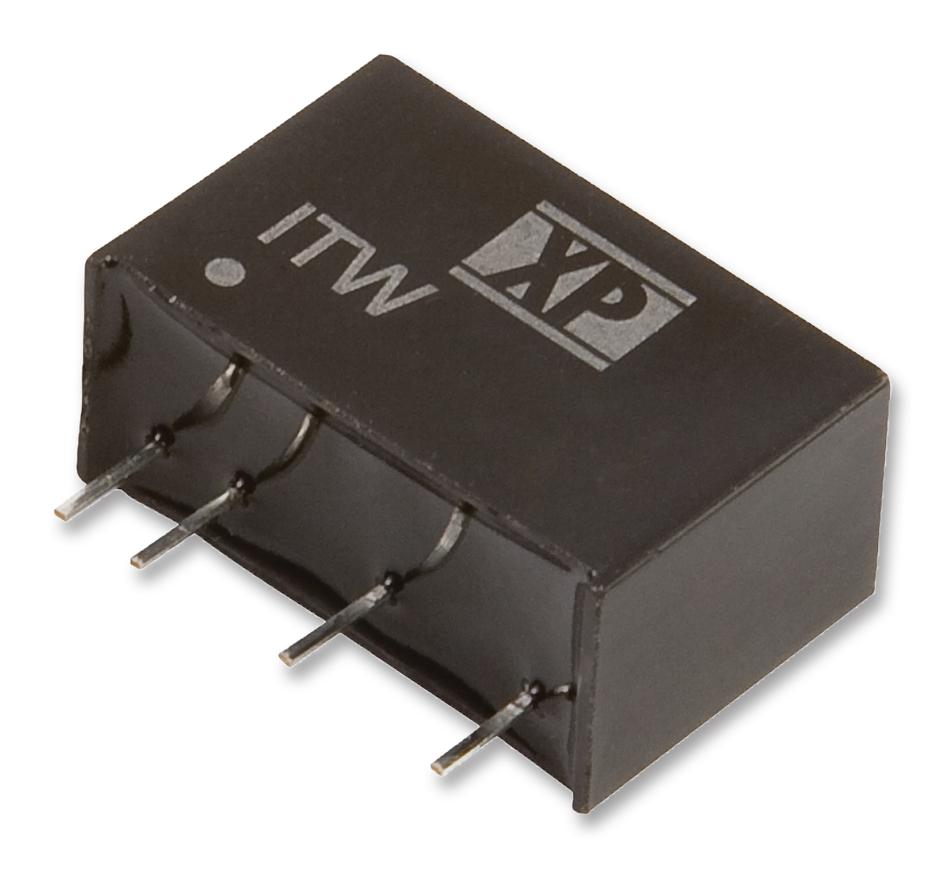

XP POWER ITW0524SA DC-DC Converter
This 1 Watt DC-DC converter offers a compact, fully regulated, and fully isolated power supply solution suitable for industrial, automation, and control applications. It supports a 2:1 input voltage range and is approved for ITE safety standards, operating reliably from -40 °C to +105 °C. Its design includes single and dual outputs, 1500 VDC isolation, no minimum load requirement, and a three-year warranty, ensuring high performance, safety, and durability in demanding environments.
XP POWER ITW0524SA DC-DC Converter Specifications:
- Input Voltage Range: 9-18V, 36-75V, 48V typical
- Output Voltage: 5V, 12V, 15V, 24V with regulated outputs
- Output Current: Up to 254 mA depending on model
- Isolation: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Efficiency: 76% to 81% depending on model
- Protection: No minimum load required, short circuit auto recovery
- Physical Dimensions: 0.67 x 0.43 x 0.30 inches (17.0 x 11.0 x 7.6 mm)
- Compliance: ITE safety approval, UL60950-1, UL62368-1
- Switching Frequency: 150-550 kHz
- Isolation Resistance: 10 MΩ
- Max Capacitive Load: 470 μF to 2470 μF depending on model
- Temperature Coefficient: 0.02%/°C
- Weight: 0.0067 lbs (8.0 g)
- Cooling: Natural convection, derate at 105°C case temperature
Buy the Toya Series DC-DC Converter: 1 Watt, 1500 VDC Isolation, 9-75V Input, 5V/12V/15V/24V Output
Purchase the Toya Series 1 Watt DC-DC Converter online today and benefit from a highly efficient, fully isolated power module with a 1500 VDC isolation rating. Its wide input voltage range from 9V to 75V, operation from -40°C to +105°C, and no minimum load requirement make it ideal for industrial, automation, and control systems. Backed by a three-year warranty, this compact converter guarantees safety, durability, and reliable performance in demanding environments. Order now and ensure seamless power conversion for your project.
Buy Toya DC-DC Converter now and experience unmatched reliability and performance. Enjoy a compact design with wide input range, high efficiency, and 1500 VDC isolation for industrial and control applications.
Frequently Asked Questions
Where can I buy XP POWER ITW0524SA?
You can click on the BUY or RFQ button to purchase ITW0524SA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITW0524SA?
You can download the ITW0524SA datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITW0524SA?
XP POWER
