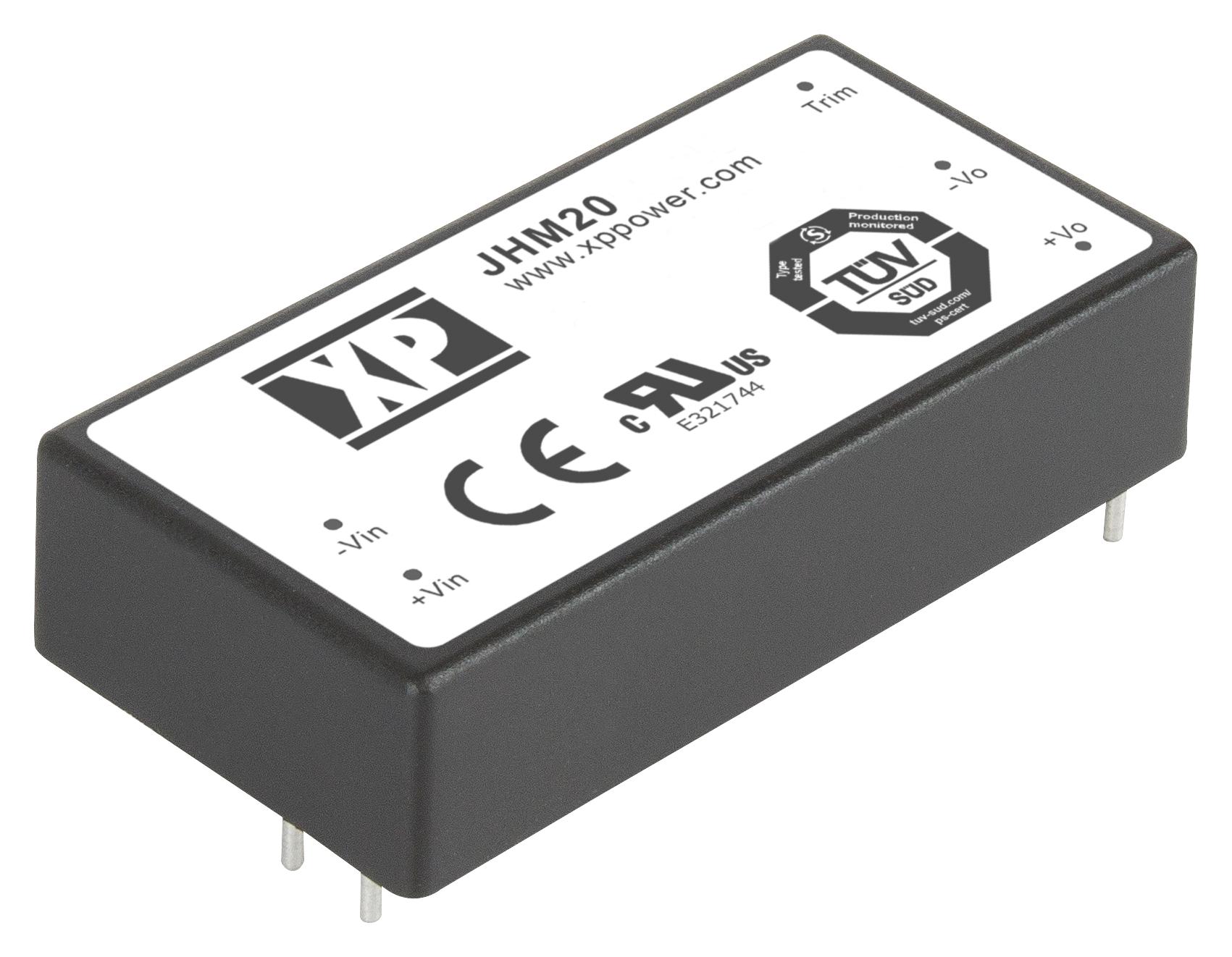

XP POWER JHM2048D15 Medical Power Module
The JHM20 series of DC-DC modules offers a compact and reliable power solution suitable for medical applications. These modules provide regulated single and dual outputs ranging from 5V to 30V DC, with single outputs featuring ±10% trimming. They support a 2:1 input voltage range and have a 2 x 1-inch footprint for easy PCB mounting. Certified to international medical safety standards, these modules feature reinforced isolation of 4kVAC, 2 times MOPP at 250VAC working voltage, and a very low patient leakage current of 2.5 microamperes. They are compliant with IEC60601-1, 3rd Edition, including risk management, and meet EN55011 Class A emission levels without requiring external components.
XP POWER JHM2048D15 Medical Power Module Specifications:
- Input Voltage Range: 9-75 VDC
- Output Voltage Range: 5-30 VDC
- Maximum Output Current: 3500 mA
- Efficiency: 88%
- Isolation: 4kVAC, 2x MOPP at 250VAC working voltage
- Leakage Current: 2.5 microamperes
- Operating Temperature: -40°C to +80°C
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Humidity: 5-95% RH non-condensing
- Cooling: Natural convection
- Certification: IEC60601-1, EN55011 Class A, UL, CSA, TUV
- Switching Frequency: 250 kHz
- Soldering Profile: Peak temperature 260°C with controlled ramp-up
- Case Material: UL94V-0 certified black plastic
- Pin Material: Solder coated copper
- Potting Material: Silicone (UL94V-0 rated)
Buy the XP Power Series DC-DC Converter: JHM2048D15
Order the XP Power JHM2048D15 today and experience a compact, highly reliable medical power module that ensures safety, efficiency, and low patient leakage current. Designed to meet IEC60601-1 standards, it features reinforced isolation, adjustable output voltage, and robust certification for medical applications. Perfect for compact medical devices requiring regulated power with low noise and high efficiency. Buy online now to secure reliable power supply for your critical healthcare equipment, backed by a 3-year warranty and international safety approval.
Get XP Power JHM2048D15 today—built for medical-grade reliability, low leakage, and international safety standards.
