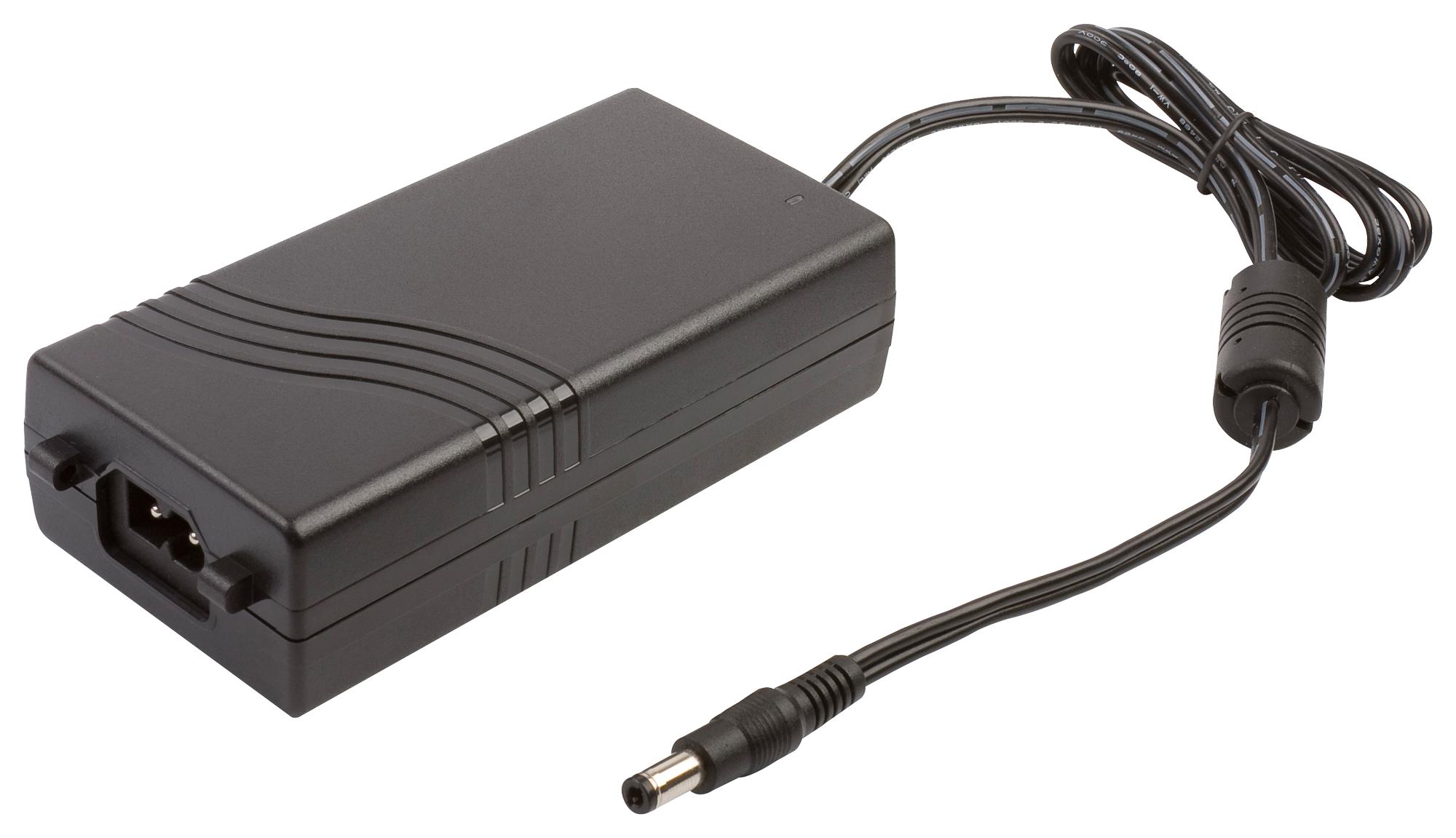

XP POWER AKM45US09C2 Medical Power Supply
The AKM45 series consists of 45W convection-cooled AC to DC power supplies designed for versatile applications. These desktop adapters meet stringent medical, home healthcare, and IT safety standards, including UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, ANSI/AAMI ES 60601-1, IEC 60601-1, IEC 60950-1, and CE certifications. They feature an ingress protection rating of IP22, operate over an input voltage range of 80 to 264VAC, and are available in Class I and Class II versions. Compliant with energy efficiency level VI and EU standards, they incorporate short circuit protection with auto recovery, operate efficiently at a switching frequency of 24kHz to 70kHz, and are suitable for medical and industrial applications. The compact dimensions are 122.4 x 51.4 x 31.5 mm, with a 3-year warranty included.
XP POWER AKM45US09C2 Medical Power Supply Specifications:
- Input Voltage: 80 to 264VAC
- Input Frequency: 47 to 63 Hz
- Input Current: 1.3 A at 100VAC
- Inrush Current: 100 A
- No Load Power Consumption: 75 mW
- Output Power: 45W
- Output Voltages: 9V, 12V, 15V, 18V, 24V, 48V
- Output Currents: up to 4.5A
- Operating Temperature: 0°C to +60°C
- Dimensions: 122.4mm x 51.4mm x 31.5mm
- Efficiency: up to 91.2%
- Certifications: UL 62368-1, CSA, IEC 60601-1-11, EN60601-1-2, CE
- Ingress Protection: IP22
- Operating Altitude: up to 5000m
- Switching Frequency: 24kHz to 70kHz
- Warranty: 3 years
Buy the XP Power AKM45U03 – Reliable Medical Power Supply for Industrial Applications
Purchase the XP Power AKM45U03 online today to ensure reliable power for your medical or industrial applications. This high-performance, energy-efficient power supply offers excellent safety certifications, low no-load power consumption, and a compact design suitable for demanding environments. With a 3-year warranty, it guarantees long-term durability and compliance with international standards. Whether for healthcare devices, industrial automation, or IT infrastructure, buy online now and benefit from fast delivery, trusted quality, and technical support tailored to your needs.
Get XP Power AKM45U03 today—built for medical and industrial reliability with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy XP POWER AKM45US09C2?
You can click on the BUY or RFQ button to purchase AKM45US09C2 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AKM45US09C2?
You can download the AKM45US09C2 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AKM45US09C2?
XP POWER
