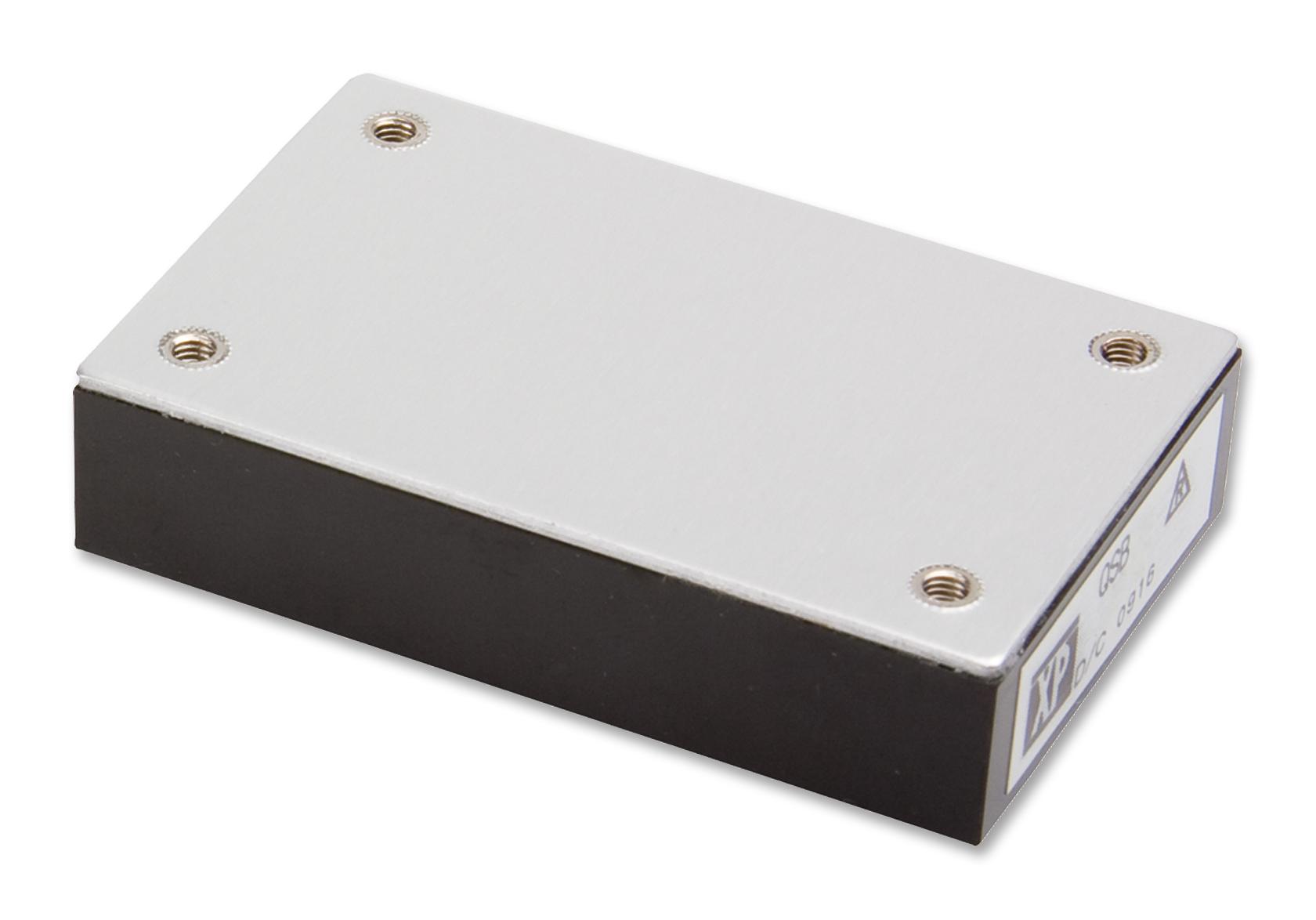

XP POWER QSB10024S15 industrial power supply
The QSB10024S15 is a high-density industrial power supply module designed for reliable voltage regulation in demanding environments. It features an input voltage range of 9-36 VDC and delivers a constant output of 15.0V at 10.00A, with excellent line and load regulation. The module operates efficiently with overvoltage, short circuit, thermal shutdown protections, and provides remote On/Off and remote sense capabilities. Suitable for industrial automation, control systems, and telecom applications, it offers a robust design with an MTBF of 484,000 hours and wide operating temperature from -40°C to +100°C.
XP POWER QSB10024S15 industrial power supply Specifications:
- Input Voltage Range: 9-36 VDC
- Input Current: 10.00A (full load)
- Output Voltage: 15.0V
- Output Current: 10.00A
- Line Regulation: 0.2% max
- Load Regulation: 0.2% max
- Ripple & Noise: 150 mV pk-pk
- Efficiency: 88% (typical)
- Isolation Voltage: 1500 VDC (Input to Output), 1500 VDC (Input to Case), 1500 VDC (Output to Case)
- Operating Temperature: -40°C to +100°C
- Temperature Coefficient: 0.03%/°C
- MTBF: 484,000 hours
- Protection: Overvoltage, Short Circuit, Thermal Shutdown
- Remote On/Off & Remote Sense: Yes
- Cooling: Base plate cooled
- Dimensions: 2.28 x 2.00 x 0.59 inches (57.9 x 50.8 x 15 mm)
- Weight: 0.25 lbs (114 g)
- Vibration & Shock: 3g (Vibration), 30g (Shock)
Buy the Industrial Power Supply 15V 10A – Reliable QSB10024S15 for Industrial Applications
Upgrade your industrial systems with the QSB10024S15 high-density power supply. Featuring wide input range, remote sensing, and multiple protections, it ensures consistent voltage output under harsh conditions. With a rugged design, high efficiency, and operational stability from -40°C to +100°C, this module is ideal for automation, control, and telecom applications. Purchase online today to benefit from fast delivery, high-quality assurance, and excellent customer support for your critical power needs in diverse industrial environments.
Buy QSB10024S15 now and experience unmatched reliability and performance in demanding industrial environments.
