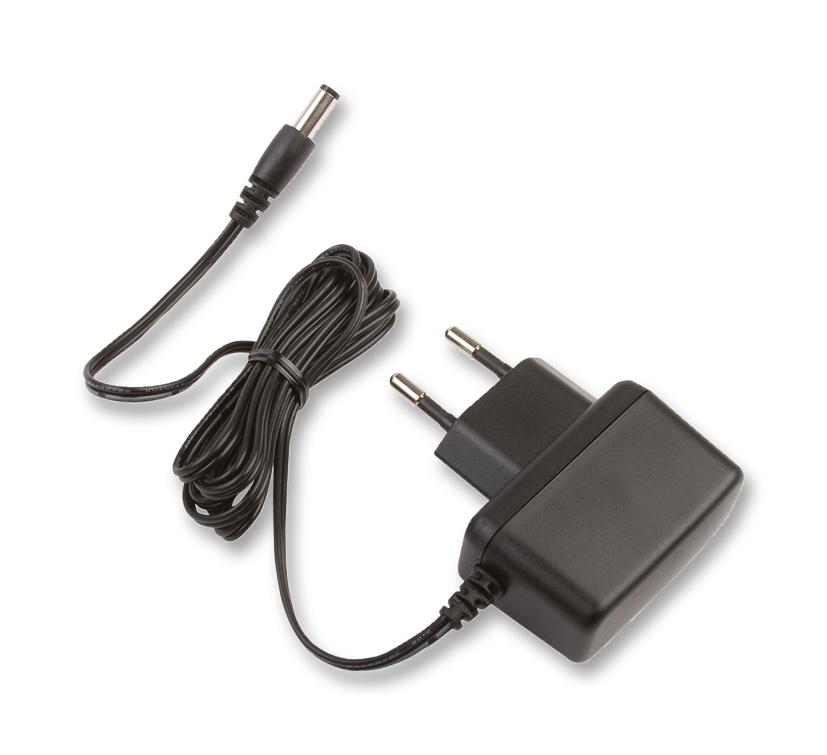

XP POWER VEL18US240EUJA AC-DC Power Supply
The VEL18 series consists of high-efficiency AC-DC power supplies designed for cost-sensitive applications with a power output of 18W. These units feature universal input voltage ranging from 90 to 264 VAC, low no-load power consumption, and comply with Energy Efficiency Level VI standards. They include fixed mains connectors, offer output voltages from 9V to 24V, and have a class II construction for safety. Suitable for various industrial, automation, and consumer electronics applications, these power supplies provide reliable performance with robust insulation and comprehensive safety certifications.
XP POWER VEL18US240EUJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.3 A at 230 VAC
- Inrush Current: 60 A at cold start 25°C
- Efficiency: 85% at 25%, 50%, 75%, 100% load
- Isolation: 3000 VAC input to output
- Output Voltages: 9V to 24V with various models
- Output Current: 750mA to 2000mA depending on model
- Total Regulation: 5%
- Start Up Delay: 4 seconds
- Operating Temperature: 0°C to +60°C
- Hold Up Time: 8 ms at full load, 100 VAC
- Switching Frequency: 24-70 kHz (variable)
- Protection: Continuous short circuit, auto-recovery
- Compliance: EN55022, EN61000-3-2/3, UL60950-1, TUV, CB
- Physical Dimensions: US: 3.54 x 1.34 x 1.87 inches, EU: 3.54 x 1.34 x 2.26 inches
- Weight: Approx. 0.19 pounds
Buy the Buy XP Power VEL18 Series AC-DC Power Supplies Part Number VEL18US240EUJA Online
Purchase the XP Power VEL18US240EUJA AC-DC power supply online today to benefit from high energy efficiency, reliable performance, and compliance with industry safety standards. This 18W unit features universal input voltage, multiple output options from 9V to 24V, fixed connectors, and comprehensive protection features. Ideal for industrial, automation, and consumer electronics, it guarantees consistent power with minimal no-load consumption, ensuring your projects run smoothly. Get yours now for fast delivery and dependable operation.
Order your XP Power VEL18US240EUJA series power supply today and ensure reliable power delivery with high efficiency for your critical applications.
Frequently Asked Questions
Where can I buy XP POWER VEL18US240EUJA?
You can click on the BUY or RFQ button to purchase VEL18US240EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US240EUJA?
You can download the VEL18US240EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US240EUJA?
XP POWER
