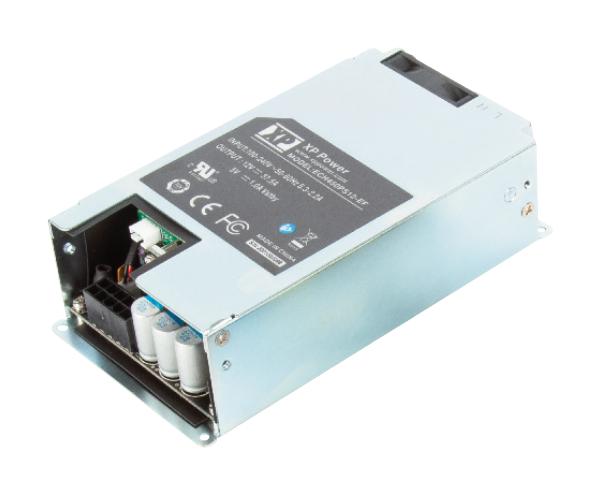

XP POWER ECH450PS12EF Power Supply
The ECH450 power supply delivers up to 450W in force-cooled and 250W in convection-cooled configurations, designed for medical and industrial applications. With a compact footprint of 3.0 by 5.0 inches, it supports BF applications, operates from 90 to 264 VAC, and features high efficiency up to 94%. It includes 12V fan output, 5V standby, remote on/off, low leakage current, and safety approvals for medical standards. Suitable for demanding environments, it provides reliable power with low load consumption and comprehensive EMI filtering.
XP POWER ECH450PS12EF Power Supply Specifications:
- Output Power: 450W (force-cooled), 250W (convection-cooled)
- Input Voltage: 90-264 VAC
- Output Voltage: 12V (up to 375A), 5V standby, 12V fan
- Efficiency: Up to 94%
- Operating Temperature: -20°C to +70°C
- Dimensions: 3.0 x 5.0 x 1.42 inches (76.2 x 127.0 x 36.1 mm)
- Frequency: 50/60 Hz
- Power Factor: >0.9
- Leakage Current: Low, suitable for medical use
- Safety Approvals: Medical (IEC60601-1), ITE standards
- Protection Features: Fuses, overvoltage, overcurrent, short circuit
- Cooling: Forced air (over 250W), convection for lower power
Buy the Buy XP Power ECH450 Power Supply Part Number ECH450PS12EF Online
Order the XP Power ECH450 power supply online today for your medical and industrial needs. This compact 450W power source features high efficiency up to 94%, supports a wide input voltage range of 90-264VAC, and includes essential safety and protection features. Its small footprint of 3.0 by 5.0 inches makes it ideal for demanding environments, ensuring reliable operation with minimal energy loss. Perfect for BF applications, it offers remote on/off control, low leakage current, and certifications compliant with medical standards—build your system with confidence today.
Get XP Power ECH450PS12EF today—designed for medical and industrial applications with high efficiency and reliable power output.
