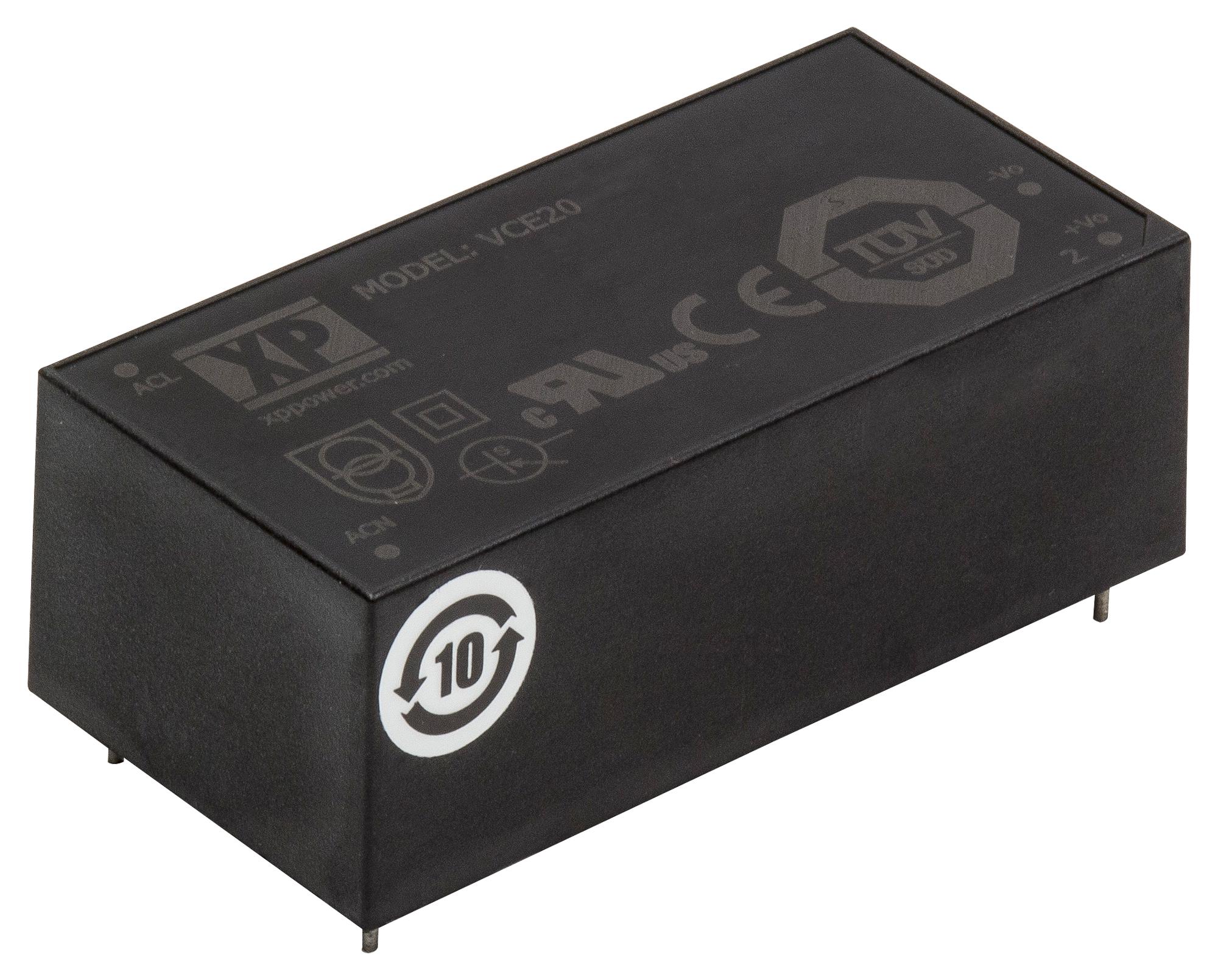

XP POWER VCE20US24 AC-DC Power Supply
The VCE20 series consists of open frame and encapsulated AC-DC power supplies with a single output, suitable for low-cost ITE, industrial, and domestic applications. These power supplies offer two mechanical options: open frame and PCB-mounted encapsulated designs. They are approved to global safety standards, including ITE and household certifications, and comply with Class B conducted and radiated emission standards. Input voltages range from 85 to 305VAC with single outputs from 3.3V to 48VDC, supporting easy system integration and versatile use in various applications.
XP POWER VCE20US24 AC-DC Power Supply Specifications:
- Input Voltage Range: 85 to 305 VAC
- Efficiency: 85%
- Isolation: Input to Output 3000 vac
- Output Voltage: 3.3 to 48 VDC
- Output Power: 20 W per model
- Dimensions: 66.0 x 33.0 x 23.4 mm for VCE20, 63.5 x 30.5 x 21.8 mm for VCE20-P
- Operating Temperature: -25°C to +70°C
- Cooling: Convection-cooled
- Safety Certifications: IEC62368-1, IEC60335-1, UL62368-1
- EMC Compliance: EN55035 Level B, EN61000-3-2, EN61000-3-3
- Protection: Overvoltage, overcurrent, short circuit
- Switching Frequency: 5 to 65 kHz
- Weight: 40 g for open frame, 90 g for encapsulated models
Buy the XP Power Series AC-DC Power Supplies: VCE20US24
Purchase the XP Power VCE20US24 AC-DC power supply online today and enjoy a highly reliable power source with optimal efficiency, compact design, and robust safety features. Designed for low-cost industrial, domestic, and electronic applications, this power supply supports input voltage from 85 to 305VAC and provides a 24VDC output at 0.834A, delivering 20W of power. Its convection cooling, wide temperature range, and compliance with international safety and EMC standards ensure seamless integration into various systems, making it an ideal solution for reliable energy needs.
Buy XP Power VCE20US24 power supplies now and experience reliable, efficient, and safe power conversion for industrial, home, and electronic systems.
Frequently Asked Questions
Where can I buy XP POWER VCE20US24?
You can click on the BUY or RFQ button to purchase VCE20US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US24?
You can download the VCE20US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US24?
XP POWER
