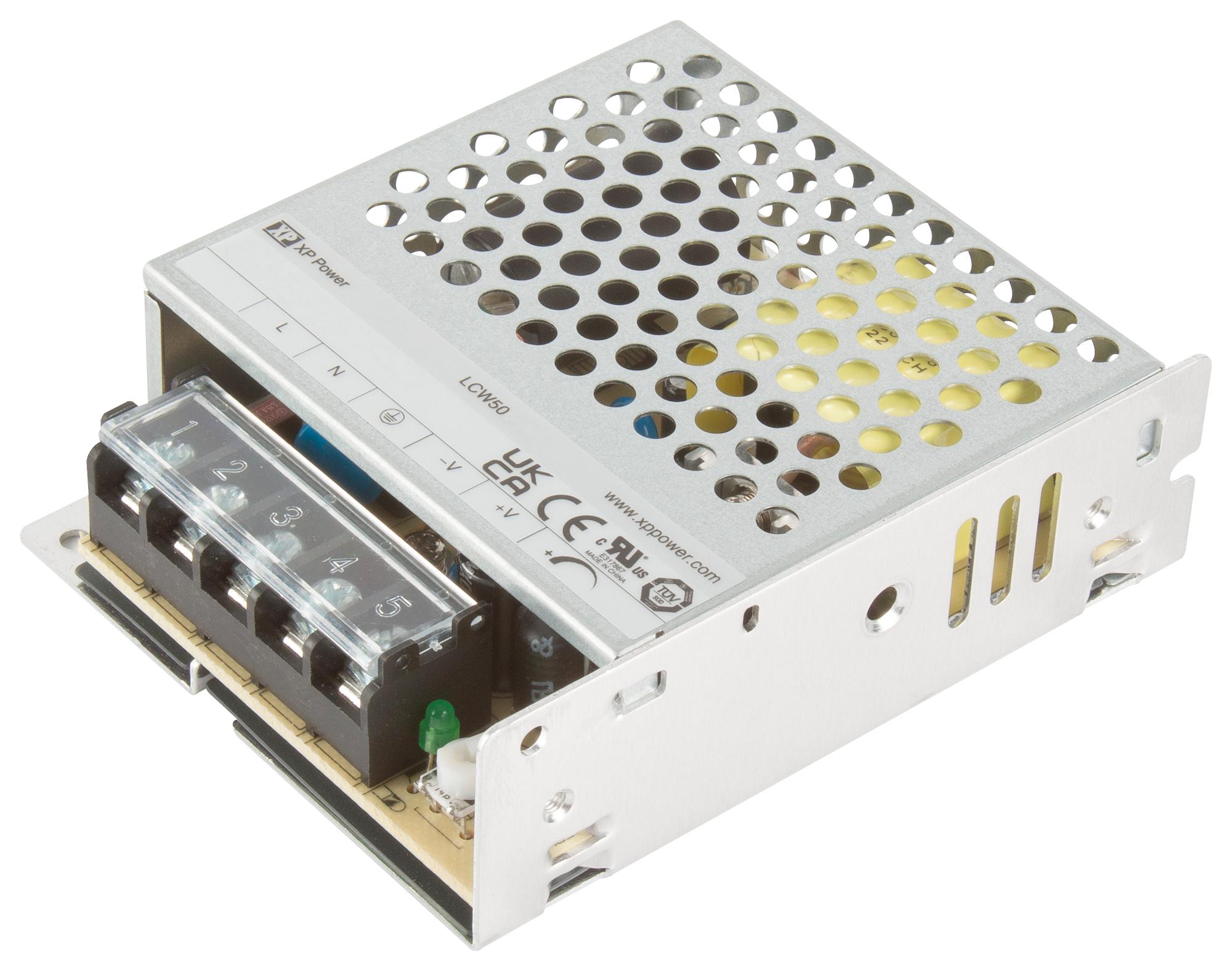

XP POWER LCW50US05 Power Supply
The LCW50 series regulated AC to DC power supplies are convection cooled units designed for reliable power conversion in industrial electronics, household, and commercial applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage within ±10%, and a switching frequency of 65 kHz, ensuring efficient performance with an efficiency of 83%. These 50W power supplies include protections such as short circuit, overcurrent, overvoltage, and overload safeguards. Certifications include UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA. The units come with an integrated connector cover, conformal coating option, and are housed in an aluminum chassis with a vented galvanized steel cover, operating reliably within a temperature range of -30°C to +70°C. They are suitable for auxiliary power, security, lighting control, smart home, office systems, and ticketing or vending equipment. Backed by a 3-year warranty, dimensions are 3.898 inches by 3.228 inches by 1.181 inches (99 x 82 x 30 mm).
XP POWER LCW50US05 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Input Frequency: 50/60 Hz
- Efficiency: 83%
- Maximum Power: 50W
- Output Voltage Adjustment: ±10%
- Output Power: 50W
- Output Voltage: from 5.0V to 48VDC (various models)
- Ripple & Noise: 80-240mV (depending on model)
- Protections: Short circuit, overcurrent, overvoltage, overload
- Operating Temperature: -30°C to +70°C
- Cooling: Natural convection
- Housing: Aluminum chassis with galvanized steel cover
- Conformal Coating: Optional
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Dimensions: 3.898” x 3.228” x 1.181” (99 x 82 x 30 mm)
Buy the Buy XP Power LCW50 Series Part Number LCW50US05 Online
Enhance your projects with the XP Power LCW50 Series power supply. Designed for reliable operation in industrial, household, and commercial environments, this convection-cooled unit offers a wide input voltage of 85-305VAC, adjustable output voltage within ±10%, and high efficiency up to 83%. Protections include short circuit, overcurrent, overvoltage, and overload. Certification includes UL, CE, UKCA. Compact and durable, it operates at -30°C to +70°C, backed by a 3-year warranty. Perfect for automation, security, lighting, and vending systems.
Order your XP Power LCW50 Series power supply today and ensure reliable, efficient power conversion for your industrial or household applications.
Frequently Asked Questions
Where can I buy XP POWER LCW50US05?
You can click on the BUY or RFQ button to purchase LCW50US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW50US05?
You can download the LCW50US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW50US05?
XP POWER
