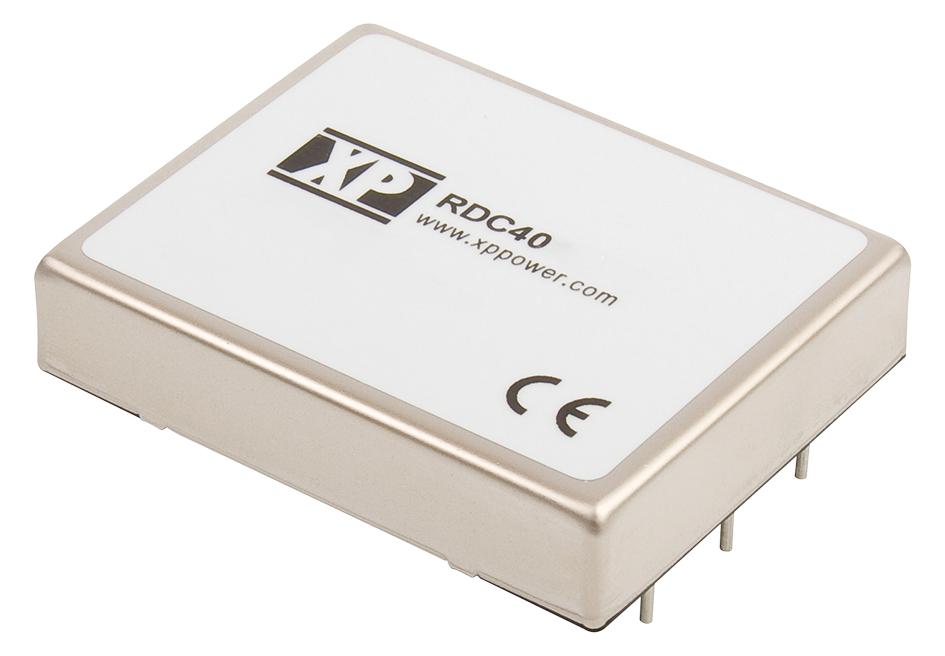

XP POWER RDC4072S05 Railway DC-DC Converter
The RDC40 series of 40W DC-DC converters are specifically designed for railway applications, complying with EN50121-3-2 EMC standards for rolling stock. They feature two input voltage ranges: 36V to 140VDC for 72VDC nominal models and 55V to 176VDC for 110VDC nominal models. These converters support both single and dual output configurations, with a trimming pin allowing ±10% adjustment for single output models. They utilize convection cooling and operate across a wide temperature range from -40°C to 85°C, with a maximum case temperature of 105°C. Additional features include 1500VAC basic isolation, high efficiency up to 90%, remote On/Off control, and compliance with EN50155 standards.
XP POWER RDC4072S05 Railway DC-DC Converter Specifications:
- Power: 40W
- Input Voltage (nominal): 72VDC or 110VDC
- Input Voltage Range: 36-140VDC for 72V models, 55-176VDC for 110V models
- Output Power: Single and dual output options
- Output Voltage: Various (e.g., 3.3V, 5V, 12V, 15V, 24V, 36V, 72V)
- Output Current: Up to 800A depending on model
- Efficiency: Up to 90%
- Isolation: 1500 VAC input to output
- Operating Temperature: -40°C to +85°C
- Case Temperature Limit: 105°C
- Cooling: Convection cooled
- Remote On/Off: Yes
- Standards: EN50155, EN50121-3-2 EMC
- Dimensions: 2.00 x 1.60 x 0.4 inches (50.8 x 40.6 x 10.16 mm)
- Weight: 0.105 lbs (48 g)
- Switching Frequency: 270 kHz
- Safety & Compatibility: CE, UKCA, MIL HDBK-217F MTBF 320,000 hours
Buy the Toya RDC40 – Reliable Railway Power Supply for Industrial Applications
Purchase the Toya RDC40 series railway DC-DC converter online today and experience dependable power with high efficiency, robust isolation, and wide temperature operation. Designed for industrial and railway applications, these converters ensure seamless operation across various challenging environments. With supporting standards like EN50155 and EN50121-3-2, they deliver reliable performance, remote On/Off control, and excellent durability. Secure your power conversion needs now for consistent performance and compliance with global safety standards, all available for quick, direct online purchase.
Buy Toya RDC40 power supplies now and ensure reliable, efficient railway power conversion with high isolation and compliance with industry standards.
Frequently Asked Questions
Where can I buy XP POWER RDC4072S05?
You can click on the BUY or RFQ button to purchase RDC4072S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDC4072S05?
You can download the RDC4072S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDC4072S05?
XP POWER
