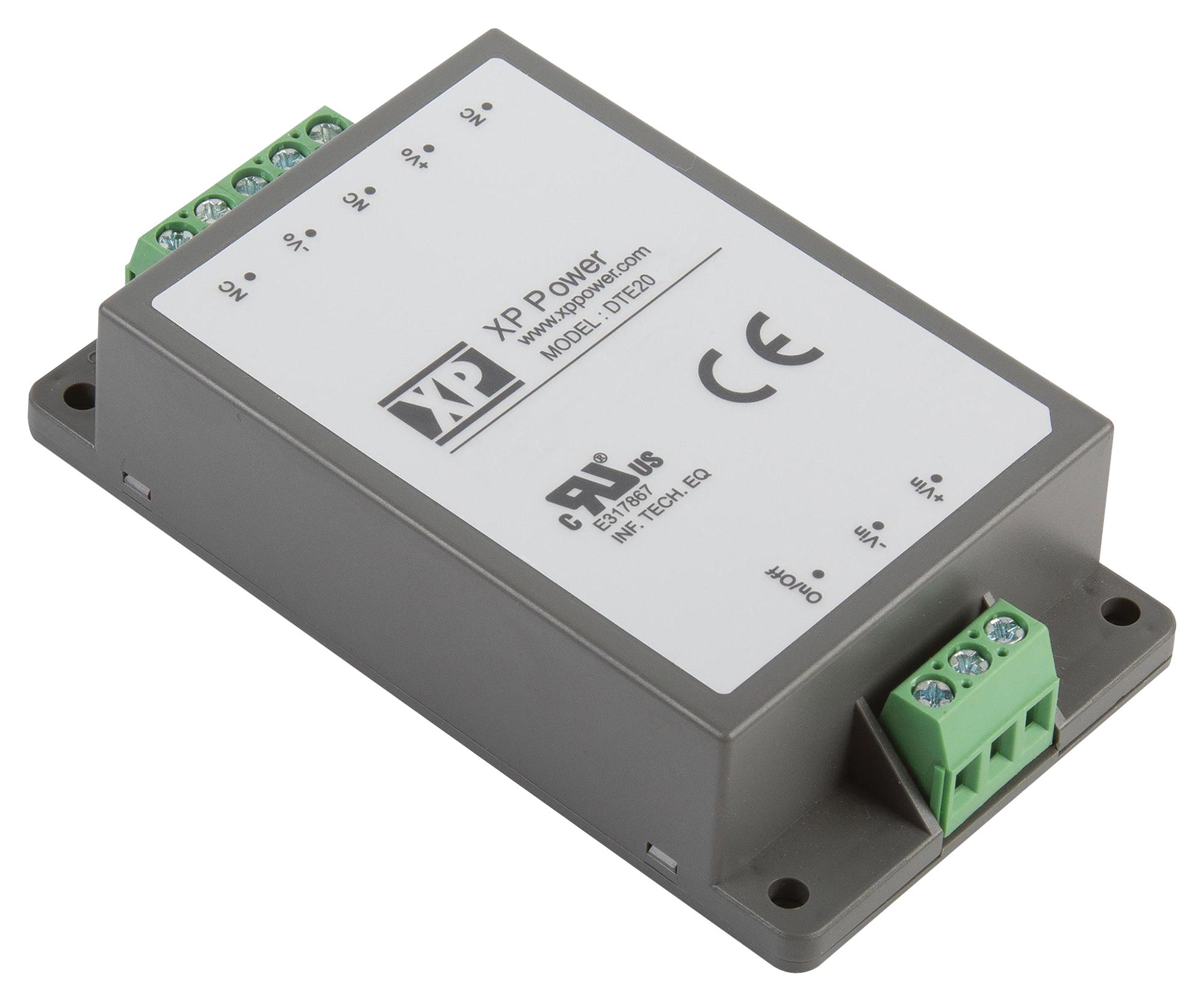

XP POWER DTE2048S12 DC-DC Converter
The DTE20 series from XP Power comprises encapsulated 20W DC-DC converters designed for industrial and commercial applications. They offer regulated output from 24VDC to 48VDC with wide 4:1 input ranges, easy screw terminal connections, and a remote on/off feature that minimizes standby current. Fully protected against input undervoltage, short circuits, and overloads, these rugged modules operate from -40°C to +95°C, with full power up to 80°C. They feature 2.5kVDC isolation, an LED power indicator, and are safety approved under IEC/UL/cUL standards, ideal for reliable power conversion needs.
XP POWER DTE2048S12 DC-DC Converter Specifications:
- Input Voltage Range: 24VDC nominal, 78-75VDC; 48VDC nominal, 75-78VDC
- Output Voltage: 12V, 48V models available, with current up to 4.0A
- Efficiency: Up to 90%
- Isolation: 2.5kVDC input/output
- Operating Temperature: -40°C to +95°C, full power up to 80°C
- Protection: Input undervoltage, short circuit, overload, overvoltage
- Dimensions: 3.78 x 2.13 x 0.92 inches (96 x 54 x 23.3 mm)
- Mechanical Mount: Chassis mount, optional DIN rail version
- Weight: 0.214 lbs (107 g); -D version: 0.332 lbs (166 g)
- Safety Approvals: IEC/UL/cUL 62368-1, EN55032 class A
- Remote ON/OFF: Logic high to turn on, low to turn off
- Input/Output Capacitance: 2200 pF
- MTBF: 750,000 hours (MIL-HDBK-217F, +25°C)
Buy the Buy XP Power DTE20 Series Part Number DTE2048S12 Online
Discover the reliable DTE20 series DC-DC converter from XP Power, offering 20W regulated output with wide input range, high isolation, and robust protection features. Designed for industrial and commercial applications, it features remote on/off, efficiency up to 90%, and operates from -40°C to +95°C, ensuring excellent performance across diverse environments. Easy screw terminal connection, safety compliant under IEC/UL/cUL standards, and available in chassis or optional DIN rail mount, making it the ideal power conversion solution for demanding projects.
Get XP Power DTE2048S12 today—built for precision, high efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTE2048S12?
You can click on the BUY or RFQ button to purchase DTE2048S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE2048S12?
You can download the DTE2048S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE2048S12?
XP POWER
