XP POWER IMM0105S05 medical power module
The IMMO1 Series DC-DC Converter by XP Power is a compact 1-watt industrial power module designed for medical applications and high-reliability environments. It features worldwide medical approvals, a very low patient leakage current of 2 microamperes, and a SIP7 package for easy integration. Operating over -20°C to +100°C with full load at 60°C ambient, it provides 1500 VAC isolation with 1 MOPP. Its robust design ensures high MTBF of 1 million hours and includes optional remote On/Off control for flexible system integration. Suitable for low voltage, high-isolation needs in medical and industrial electronics.
XP POWER IMM0105S05 medical power module Specifications:
- Power Output: 1 Watt
- Input Voltage Range: 3V3, 5V, 12V, 15V, 45-90V, 9V-18V, 24V, 28V (varies by model)
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 30V, 16V, 5V (depending on model)
- Output Current: up to 337 mA, 75 mA at multiple voltage levels
- Isolation Voltage: 1500 VAC, 1 MOPP
- Leakage Current: 2 microamperes (patient leakage)
- Operating Temperature: -20°C to +100°C, full load at 60°C ambient
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Weight: ~3.6 grams
- Isolation Capacitance: 27 pF
- Frequency: 175 kHz to 7 MHz, may enter burst mode at light load
- Efficiency: Approximately 78%
- MTBF: 1 million hours
- Safety Standards: ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1, EN60601-1
- Compliance: Medical device EMC standards, radiated and conducted immunity
- Protection: Continuous short circuit fold-back with auto recovery, overload protection at 190-310% of nominal current

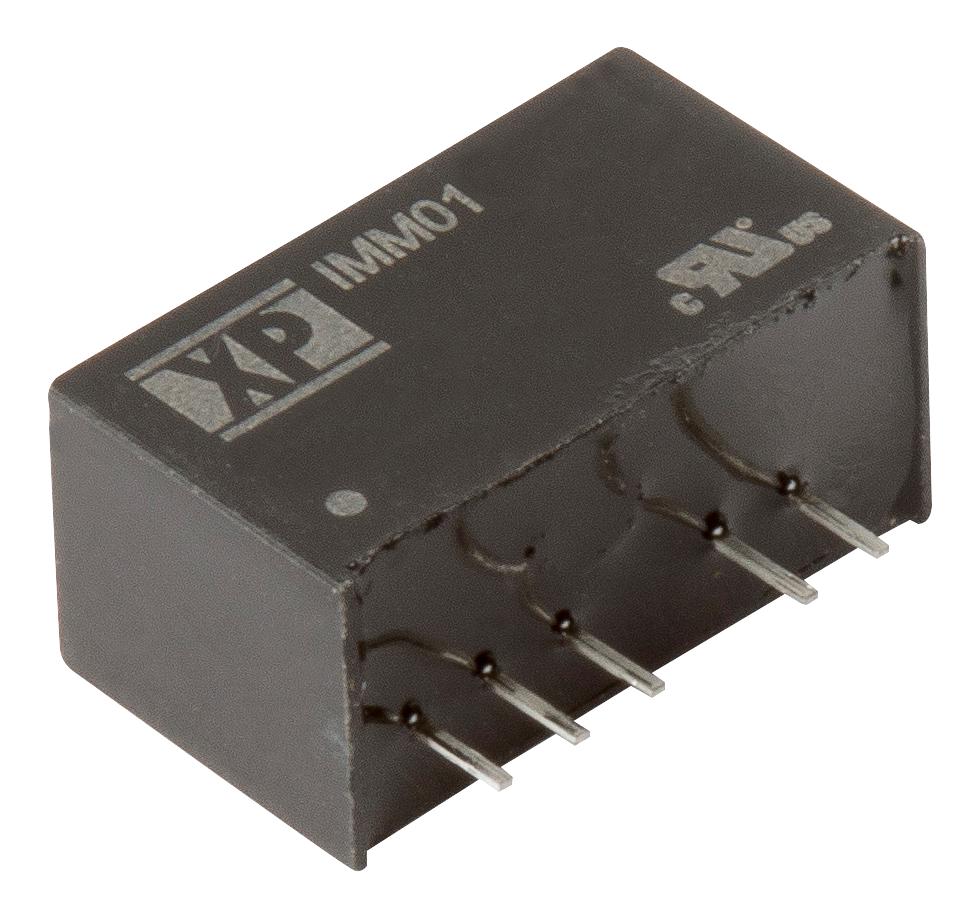

Buy the Buy XP Power DC-DC Converter Part Number IMM0105S05 Online
Enhance your medical or industrial systems with this high-reliability, compact 1-watt DC-DC converter. It features wide temperature operation, 1500 VAC isolation, low patient leakage current, and flexible input/output options. Perfect for medical environments demanding high safety standards and durability. Easy to integrate with remote On/Off capability, ensuring operational flexibility. Built for long-term use, it offers excellent efficiency and low electromagnetic interference, making it an ideal choice for critical applications requiring safe, stable power conversion and compliance with international safety standards.
Buy XP Power IMMO1 series DC-DC converter with low leakage current and high reliability now and experience safe, compact power solutions for medical and industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IMM0105S05?
You can click on the BUY or RFQ button to purchase IMM0105S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0105S05?
You can download the IMM0105S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0105S05?
XP POWER
