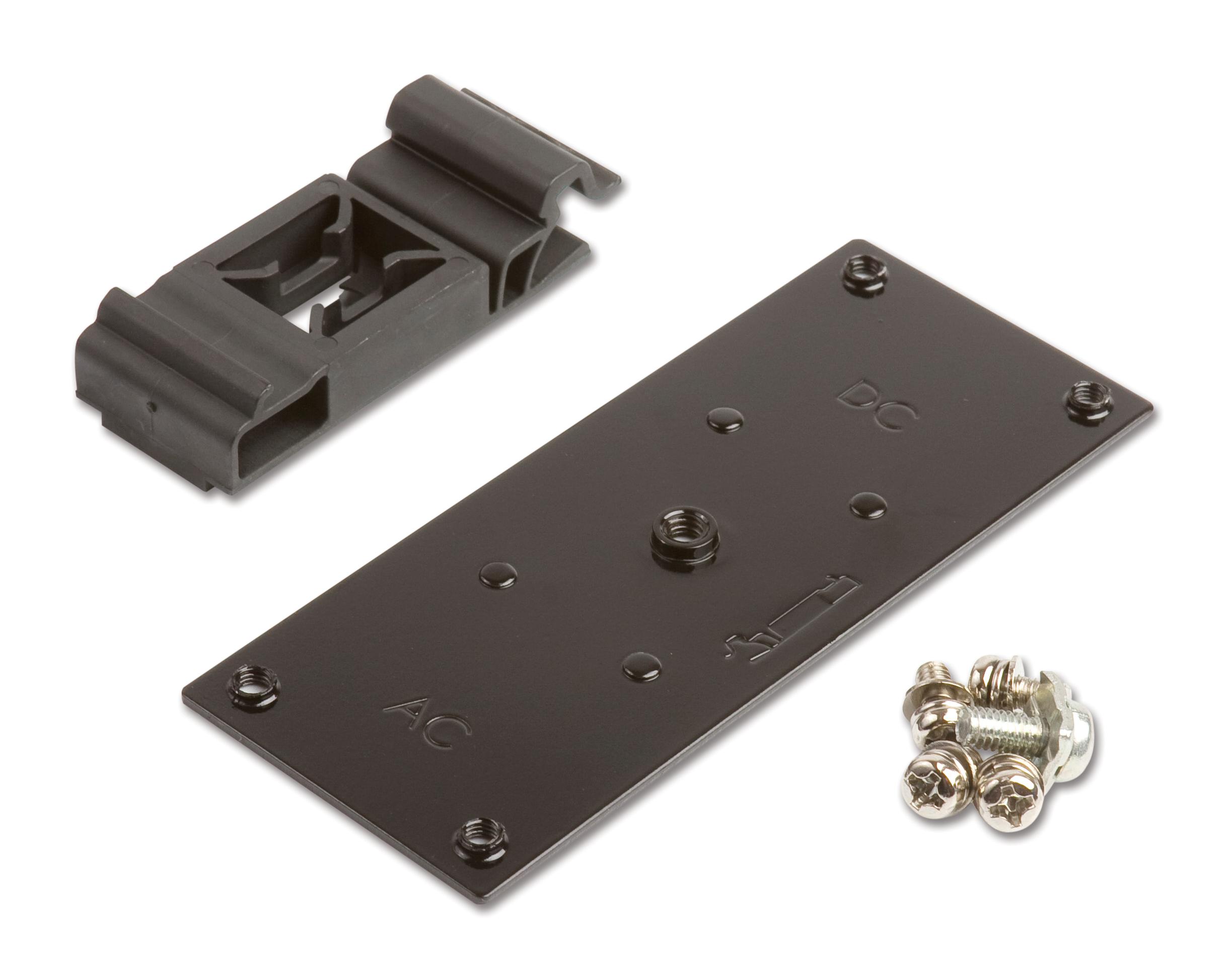

XP POWER ECE60DINCLIP Power Supply Module
The ECE60 series offers compact, encapsulated AC-DC power modules delivering 60W power with high efficiency from 79% to 89%. Available in PCB and chassis mount versions, these modules support output voltages from 3.3V to 48V and operate reliably across a wide temperature range of -40°C to +70°C. They feature peak load capability up to 130% for 30 seconds, low no-load power consumption below 0.3W, and meet international safety and EMI standards, making them ideal for industrial and embedded applications.
XP POWER ECE60DINCLIP Power Supply Module Specifications:
- Input Voltage Range: 85-264 VAC
- Input Power No Load: <0.3 W (12-36V versions), <0.5 W (3.3-48V versions)
- Efficiency: 79% to 89% depending on model
- Operating Temperature: -40°C to +70°C (derates linearly above +50°C)
- Peak Load Capability: Up to 130% for 30 seconds
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V, 36V, 48V
- Output Currents: Ranging from 1.25A to 10A depending on voltage
- Dimensions: ECE60: 3.60 x 1.50 x 1.10 inches; ECE60-S: 4.45 x 1.57 x 1.12 inches
- Isolation: 3000 VAC input to output
- Safety & EMI Compliance: EN61000-4-2, EN61000-4-3, UL 62368-1, CE, UKCA
- Cooling Method: Convection-cooled
- Vibration & Humidity: 2 g, 10 Hz to 500 Hz; 96% RH non-condensing
- MTBF: 3300 K hours
Buy the XP Power ECE60 – Reliable AC-DC Power Supplies for Industrial Applications
Secure your industrial projects with the compact and highly efficient power supply modules from XP Power. The ECE60 series offers 60W power output, peak load support up to 130%, and a wide operating temperature range from -40°C to +70°C. Designed for both PCB and chassis mount applications, these modules ensure reliable performance in demanding environments. With low no-load power consumption, high safety standards, and excellent EMI compliance, they are ideal for automation, embedded systems, and industrial control solutions. Order online today for fast delivery and optimal performance.
Buy XP Power ECE60 series power modules now and experience unmatched reliability and efficient power delivery for industrial and automation systems.
Frequently Asked Questions
Where can I buy XP POWER ECE60DINCLIP?
You can click on the BUY or RFQ button to purchase ECE60DINCLIP from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECE60DINCLIP?
You can download the ECE60DINCLIP datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECE60DINCLIP?
XP POWER
