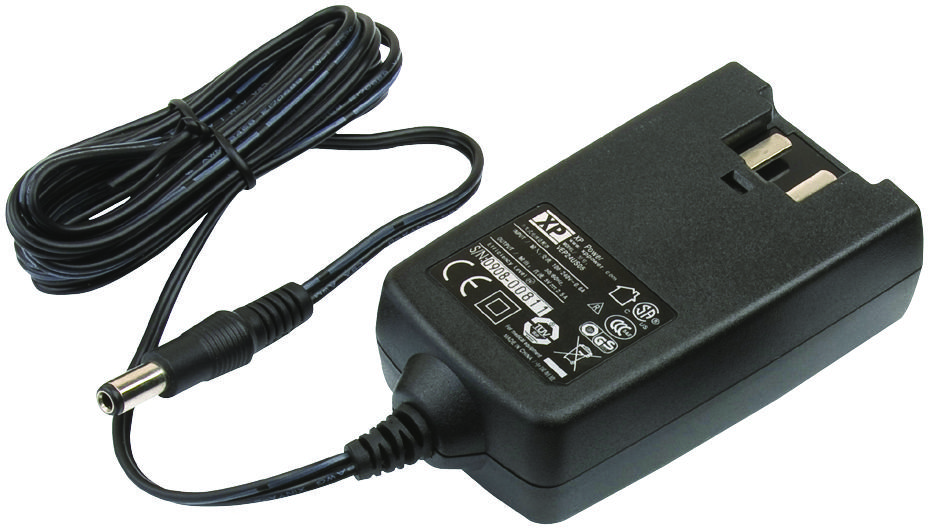

XP POWER VEP08US09 Medical and IT Power Supply
This power supply features third edition safety approvals for IT and medical applications, including CEC 2008 and EISA 2007 compliance. It offers interchangeable input connectors, a Class II construction for safety, and an affordable price point. The output is delivered via a 2.5mm plug, making it suitable for medical equipment and IT devices. With power options from 8W to 36W, it supports multiple voltage outputs, efficient operation, and compliance with safety and EMC standards. Its robust design ensures reliable performance in medical, industrial, and IT environments. The power supply maintains stability and safety under various operational conditions, ensuring device protection and consistent power delivery.
XP POWER VEP08US09 Medical and IT Power Supply Specifications:
- Input Voltage: 80-264 VAC (8 & 15W), 90-264 VAC (36W)
- Input Frequency: 47-63 Hz
- Input Current: 0.3 A to 0.9 A depending on power rating
- Power Factor: >0.5 at 90 VAC
- Efficiency: 77%-86% depending on model
- Output Voltage: From 5 V up to 28 V (varies by model)
- Output Power: 8W, 15W, 24W, 36W options available
- Initial Set Accuracy: 100-150 mV depending on model
- Start Up Delay: 2 seconds typical
- Hold Up Time: 20-50 ms depending on model
- Line Regulation: 5% maximum
- Load Regulation: 5% maximum
- Ripple & Noise: 100 mV typical
- Overvoltage Protection: Trip and restart (hiccup mode)
- Overload Protection: Trip and restart
- Short Circuit Protection: Yes
- Operating Temperature: 0°C to +40°C
- Cooling: Natural convection
- Operating Humidity: 5-95% RH, non-condensing
- Storage Temperature: -25°C to +70°C
- Certifications: EN60950-1, UL60950-1, IEC60950-1, EN60601-1, cUL, CSA
- Switching Frequency: 65-132 kHz depending on model
- MTBF: 150,000-250,000 hours depending on model
- Safety & EMC: Compliant with EN55022, EN61000-3-2, EN61000-3-3, EN61000-4 series, and other standards
- Physical: Cases made of PC Class 94V-0, approx. weights from 80 g to 260 g, dimensions vary by model
- Output Connector: 0.5.5 x 0.2.5 x 11.0 mm inner positive plug
Buy the Buy Power Supply Series VEP Part Number VEP08US09 Online
Secure your Power Supply Series VEP VEP08US09 today through our online store for fast, reliable delivery. Designed for medical and IT applications, this power supply ensures safe, efficient, and consistent power output with excellent safety certifications. It features interchangeable input connectors, robust construction, and compliance with global safety standards, making it ideal for a variety of sensitive electronic devices. Purchase now to experience dependable performance, easy installation, and exceptional value for your electronic projects and medical equipment needs.
Order your Power Supply Series VEP VEP08US09 today and ensure reliable power delivery for medical and IT equipment.
Frequently Asked Questions
Where can I buy XP POWER VEP08US09?
You can click on the BUY or RFQ button to purchase VEP08US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEP08US09?
You can download the VEP08US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEP08US09?
XP POWER
