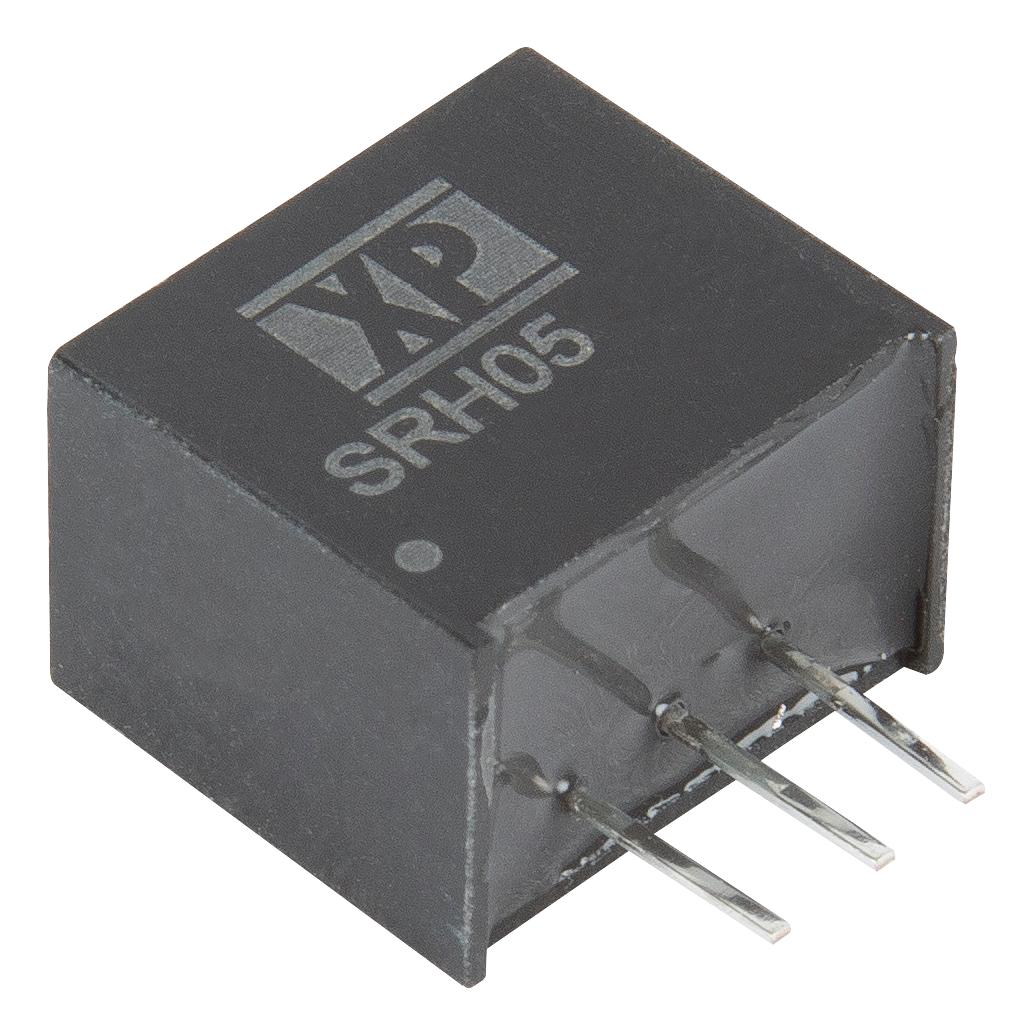

XP POWER SRH05S09 switching regulator
This 3-pin switching regulator in a SIP package is designed for industrial applications requiring a wide input voltage range up to 72 V. It provides an output voltage of 9.0V with 0.5A current capacity, high efficiency of up to 92%, and features such as continuous short circuit protection and a temperature range from -40°C to +85°C. Its compact dimensions of approximately 11.68 x 7.5 x 10.16 mm, low ripple, and EMI compliance make it ideal for power supply modules, automation, and control systems in demanding environments.
XP POWER SRH05S09 switching regulator Specifications:
- Input Voltage Range: 9-72V
- Output Voltage: 9.0V
- Output Current: 0.5A
- Efficiency: Up to 92%
- Dimensions: 11.68 x 7.5 x 10.16 mm (0.46 x 0.29 x 0.4 inches)
- Operating Temperature: -40°C to +85°C
- Case Material: Non-conductive black plastic UL94V-0
- Pin Material: Solder coated C5191R-H
- Switching Frequency: 120 - 800 kHz
- Ripple & Noise: 75 mV pk-pk
- Short Circuit Protection: Continuous with auto recovery
- Isolation: None (Non-isolated)
- Maximum Capacitive Load: Specified per model
- Input Surge Voltage: Up to 75 V for 100 ms
Buy the XP Power SRH05S09 – Reliable Switching Regulator for Industrial Applications
Get the XP Power SRH05S09 series switching regulator now available online for robust power management in demanding environments. With wide input voltage capacity from 9V to 72V, high efficiency of up to 92%, and a compact SIP package measuring 11.68 x 7.5 x 10.16 mm, this regulator is ideal for industrial power supplies, automation systems, and control modules. It features continuous short circuit protection, operates from -40°C to +85°C, and complies with electromagnetic emission standards, ensuring dependable performance and compliance in challenging conditions.
Order your XP Power SRH05S09 Series switching regulator today and ensure reliable power conversion for your industrial automation and control projects.
Frequently Asked Questions
Where can I buy XP POWER SRH05S09?
You can click on the BUY or RFQ button to purchase SRH05S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SRH05S09?
You can download the SRH05S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SRH05S09?
XP POWER
