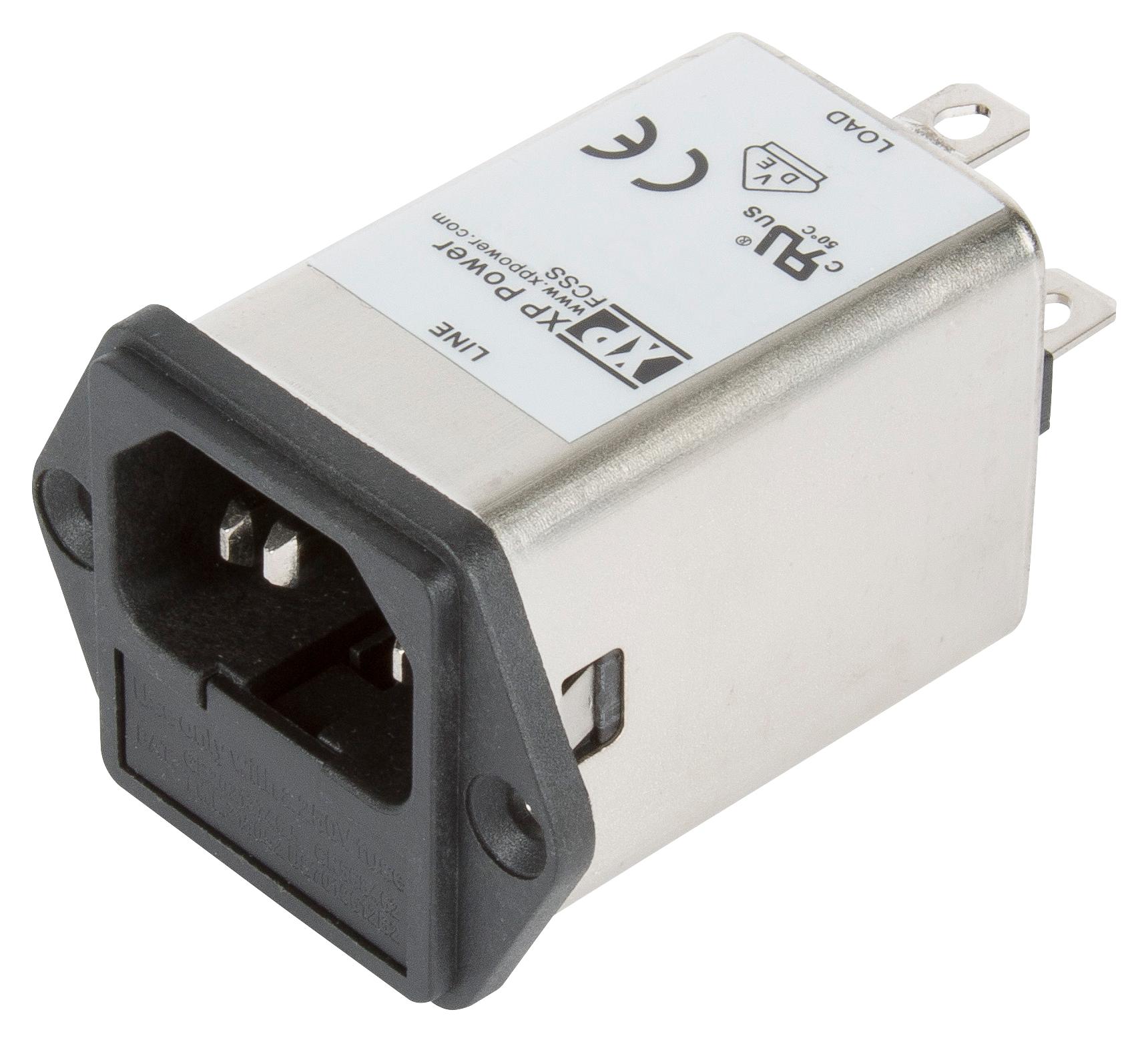

XP POWER FCSS06SFR Filtered Power Inlet
The FCSS series features an IEC 320-C14 filtered inlet with a front-accessible fuse holder, integrated with a mains EMI filter in a compact, shielded metal housing. Designed for mains-powered IT equipment, it provides excellent attenuation of electromagnetic interference from the mains and reduces internal emissions. Suitable for class I appliances, all models include a bleed resistor to discharge capacitors safely when power is disconnected. Operating from -40°C to +110°C, it supports various current ratings and features screw mounting, Faston terminals, and safety approvals including EN60939-2 and UL1283.
XP POWER FCSS06SFR Filtered Power Inlet Specifications:
- Rated Voltage: 250 VAG
- Input Frequency: 50/60 Hz, up to 400 Hz
- Rated Current: 1A, 3A, 6A, 10A
- Earth Leakage Current: 0.25 mA
- Temperature Operating Range: -40°C to +110°C, full power up to +50°C
- Safety Approvals: EN60939-2, UL1283, CE, UKCA
- Terminal Type: 6.3 x 0.8mm Faston
- Dimensions: Compact design suitable for panel mounting
- Housing Material: Shielded metal body
- Includes: Bleed resistor for capacitor discharge, fuse holder (fuse not supplied)
- Filtration: Common mode and differential mode EMI filtering
- Application: Mains power input for electronic and IT equipment, class I appliances
- Compliance: Meets safety and EMI standards, suitable for industrial and professional use
Buy the XP Power FCSS06SFR – Reliable EMI Filtered Inlet for Industrial Applications
Order the XP Power Filtered Power Inlet today for reliable EMI filtering and safe power input for your electronic systems. Designed with a shielded metal body and integrated fuse holder, this compact and robust component supports up to 6A, ensuring optimal performance across a wide temperature range from -40°C to +110°C. Its easy screw mounting, Faston terminals, and compliance with safety standards like EN60939-2 and UL1283 make it ideal for professional and industrial applications. Enhance your equipment’s electromagnetic compatibility with this high-quality, durable inlet designed for long-term reliability.
Get XP Power FCSS06SFR today—built for precision, safety, and long-lasting durability for your industrial equipment.
