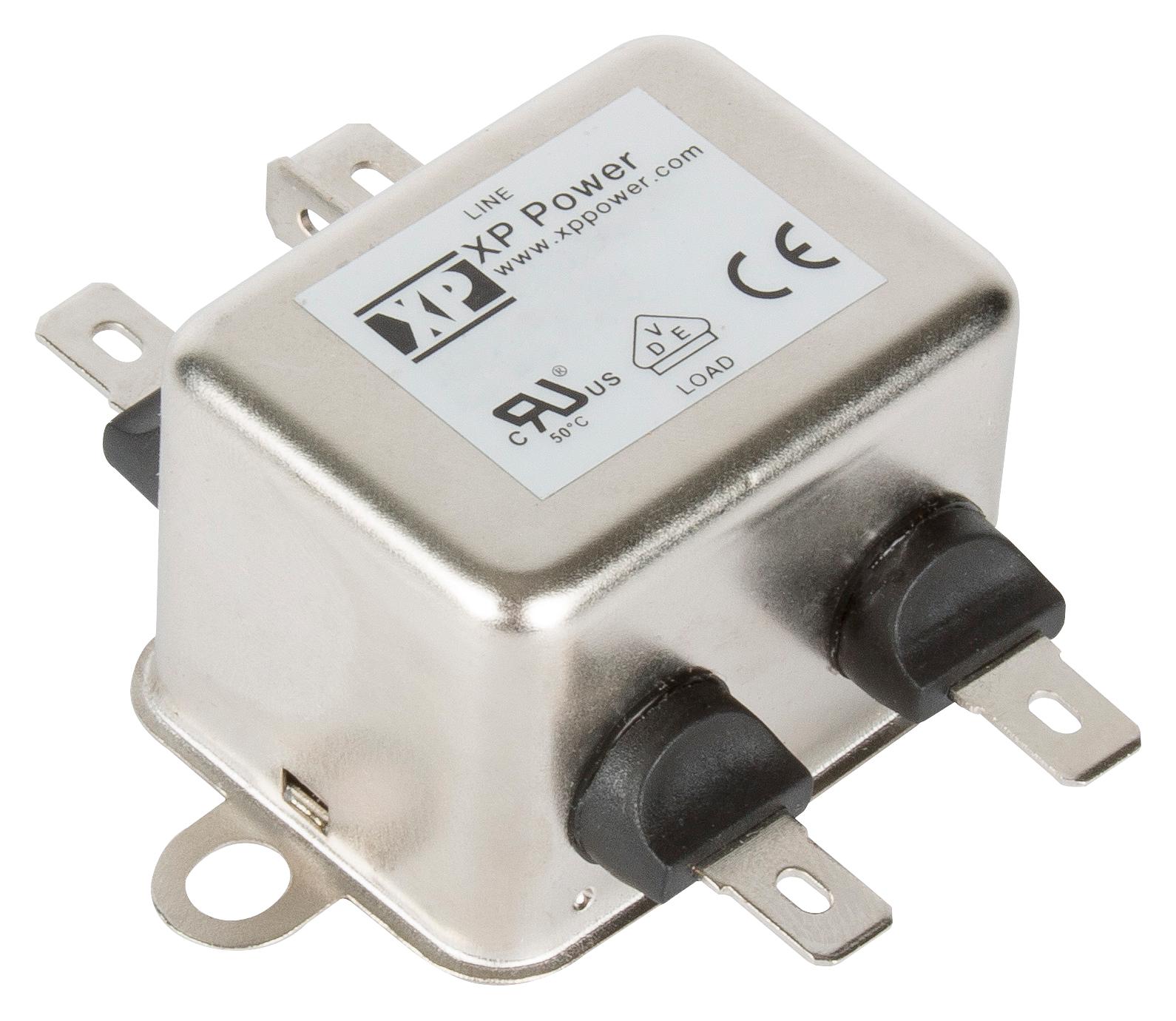

XP POWER FHSMM15A2FR Chassis Mount EMI Filter
The FHSM single-stage chassis-mount EMI filter designed for medical applications features a compact, shielded metal body and low earth leakage current of 5µA at 250VAC. Equipped with a bleed resistor for safe capacitor discharge when power is disconnected, it connects via 6.3 x 0.8mm Faston terminals and should be installed near the mains entry to reduce radiated emissions. Certified under EN60939-2 and ANSI/UL1283, it operates across a temperature range from -40°C to +110°C, with full power tolerances up to +50°C. Available in ratings from 1A to 20A, suitable for Class I appliances.
XP POWER FHSMM15A2FR Chassis Mount EMI Filter Specifications:
- Rated Voltage: 250 VAC
- Input Frequency: 50/60 Hz, 400 Hz
- Rated Current: 1A, 3A, 6A, 10A, 15A, 20A (varies by model)
- Earth Leakage Current: 5 µA
- Dielectric Strength: 1500 V AC
- Connection Terminals: 6.3 x 0.8 mm Faston
- Temperature Operating Range: -40°C to +110°C
- Full Power Up To: +50°C
- Flammability Rating: UL 94V-2
- Safety Approvals: EN60939-2, ANSI/UL1283
- Dimensions: Compact shielded metal housing suitable for chassis mounting
- Protection Class: Class I appliances
- Leakage Current at 115VAC/60Hz: 2 µA
- Capacitance: 0.1 µF
- Inductance: 2x 0.8-2.0 mH (models vary)
- Weight: 37g to 94g depending on rating
Buy the XP Power FHSMM15A2FR – Reliable EMI Filter for Industrial Applications
Purchase the XP Power chassis mount EMI filter FHSMM15A2FR today for highly reliable electromagnetic interference suppression in medical and industrial equipment. This compact, shielded filter offers low earth leakage current, broad temperature tolerance, and adherence to safety standards EN60939-2 and UL1283. Perfectly suited for Class I appliances, it provides safe capacitor discharge with its bleed resistor and features a robust metal housing for durable, close-to-mains installation. Ensure optimal EMI suppression and enjoy long-lasting performance—buy online now to upgrade your system’s electromagnetic compatibility.
Buy XP Power FHSMM15A2FR now and experience unmatched reliability and performance for medical and industrial environments.
