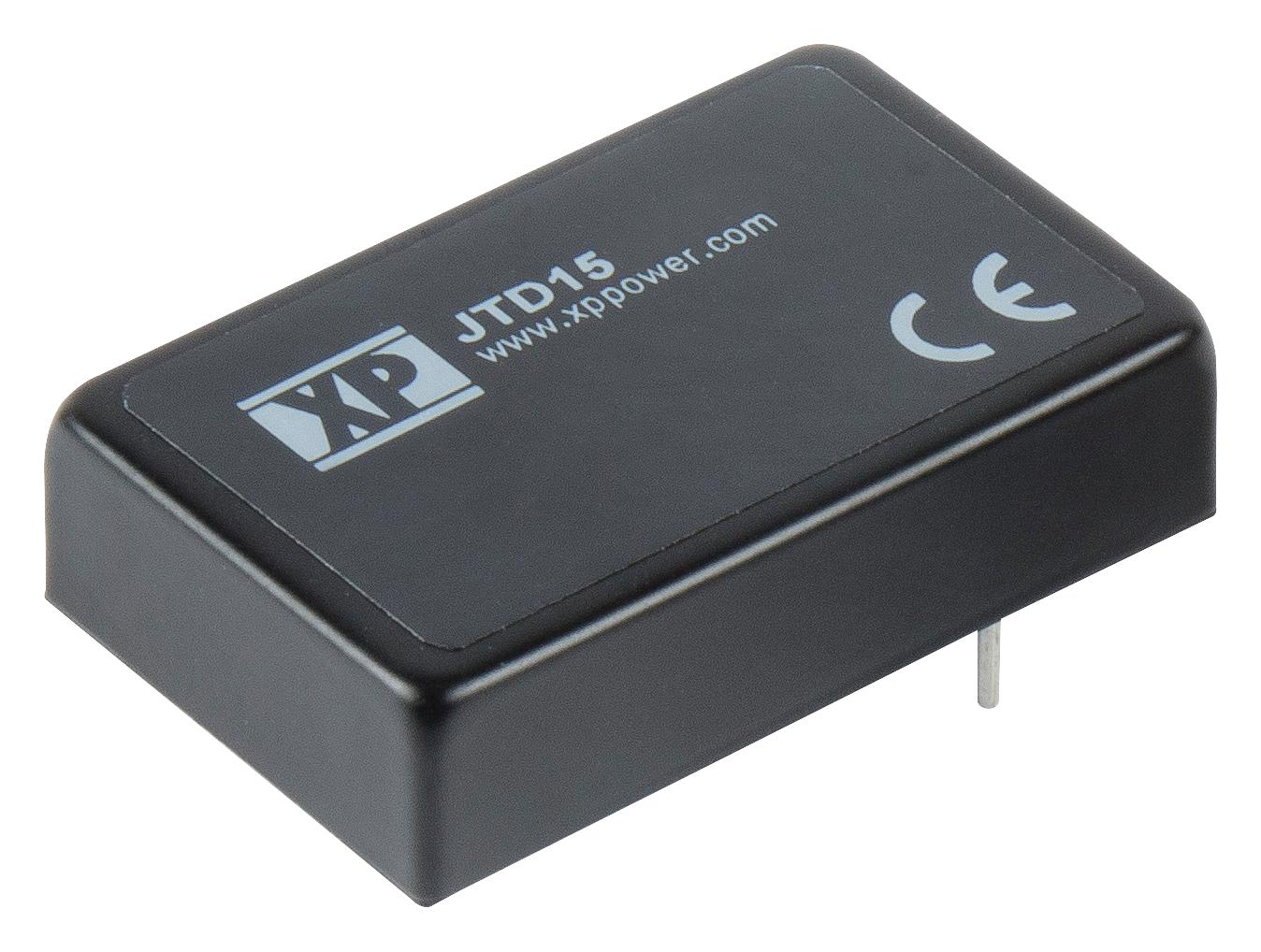

XP POWER JTD1524S05 DC-DC Converter
The JTD15 series of 15W DC-DC converters feature a compact metal casing measuring 1.6 inches by 1 inch by 0.41 inches (40.6mm x 25.4mm x 10.4mm). Designed to complement the JTD20 series, these converters offer an ultra-wide input voltage range of 9V to 36V or 18V to 75V DC, suitable for various power management applications. They are available with single or dual outputs, support operating temperatures from -40°C to 100°C, and can deliver full load at an ambient temperature of 80°C. Key features include 3000VDC isolation, output voltage trim of ±10%, and remote on/off control, making them ideal for DC power conversion and management.
XP POWER JTD1524S05 DC-DC Converter Specifications:
- Power: 15 Watts
- Input Voltage Range: 9V to 36V or 18V to 75V DC
- Output Power: Single/Dual outputs
- Output Voltage Adjustability: ±10% trim
- Isolation: 3000VDC
- Operating Temperature Range: -40°C to 100°C
- Full Load Operation at 80°C Ambient
- Dimensions: 1.6 x 1 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Case Material: Metal with plastic base
- Remote On/Off control: Enabled/Disabled by remote logic
- Efficiency: Up to 89%
- Short Circuit Protection: Continuous hiccup mode
- Maximum Capacitive Load: Up to 33,000 μF depending on model
Buy the Buy XP Power JTD1524S05 Part Number 15W DC-DC Converter Online
Enhance your power systems with the XP Power JTD1524S05 15W DC-DC converter, offering an ultra-wide input range, 3000VDC isolation, and adjustable output voltage. Compact and efficient, it supports operating temperatures from -40°C to 100°C, making it ideal for industrial power management. Featuring remote on/off control and full load capability at high ambient temperatures, it ensures reliable performance in demanding environments. Easily adaptable with short circuit protection and high efficiency up to 89%, this converter is perfect for various applications requiring stable voltage conversion and robust performance.
Buy XP Power JTD1524S05 now and experience unmatched reliability and performance in your power management applications.
Frequently Asked Questions
Where can I buy XP POWER JTD1524S05?
You can click on the BUY or RFQ button to purchase JTD1524S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD1524S05?
You can download the JTD1524S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD1524S05?
XP POWER
