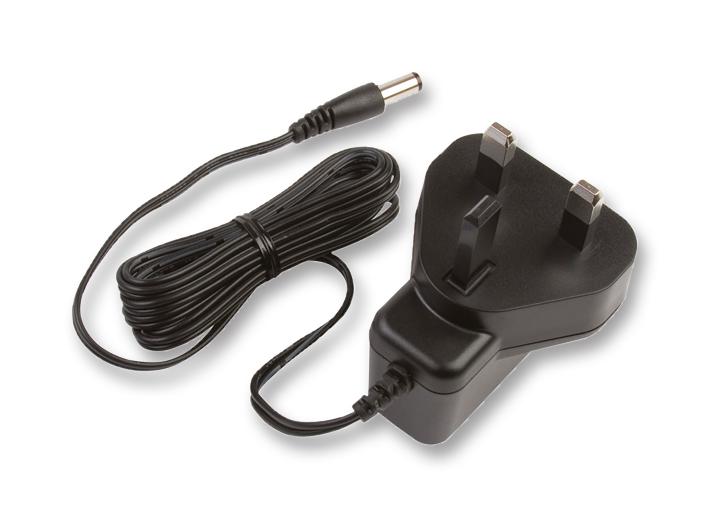

XP POWER VEL18US240UKJA AC-DC Power Supply
The VEL18 series from XP Power are highly efficient 18-watt AC-DC power supplies designed for cost-sensitive applications. These units comply with Energy Efficiency Level VI standards, featuring universal input, fixed mains connectors, and output voltages from 9 V to 24 V. They possess low no-load power consumption, class II construction, and robust safety and EMC certifications. Their compact design with standard DC jack connectors makes them ideal for various industrial, healthcare, and consumer electronics applications requiring reliable power conversion with regulation and protection features.
XP POWER VEL18US240UKJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 0.3 A at 100 VAC
- Inrush Current: 60 A cold start at 25°C
- Efficiency: 85% at 25%, 50%, 75% loads
- Output Voltages: 9V, 12V, 15V, 18V, 24V
- Output Current: up to 2000 mA
- Total Regulation: 5%
- Ripple & Noise: Not specified
- Isolation: 3000 VAC input to output
- Protection: Short circuit, overcurrent
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Dimensions (US): 3.54 x 1.34 x 1.87 inches (90 x 34 x 47.5 mm)
- Dimensions (EU): 3.54 x 1.34 x 2.26 inches (90 x 34 x 57.57 mm)
- Weight: Approximately 0.19 kg
Buy the Buy XP Power AC-DC Power Supply Part Number VEL18US240UKJA Online
Order the XP Power VEL18US240UKJA online today to enjoy fast delivery, superior quality, and dependable power conversion for your applications. This compact, high-efficiency 18-watt power supply offers universal input, multiple output voltages from 9V to 24V, low no-load power consumption, and rigorous safety standards including UL, TUV, and CE certifications. Perfect for industrial, healthcare, and consumer electronics, this power supply ensures stable operation with built-in protection against short circuits and overcurrent. Upgrade your power solution today for efficient and secure performance.
Buy XP Power VEL18US240UKJA now and experience reliable performance with low power consumption and industry-leading efficiency.
Frequently Asked Questions
Where can I buy XP POWER VEL18US240UKJA?
You can click on the BUY or RFQ button to purchase VEL18US240UKJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US240UKJA?
You can download the VEL18US240UKJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US240UKJA?
XP POWER
