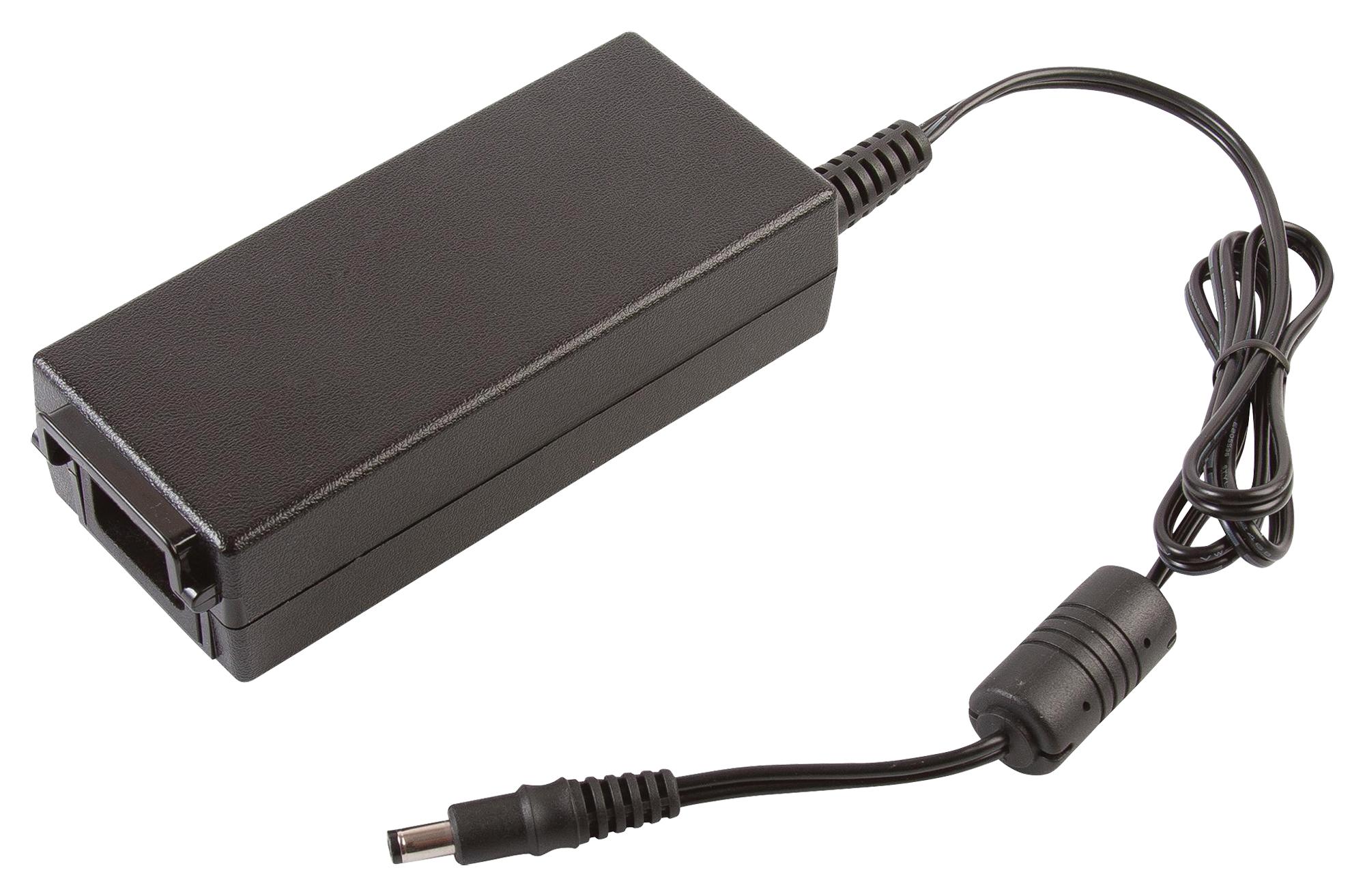

XP POWER ALM65US15C28 AC-DC Power Supply
The ALM65 series of AC-DC power supplies provides 65 watts of reliable power for medical and industrial applications. Fully approved to international safety standards, these units feature high efficiency, low standby power, and an IP32 sealed enclosure for easy cleaning. With universal input ranging from 80 to 264 VAC, they operate in temperatures from 0°C to 60°C, ensuring consistent performance. Designed for medical, IT, and industrial environments, they offer low earth leakage current, transient response, and ripple noise. Compact and compliant with environmental legislation, these power supplies are ideal for mission-critical systems worldwide.
XP POWER ALM65US15C28 AC-DC Power Supply Specifications:
- Power Output: 65 Watts
- Input Voltage: 80-264 VAC
- Output Voltage: Model specific, e.g., 15V
- Output Current: Model specific, e.g., 4.33A
- Efficiency: 88%
- Isolation: Input to Output 4000 VAC, Input to Ground 7500 VAC
- Transient Response: 500 μs at 25% load
- Ripple and Noise: 10 mVp-p with 0.1 μF ceramic capacitor
- Operating Temperature: 0°C to 60°C
- Dimensions: 4.94 x 2.19 x 1.32 inches (125.5 x 55.5 x 33.5 mm)
- Environmental Rating: IP32
- Standby Power: <0.21 W
- Earth Leakage Current: Low
- Switching Frequency: 65 kHz PWM
- Certifications: UL, EN, IEC safety standards
- Weight: Approximately 0.68 lbs (308 g)
Buy the XP Power ALM65U – Reliable Power Supply for Industrial Applications
Discover the high-performance ALM65 series power supply, offering 65W reliable power for medical and industrial use. This efficient, compact unit features IP32 sealing, universal input, and low standby power, making it ideal for critical applications. With certifications for safety and EMC compliance, it ensures safe operation across various environments. Perfect for IT, industrial equipment, or medical devices, it guarantees stable output, transient response, and low noise. Order online today for quick delivery and dependable power solutions for your projects.
Buy XP Power ALM65U now and experience unmatched reliability and performance for your medical and industrial systems.
Frequently Asked Questions
Where can I buy XP POWER ALM65US15C28?
You can click on the BUY or RFQ button to purchase ALM65US15C28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ALM65US15C28?
You can download the ALM65US15C28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ALM65US15C28?
XP POWER
