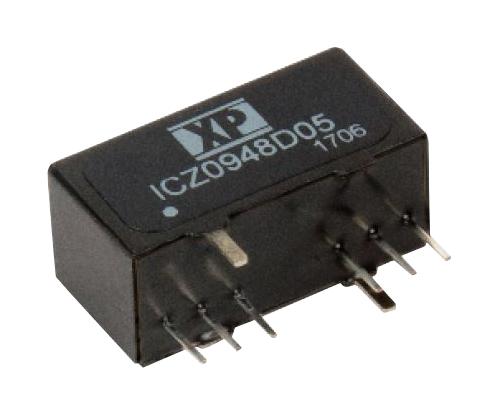

XP POWER ICZ0912D12 DC-DC Converter
The ICZ09 series is a 9W DC-DC converter with a 2:1 input voltage range. Encased in an ultra-compact 8-pin SIP package, it offers fully regulated single and dual output options. The converter features an operating temperature range from -40°C to 85°C, 1600VDC input-to-output isolation, remote On/Off control, and does not require a minimum load. It is suitable for industrial and power management applications.
XP POWER ICZ0912D12 DC-DC Converter Specifications:
- Input Voltage Range: 18-36V or 36-75V DC
- Output Power: 9 Watts
- Input-to-Output Isolation: 1600VDC
- Operating Temperature: -40°C to +85°C
- Dimensions: 0.86 x 0.38 x 0.44 inches (21.8 x 9.6 x 11.2 mm)
- Remote On/Off: Yes, max 5V and 4mA current
- Efficiency: Up to 87%
- Fully Regulated Output: Yes
- No Minimum Load Required: Yes
- Package Type: SIP8
- Input Filter: Through 12 pH inductor and 47 pF capacitor
- Peak Input Surge: Up to 700 V for 100 ms
- Isolation Resistance: >1 GΩ
- Switching Frequency: 200/500 kHz
- Weight: 0.016 lbs (73 g)
Buy the XP Power Series ICZ DC-DC Converter: ICZ0912D12
Purchase the XP Power ICZ0912D12 online today and benefit from a reliable, highly efficient 9W power converter with a robust input range, excellent isolation, and a compact SIP8 design. This fully regulated converter supports industrial applications with a broad temperature range from -40°C to 85°C, no minimum load requirement, and remote On/Off control. Its high efficiency and durable construction ensure optimal performance for power management, automation systems, and embedded applications.
Buy XP Power ICZ0912D12 now and experience unmatched reliability and performance in compact power conversion solutions.
