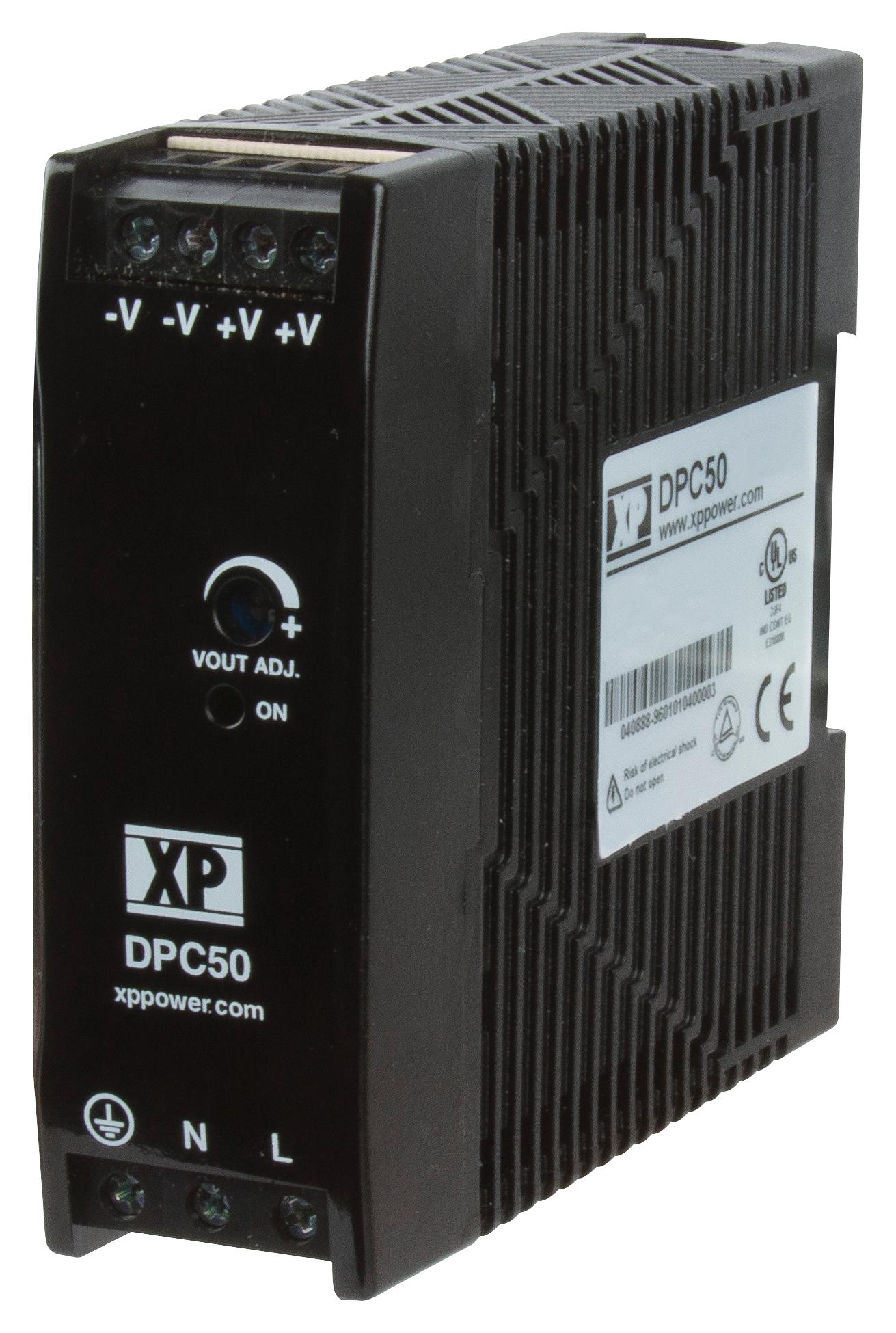

XP POWER DPC50US12 Industrial Power Supply
The DPC50 series is a high-efficiency, ultra-slim AC-DC power supply delivering 50 Watts of output power, designed for industrial applications. Operating from -25°C to +70°C with natural convection cooling, these power supplies feature a wide input voltage range of 85-264 VAC, offering a reliable 12V output at 4.0A with a typical efficiency of 86%. Compact dimensions of 3.6 x 1.18 x 3.94 inches make it ideal for space-constrained environments. Certifications include IEC, UL, and EN standards, with robust overvoltage and overload protections for safety and durability.
XP POWER DPC50US12 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC, 47-63 Hz, power factor conforming to EN61000-3-2 Class A
- Output Voltage: 12V with a trim range of 11.4-15.6V, output current up to 4.0A
- Maximum output power of 48W at 86% efficiency, typical ripple & noise 700 mV pk-pk at 20 MHz bandwidth
- Dimensions: 3.6 x 1.18 x 3.94 inches (90.0 x 30.0 x 100.0 mm), weight approximately 0.42 lbs (190 g)
- Operating temperature from -25°C to +70°C, humidity range 20-95% RH, natural convection cooling
- Isolation: Input to output 3000 VAC, input to ground 7500 VAC, output to ground 500 VAC
- Safety Standards: UL, IEC, EN60950-1, RoHS compliant, with overvoltage, overload, and short circuit protections
- Switching frequency: 65 kHz, MTBF: 530,000 hours, with green LED indicator for output status
Buy the XP Power DPC50US12 – Reliable 12V Power Supply for Industrial Applications
Purchase the XP Power DPC50US12 online today to ensure a reliable, high-efficiency power solution for your industrial automation, control panels, and electronic devices. Designed for space-constrained environments, this 50W power supply offers a wide input voltage range from 85 to 264 VAC, with a 12V output capable of delivering 4A of current. Its robust safety features, including overvoltage and short circuit protection, make it an ideal choice for continuous operation in challenging industrial settings. Fast, secure online ordering guarantees prompt delivery and support for your projects.
Get XP Power DPC50US12 today—built for precision, durability, and efficient power delivery in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DPC50US12?
You can click on the BUY or RFQ button to purchase DPC50US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DPC50US12?
You can download the DPC50US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DPC50US12?
XP POWER
