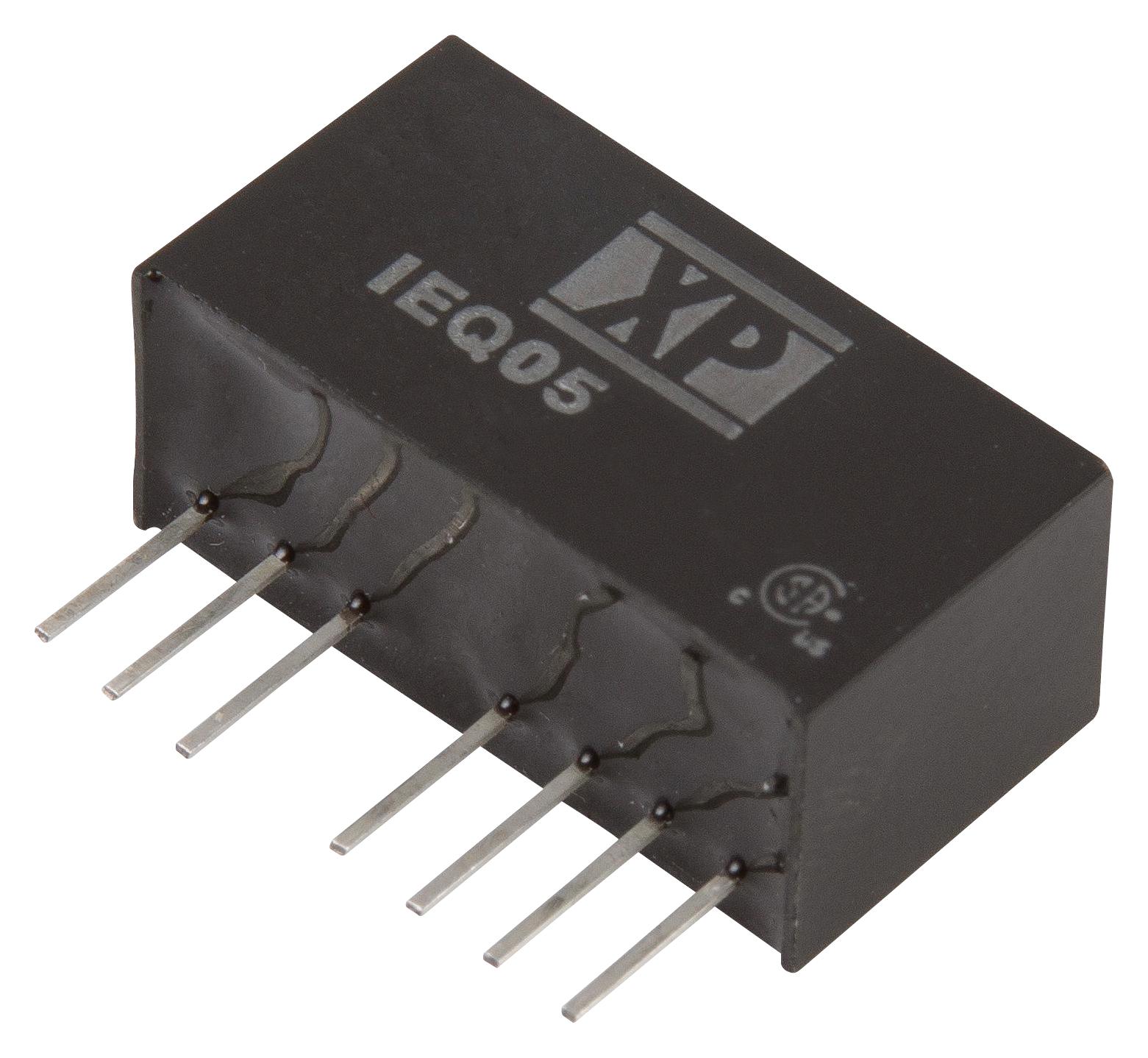

XP POWER IEQ0512S12 Industrial Power Converter
The IEQO5 Toya DC-DC Converter is a compact 5-watt power module designed for reliable industrial applications. Featuring a wide input range of 18V to 72V, it provides regulated single or dual outputs with high efficiency up to 83%. Its SIP8 package ensures a small footprint, while 1500 VDC isolation and remote On/Off support various safety and control requirements. Operating in temperatures from -40°C to +90°C, it is ideal for demanding industrial environments needing stable power conversion with minimal noise and transient response. Compliance with safety standards guarantees robust performance.
XP POWER IEQ0512S12 Industrial Power Converter Specifications:
- Input Voltage Range: 18V to 72V nominal, 9V to 78V surge capability
- Output Voltage: 3.3V to 30V configurable per model
- Output Power: 5 Watts
- Isolation Voltage: 1500 VDC
- Efficiency: up to 83%
- Operating Temperature: -40°C to +90°C
- Dimensions: 0.86 x 0.37 x 0.44 inches (21.8 x 9.3 x 11.2 mm)
- Input Surge Voltage: 50V to 75V depending on model
- Remote On/Off control via external resistor
- Ripple & Noise: minimal, within specified noise limits
- Protection: Continuous short circuit and overload protection
- Switching Frequency: approximately 700 kHz
- Isolation Resistance: 10^15Ω at 500 VDC
- Ingress Protection: protected in typical industrial settings
- Compliance: UL, cUL, EN55022 Class A, EN61000-4-2/4/5/6
- Case Material: UL 94V-0 rated non-conductive plastic
Buy the Toya 1EQO5 U–2013 Reliable Industrial Power Supply for Industrial Applications
Purchase the Toya 1EQO5 industrial power converter online today and enhance your power management with its compact size, high efficiency, and wide input voltage range. Designed for demanding environments, it features robust isolation, reliable regulation, and comprehensive safety standards. Its adjustable output, remote On/Off, and overcurrent protection make it an ideal solution for industrial automation, control systems, and remote instrumentation. Secure your power needs now and benefit from fast delivery, excellent warranty coverage, and dedicated customer support for optimal system performance.
Buy Toya 1EQO5 now and experience unmatched reliability and performance in your industrial power conversion needs.
Frequently Asked Questions
Where can I buy XP POWER IEQ0512S12?
You can click on the BUY or RFQ button to purchase IEQ0512S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IEQ0512S12?
You can download the IEQ0512S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IEQ0512S12?
XP POWER
