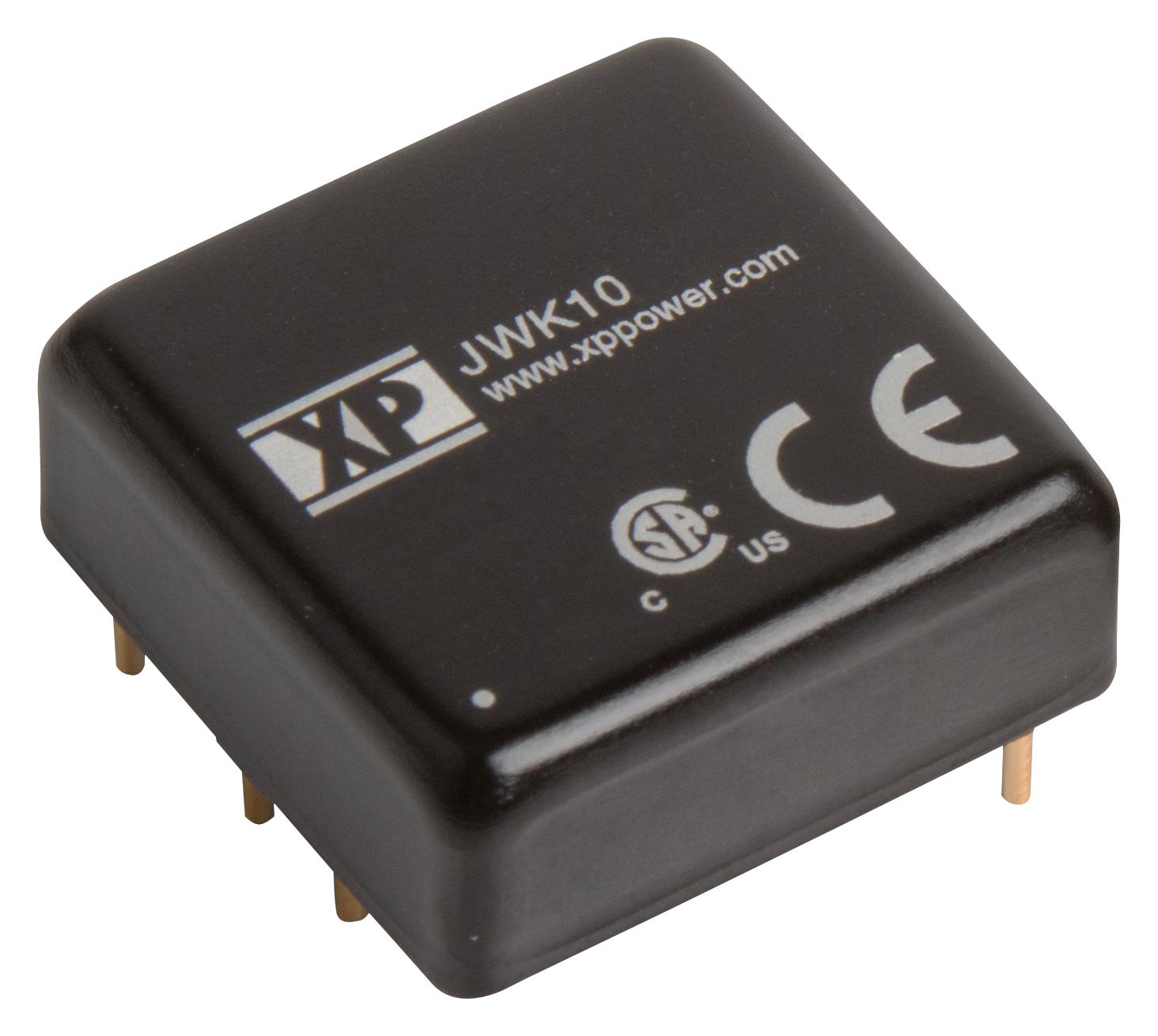

XP POWER JWK1048S12 DC Power Module
This is a regulated power supply module with both single and dual output options. It features an ultra-wide input voltage range with a 4:1 ratio, a compact 1 x 1 inch package, and provides 1500VDC isolation between input and output. The device operates reliably across temperatures from -40°C to 100°C and has received ITE safety approvals. It includes remote On/Off control and is housed in a six-sided metal case, making it suitable for various power management and DC converter applications.
XP POWER JWK1048S12 DC Power Module Specifications:
- Input Voltage Range: 9.0 to 36 VDC (48V models: 75V, 100V surge capability)
- Output Options: 3.3V, 5V, 5.1V, 12V, 15V, 24V with currents up to 1A
- Efficiency: Up to 87%
- Isolation: 1500VDC
- Operating Temperature: -40°C to +100°C
- Operating Humidity: 5% RH non-condensing
- Dimensions: 1.00 x 1.00 x 0.40 inches (25.4 x 25.4 x 10.16 mm)
- Package: Six-sided metal case
- Remote On/Off: Yes, with logic high (2.5-50V) or open circuit for ON, logic low (<1.0V) for OFF
- Safety Certifications: UL60950-1, UL62368-1
- Switching Frequency: 750 kHz
- Weight: 0.03 lbs (15 grams)
- Protection: Overload and short circuit with auto-recovery
- Certifications and Standards: Meets EMC, safety, and surge standards
Buy the XP Power Series DC-DC Converter: JWK1048S12
Buy the XP Power Series DC Power Module JWK1048S12 online today to ensure your projects benefit from high efficiency, robust safety features, and reliable operation. This compact device offers a wide input voltage range, excellent thermal performance, and dual functionality suitable for various industrial and electronic applications. Easily integrate this module into your power systems for consistent, safe, and cost-effective power conversion. Take advantage of our hassle-free online purchase process for quick delivery and expert support.
Order your XP Power Series DC-DC Converter JWK1048S12 today and enhance your power management system with reliable, high-efficiency conversion.
Frequently Asked Questions
Where can I buy XP POWER JWK1048S12?
You can click on the BUY or RFQ button to purchase JWK1048S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWK1048S12?
You can download the JWK1048S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWK1048S12?
XP POWER
