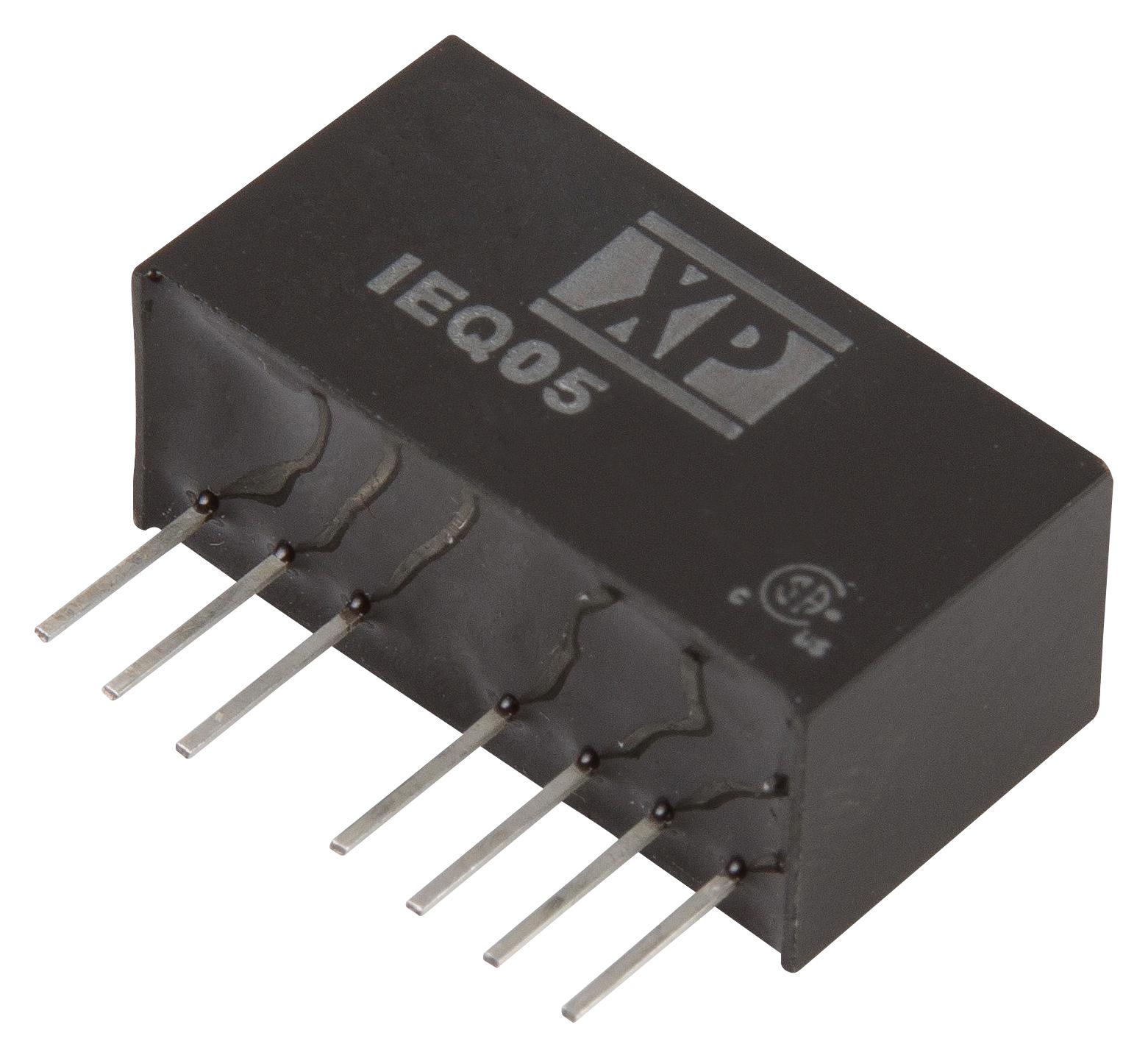

XP POWER IEQ0524D15 DC-DC Converter
The IEQO5 Toya DC-DC Converter offers a compact, regulated power solution with 5 Watts output, wide input voltage range from 18V to 72V, and 1500 VDC isolation. Designed for high efficiency and reliability, it supports both single and dual outputs, operates at temperatures from -40°C to +90°C, and features remote On/Off functionality. Its SIP8 package makes it suitable for space-constrained applications in industrial, automation, and control systems. Certified for safety and electromagnetic compliance, it provides stable power with auto-recovery short circuit protection.
XP POWER IEQ0524D15 DC-DC Converter Specifications:
- Input Voltage Range: 18V to 72V nominal, surge up to 75V, 50V surge for 24V models
- Output Voltage: 3.3V to 30V depending on model
- Output Power: 5 Watts
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +90°C
- Efficiency: Up to 84%
- Remote On/Off: Via 1kΩ resistor
- Dimensions: 0.86 x 0.37 x 0.44 inches (21.8 x 9.3 x 11.2 mm)
- Input Capacitance: 7000 μF (for certain models), various depending on configuration
- Isolation Resistance: 1 MΩ at 500 VDC
- Switching Frequency: 700 kHz
- Case Material: UL 94V-0 rated black plastic
- Certification: UL/cUL60950-1, UL/cUL62368-1, Conducted EN55022 Class A, EN61000-4-2/4/5/6
- Humidity: 95% RH non-condensing
Buy the XP Power Series Toya DC-DC Converter: IEQ0524D15
Purchase the XP Power Toya DC-DC Converter IEQ0524D15 online and enjoy a reliable, high-efficiency power supply ideal for industrial applications. Its wide input range of 18 to 72V ensures compatibility with various power sources, while the 1500 VDC isolation provides safety and noise immunity. This compact device features remote On/Off control, supports up to 84% efficiency, and operates efficiently at temperatures from -40°C to +90°C. Built for durability and precision, it’s perfect for automation, control, and embedded systems demanding stable power with minimal space.
Get XP Power Toya DC-DC Converter IEQ0524D15 today—compact, reliable and perfect for industrial automation and control systems.
Frequently Asked Questions
Where can I buy XP POWER IEQ0524D15?
You can click on the BUY or RFQ button to purchase IEQ0524D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IEQ0524D15?
You can download the IEQ0524D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IEQ0524D15?
XP POWER
