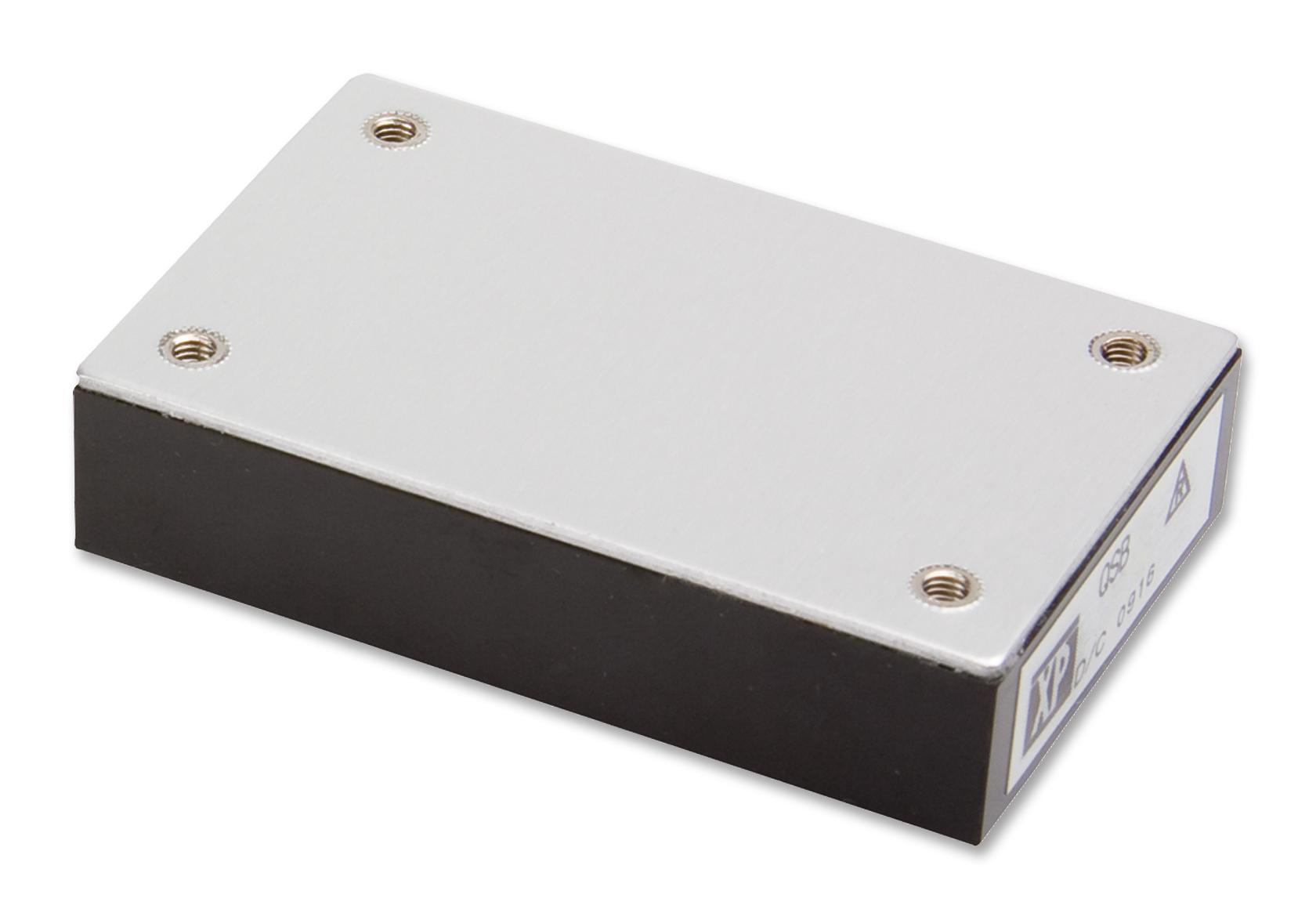

XP POWER QSB7524S12 Industrial Power Supply
The QSB series is a high-density, switch-mode power supply designed for industrial and automation applications. It features an industry-standard package, remote on/off, remote sense, wide input voltage ranges (9-36V or 18-75V), and operating temperatures from -40°C to +100°C. The series provides stable output voltages with high efficiency, low ripple, and noise levels. Equipped with overvoltage, short-circuit protections, and thermal shutdown, these power supplies are suitable for demanding environments, ensuring reliable and long-lasting operation in various industrial settings.
XP POWER QSB7524S12 Industrial Power Supply Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC depending on model
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Up to 70.0A depending on model
- Efficiency: Up to 91%
- Isolation Voltage: 1500 VDC input to output, case to output
- Operating Temperature: -40 °C to +100 °C
- Ripple & Noise: 100-280 mVp-p depending on model, measured with specified capacitors
- Protection: Overvoltage, short circuit, thermal shutdown
- Switching Frequency: 250-330 kHz depending on model
- Power Density: Up to 123 W/in³
- MTBF: 658 kHrs to 1 MHrs
- Certification: UL60950-1, EN55022 level A emissions
- Remote On/Off: Compatible with negative logic
- Dimensions: Custom for each model, in inches (mm)
- Weight: Approximately 0.15–0.25 lbs (66–114 g)
Buy the Buy Industry-Standard Power Supply Part Number QSB7524S12 Online
Enhance your industrial systems with the versatile and reliable power supply QSB7524S12. Designed for demanding environments, it offers a wide input voltage range, remote on/off, remote sense, high efficiency, and built-in protections including overvoltage and thermal shutdown. With robust certifications and compact design, this power supply ensures stable operation and long-term performance in automation, manufacturing, and control applications. Order online now and experience dependable power for your critical systems, backed by quality assurance.
Get QSB7524S12 today—built for industrial reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER QSB7524S12?
You can click on the BUY or RFQ button to purchase QSB7524S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QSB7524S12?
You can download the QSB7524S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QSB7524S12?
XP POWER
