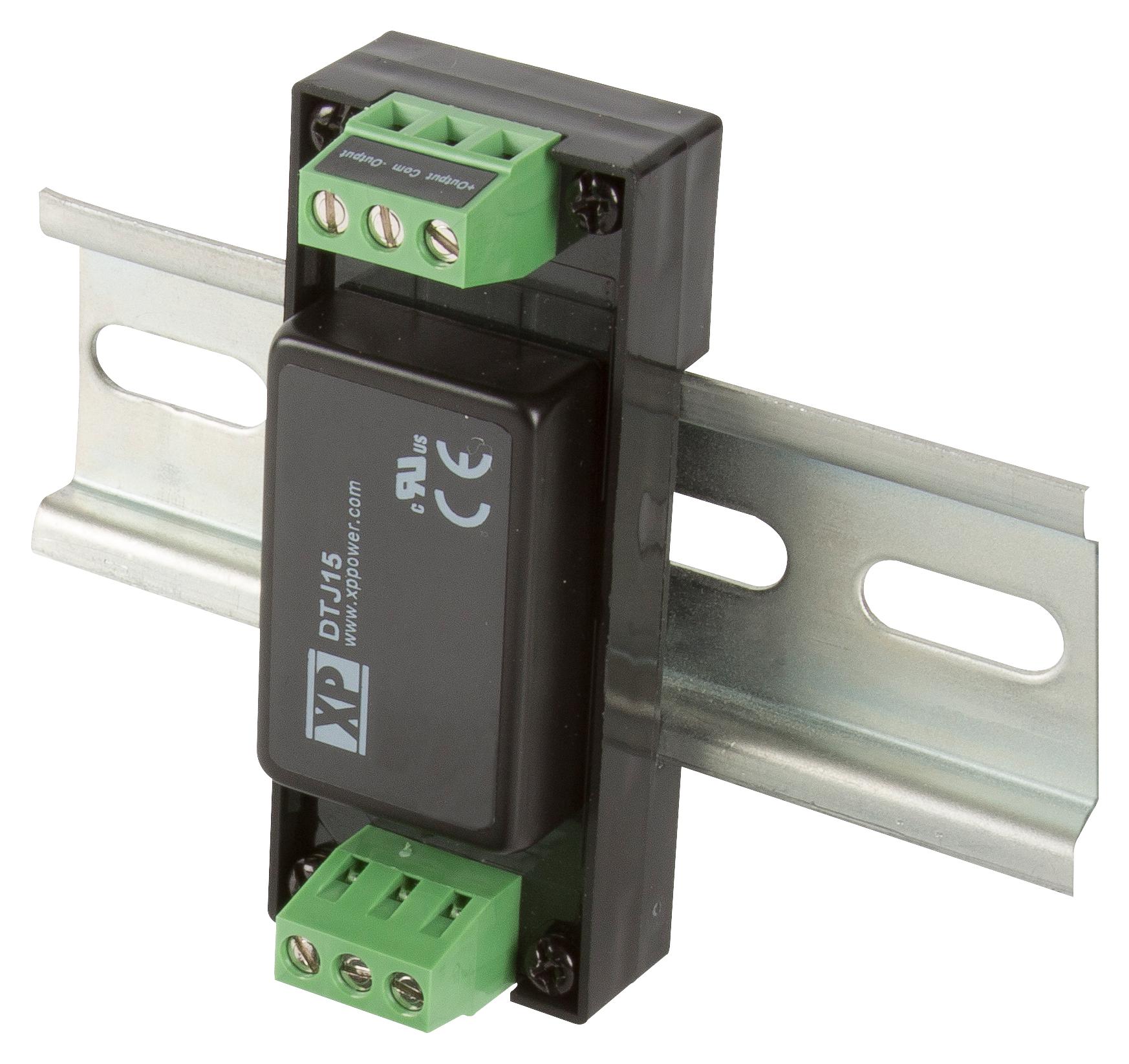

XP POWER DTJ1524S05D DC-DC Converter
The DTJ15 Toya DC-DC Converter by XP Power is a high-efficiency, regulated power supply delivering up to 15 Watts with adjustable outputs from 3.3V to 30V DC. Its wide 4:1 input voltage range includes nominal voltages of 12V, 24V, and 48V, making it suitable for industrial applications requiring reliable power conversion. Features include remote on/off control, voltage trim, 3kVDC isolation, UL62368-1 safety approval, and operating temperature from -40°C to +100°C. It supports chassis mounting with optional DIN rail clip and includes short circuit and reverse polarity protections.
XP POWER DTJ1524S05D DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC with nominal 12V, 24V, 48V
- Output Power: 15 Watts
- Output Voltage: 3.3V to 30V DC, adjustable with trim
- Output Current: Up to 1A depending on model and output voltage
- Isolation: 3000 VAC for 60 seconds
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +100°C (full power to 80°C)
- Dimensions: 3.00 x 1.24 x 0.77 inches (76.2 x 31.4 x 19.4 mm)
- Protection: Short circuit, reverse polarity, overvoltage, overload
- Certifications: UL62368-1, EN55032 Class A
- Mechanical Mounting: Chassis mount with optional DIN rail clip, heatsink option available
Buy the XP Power Series DTJ: DC-DC Converter 15 Watts - DTJ1524S05D
Purchase the XP Power DTJ1524S05D DC-DC converter online today for industrial-grade power solutions delivering 15 Watts of regulated output. With adjustable voltage from 3.3V up to 30V DC, it supports a wide input range and provides high efficiency up to 89%. Its compact size, UL safety certifications, and features like remote on/off, voltage trim, and robust protections make it ideal for demanding industrial and commercial applications. Easily mountable with optional DIN rail clip, ensuring durable and reliable power conversion in challenging environments.
Get XP Power DTJ1524S05D today—built for precision, durability, and reliable industrial power conversion.
Frequently Asked Questions
Where can I buy XP POWER DTJ1524S05D?
You can click on the BUY or RFQ button to purchase DTJ1524S05D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ1524S05D?
You can download the DTJ1524S05D datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ1524S05D?
XP POWER
