XP POWER ITR0305S09 DC-DC Converter Module
The ITROS Series high-efficiency, unregulated DC-DC converter modules provide 3W of power in a compact SIP package suitable for industrial applications. Featuring input voltages from 4.5V to 26.4V and output voltages ranging from 5V to 15V, they offer input/output isolation of 3,000VDC, a wide operating temperature of -40°C to +100°C, and full load operation up to +85°C. Robustly encapsulated, these modules meet safety standards, operate at frequencies of 40-70kHz, and have MTBF over 6.7 million hours, making them ideal for industrial control and automation systems.
XP POWER ITR0305S09 DC-DC Converter Module Specifications:
- Power: 3 Watts
- Input Voltage Range: 4.5V to 26.4V DC
- Output Voltage Range: 5V, 12V, 15V DC
- Input/Output Isolation: 3,000VDC
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +100°C
- Full Power Operating Temperature: up to +85°C
- Switching Frequency: 40-70 kHz
- Dimensions: 0.46 x 0.38 x 0.29 inches (11.8 x 9.66 x 7.5 mm)
- MTBF: > 6.7 million hours
- Certifications: CE, UL, CSA in compliance
- Case Material: Non-conductive black plastic (UL94V-0)
- Potting Material: Silicone (UL94V-0)
- Soldered with JEDEC J-STD 0200.1, 260°C max.

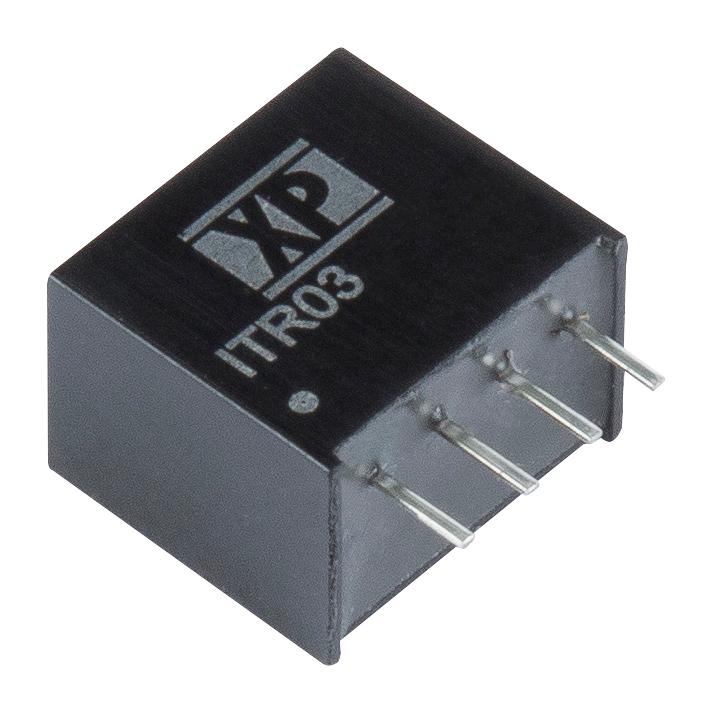

Buy the Buy XP Power ITROS Series Part Number ITR0305S09 Online
Purchase the high-performance XP Power DC-DC Converter Module today for reliable, efficient power conversion in industrial applications. Designed with a compact SIP package, it features a 3W power output, input/output isolation of 3,000VDC, and a wide temperature range from -40°C to +100°C. Ideal for automation, control systems, and portable devices, this module offers high efficiency up to 91% and full load operation at +85°C. Order now to benefit from fast shipping and secure online purchasing of this robust power module.
Get XP Power ITROS Series ITR0305S09 today—built for high efficiency, industrial robustness, and reliable mid-power conversion solutions.
Frequently Asked Questions
Where can I buy XP POWER ITR0305S09?
You can click on the BUY or RFQ button to purchase ITR0305S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITR0305S09?
You can download the ITR0305S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITR0305S09?
XP POWER
