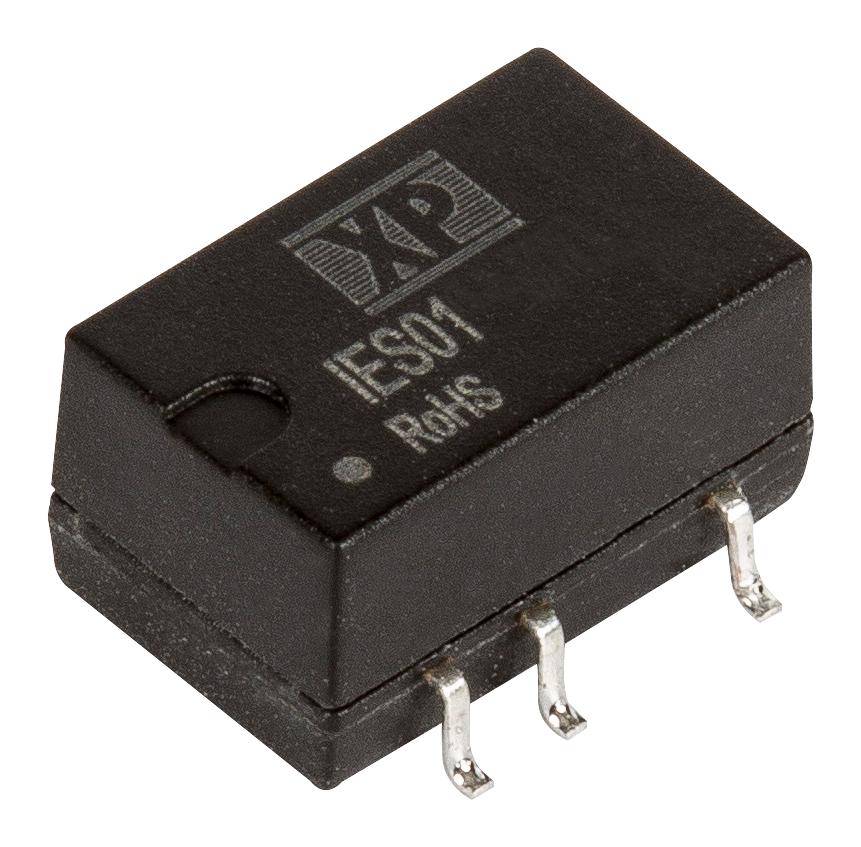

XP POWER IES0105S05H Industrial Isolating Power Module
The IES01 series offers reliable isolation for voltage rails in distributed power systems, suitable for analog, digital, data, and relay circuits. These compact modules feature a single unregulated output in an SMD DIP8 package, delivering 1.5kV DC isolation with an optional 3kV DC. They operate over a wide input voltage range of ±10%, ensuring high efficiency and robust performance. Designed for industrial environments, they include continuous short circuit protection, safety approval under UL62368-1, and a broad operating temperature from -40°C to +105°C, maintaining full load at 100°C. Packaging options include tape and reel for streamlined assembly.
XP POWER IES0105S05H Industrial Isolating Power Module Specifications:
- Input Voltage Range: ±10%, models available for 3.3V to 24V outputs
- Output Voltage: 3.3V, 5V, 6V, 9V, 12V, 15V, 24V
- Isolation Voltage: 1500V DC, optional 3000V DC
- Package: SMD DIP8, tape & reel options available
- Efficiency: 74% to 85% depending on model
- Operating Temperature: -40°C to +105°C, full load at 100°C
- Size: 0.52
- 0.335
- 0.285
- 15.2
- 8.5
- 7.25
- 78.5
- 47.8
- 7.25
- Protection: Continuous short circuit, UL62368-1 safety compliant
- Surge Voltage: Up to 30V for models with transient overvoltage
- Certifications: UL, CE, UKCA
- Standards: EN61326 EMC immunity and emissions compliant
- Dimensions: 0.52
- 13.2
- 8.5
- 7.25
- 0.285
- 7.25
- 0.032
- 0.037
- 0.04
- 0.059
- 0.102
- 0.16
- 0.215
- 0.265
- 0.3
Buy the XP Power IESO1 – Reliable Isolating Power Supplies for Industrial Applications
Enhance your industrial power systems with the XP Power IESO1 series. These reliable, compact DC-DC modules provide 1.5kV isolation, operate over wide temperature ranges, and include safety and short circuit protections. Suitable for analog, digital, data, and relay circuits, they feature UL62368-1 certification and easy tape & reel packaging for seamless integration. Ensure high performance and safety in demanding environments by ordering these efficient modules today, ideal for distributed power supply architectures requiring robust isolation and reliability.
Buy XP Power IESO1 series DC-DC modules now and experience unmatched reliability, high efficiency, and robust safety features for your industrial power needs.
