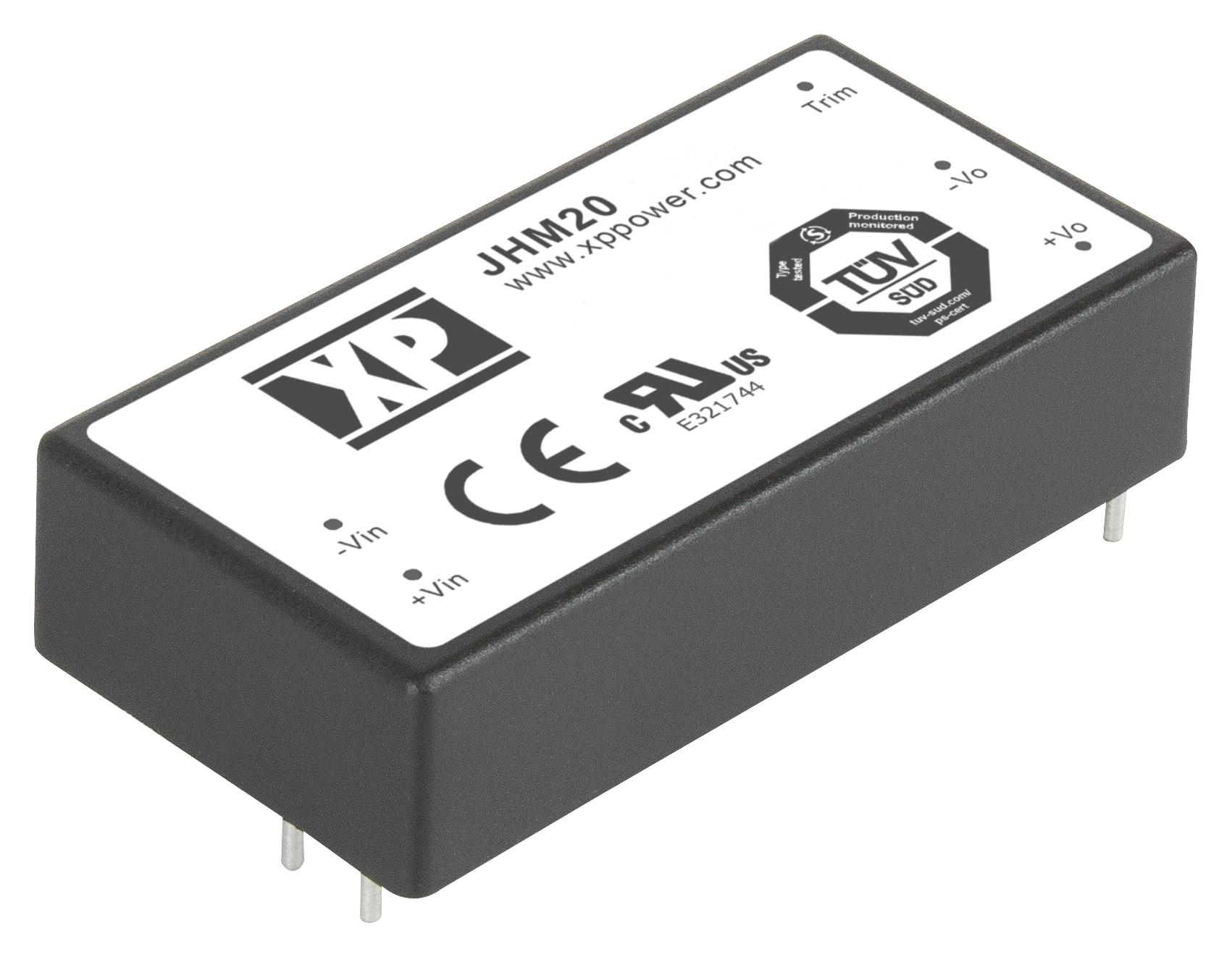

XP POWER JHM2048D05 Medical DC-DC Converter
The JHM20 series DC-DC modules provide a compact, medical-grade power supply solution with regulated outputs from 5V to 30V DC, adjustable within ±10%. Designed for medical applications, they feature reinforced 4kVAC isolation, 2:1 input range, and compliance with IEC60601-1, 3rd Edition standards including risk management. With a 2 x 1-inch PCB mount footprint, they support full power operation at 60°C, have a patient leakage current of only 2.5 microamps, and include short circuit protection. Certified for safety and reliability in sensitive environments, these modules ensure high-performance power delivery for demanding medical systems.
XP POWER JHM2048D05 Medical DC-DC Converter Specifications:
- Input Voltage Range: 9V-75V DC
- Output Voltage: 5V to 30V DC, adjustable ±10%
- Output Current: 1750 mA at 5V, 3500 mA at 5V respectively for different models
- Efficiency: Up to 88%
- Isolation: Reinforced 4kVAC, 2 x MOPP at 250VAC
- Leakage Current: 2.5 microamps
- Operating Temperature: -40°C to +80°C
- Dimensions: 2 inches x 1 inch x 0.4 inch (50.8 x 25.4 x 10.2 mm)
- Case Material: UL94V-0 rated black plastic
- Solder Material: Copper with solder coating
- Frequency: 250 kHz switching frequency
- Certifications: IEC60601-1, EN55011 Class A, UL, CSA, TUV
- Solder Profile: As per manufacturer recommended profile
- Mechanical: PCB mount, weight approximately 30 grams
Buy the XP Power Series JHM DC-DC Converter: JHM2048D05
Discover the highly reliable medical-grade power modules from the JHM20 series, offering regulated 5V to 30V outputs with adjustable features and reinforced 4kVAC isolation. Designed with a compact 2x1-inch footprint, these modules meet strict IEC60601-1 safety standards, making them ideal for sensitive medical equipment. They feature low patient leakage current of 2.5 microamps, high efficiency, and comprehensive safety certifications including UL, CSA, and TUV. Purchase online now to ensure your medical applications are powered by certified, safe, and dependable modules capable of operating in demanding environments with stable performance.
Buy XP Power JHM2048D05 now and experience unmatched reliability and medical-grade safety in power conversion.
Frequently Asked Questions
Where can I buy XP POWER JHM2048D05?
You can click on the BUY or RFQ button to purchase JHM2048D05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2048D05?
You can download the JHM2048D05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2048D05?
XP POWER
