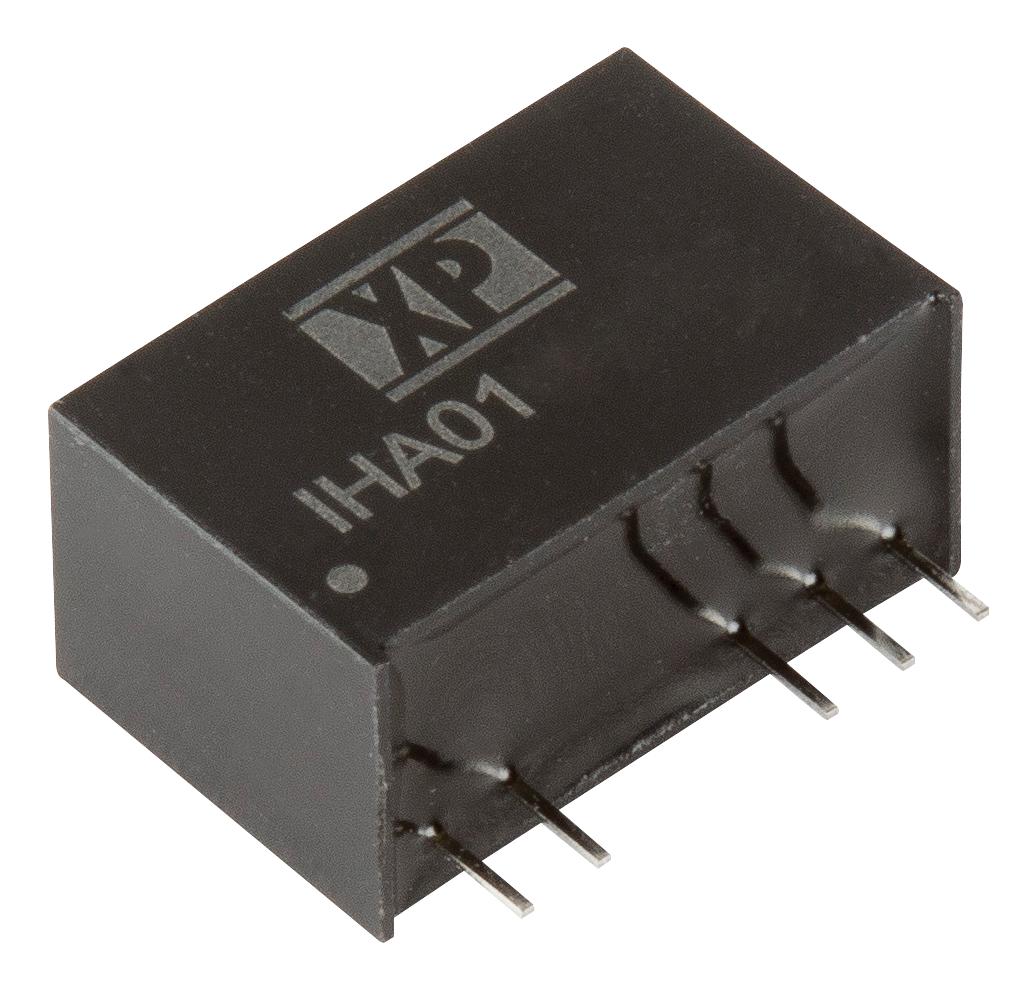

XP POWER IHA0109S12 DC-DC Converter
The IHA01 series is a compact 1W dual output DC-DC converter housed in a SIP7 package, suitable for power management and industrial applications. It features bipolar outputs for MOSFET and IGBT drives, high isolation of 6,000VDC, and a working voltage of 250VAC. Operating from -40°C to 85°C, it delivers full load at 85°C ambient. Designed for reliability, it is ideal for tight-space environments requiring stable dual or single outputs with excellent isolation and efficiency.
XP POWER IHA0109S12 DC-DC Converter Specifications:
- Power Output: 1 Watt
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Isolation: 6,000VDC input to output
- Working Voltage: 250 VAC
- Outputs: Single and dual, bipolar for MOSFET and IGBT drives
- Package: SIP7 (7-pin)
- Operating Temperature: -40°C to +85°C
- Full load operation at 85°C ambient
- MTBF: 2.5 million hours
- Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Efficiency: Varies by model, see specifics
- Pin Diameter: 0.020 ±0.002 inches
- Pin Pitch and Length Tolerance: +0.014 inches
- Weight: approximately 4.3 grams
- Conducted and radiated immunity compliant with EN55022 and EN5022 standards
Buy the Buy XPPower IHAO1 Series DC-DC Converter Part Number IHA0109S12 Online
Purchase the XPPower IHAO1 Series DC-DC Converter with 1W power, dual or single outputs, and high isolation of 6,000VDC online today. This compact SIP7 package offers bipolar outputs suitable for MOSFET and IGBT drives. Operating efficiently from -40°C to 85°C and capable of full load at 85°C ambient, it is ideal for industrial and power management applications. Ensure your projects benefit from excellent life expectancy, robust performance, and safe electrical isolation—order now for dependable power solutions.
Order your XPPower IHAO1 Series IHA0109S12 today and enhance your power management with reliable bipolar outputs and high isolation performance.
Frequently Asked Questions
Where can I buy XP POWER IHA0109S12?
You can click on the BUY or RFQ button to purchase IHA0109S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHA0109S12?
You can download the IHA0109S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHA0109S12?
XP POWER
