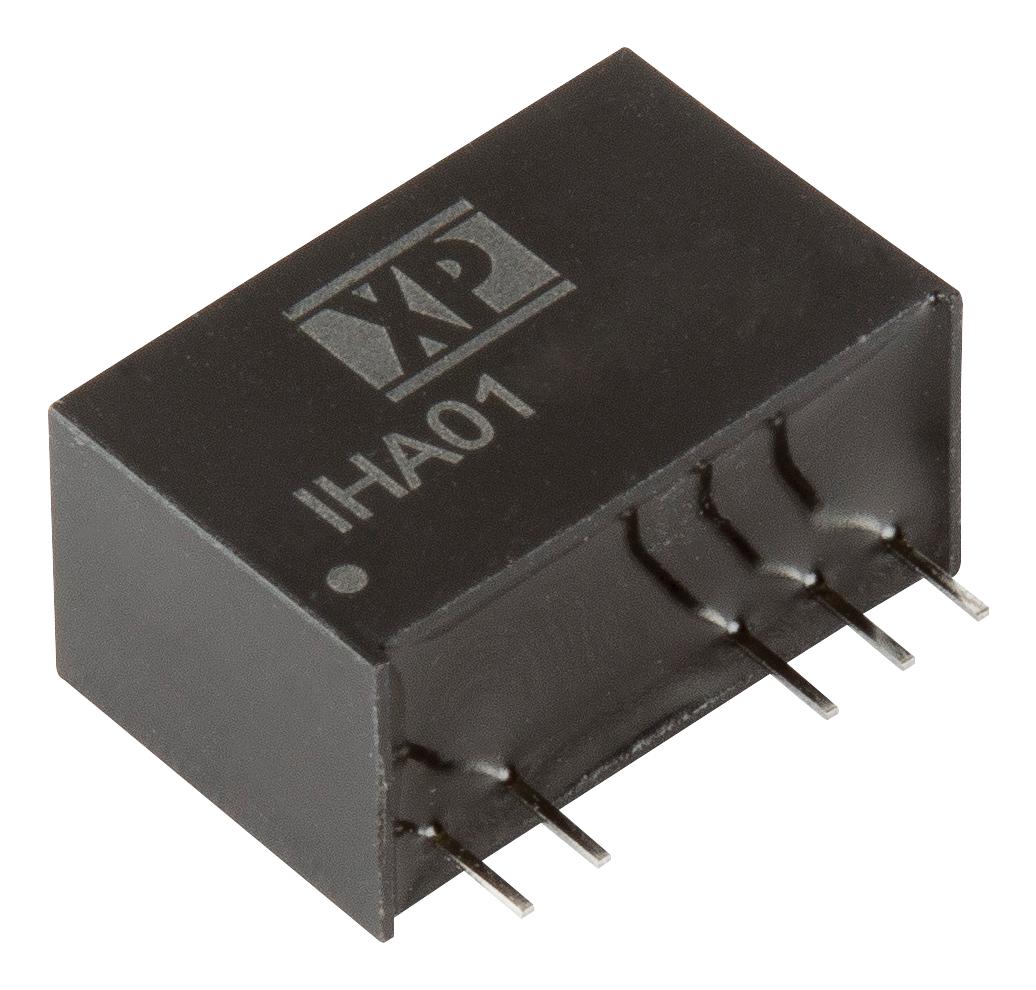

XP POWER IHA0124S3V3 DC-DC Power Converter
The IHA01 series is a compact 1W dual output DC-DC converter housed in a SIP7 package, ideal for industrial power management. It features bipolar outputs suitable for MOSFET and IGBT drives, with high isolation of 6,000V DC, supporting up to 250VAC working voltage. Its wide operating temperature range from -40°C to 85°C allows full load operation at 85°C ambient, making it suitable for demanding environments in automation and control systems. Certified for reliable performance, it ensures efficient power conversion in compact industrial setups.
XP POWER IHA0124S3V3 DC-DC Power Converter Specifications:
- Power: 1W
- Isolation: 6,000V DC
- Working Voltage: up to 250VAC
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Operating Temperature: -40°C to +85°C
- Case Dimension: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Package Type: SIP7
- Ripple & Noise: 20 mVpk at 10 MHz bandwidth
- Efficiency: Up to 85% (model dependent)
- Full load at 85°C ambient temperature
- Life Expectancy: MTBF 2.5 million hours
- Humidity: 25-35% RH, non-condensing
- Compliance: EN55022 Class B, EN61000-4-2 ESD immunity
- Storage Temperature: -40°C to +125°C
- Case Temperature: Max 100°C
- Cooling Method: Natural convection
Buy the XP Power IHAO1 – Reliable DC-DC Converter for Industrial Applications
Experience the reliable performance of the XP Power IHAO1 series DC-DC converter designed for industrial automation, power management, and control systems. It provides 1 watt of power with dual output options, high isolation of 6,000V, and can operate across a wide temperature range from -40°C to +85°C. Its compact SIP7 package makes it suitable for space-constrained environments. Ideal for applications requiring efficient power conversion, this converter ensures durability and high efficiency, making it an essential choice for industrial electronics and automation systems.
Get XP Power IHAO1 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER IHA0124S3V3?
You can click on the BUY or RFQ button to purchase IHA0124S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHA0124S3V3?
You can download the IHA0124S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHA0124S3V3?
XP POWER
