XP POWER JVA151500S12DF DC-DC Converter
The JVA15 Series DC-DC Converter by XP Power provides reliable 15W power output with a broad input voltage range from 200-1500 VDC, suitable for renewable energy, industrial, and electric vehicle applications. It features ultra-wide input voltage, high isolation (4000 VAC for 60s), and a compact, fully encapsulated PCB or DIN rail versions. Operating efficiently between -40°C to +70°C, it includes optional filters, fuse, and EMI protection. With protections like short circuit, overvoltage, and overload, this converter ensures safety and durability in challenging environments, ideal for demanding energy and automation projects.
XP POWER JVA151500S12DF DC-DC Converter Specifications:
- Input Voltage Range: 200-1500 VDC, with derating at higher voltages
- Output Power: 15W, with models providing 5V, 12V, 24V outputs
- Output Voltage Tolerance: ±22%
- Operating Temperature: -40°C to +70°C, derating applies above 50°C
- Isolation Voltage: 4000 VAC for 60 seconds
- Efficiency: Up to 72%
- Ripple & Noise: 300-750 mV pk-pk (20 MHz bandwidth)
- Protection: Short circuit, overvoltage, overload with auto-recovery
- Dimensions: 92 x 2.95 x 1.57 inches (124.9 x 74.9 x 40.0 mm)
- Weight: Standard PCB mount 0.66 lbs (300 g), optional DIN rail with filter 1.34 lbs (610 g)
- Operating Altitude: Up to 5000 meters, with derating
- Vibration and Shock Resistance: Meets EN60068 standards
- EMC Immunity & Surge Standards: EN55024, EN61000-4-2/3/4/5/6/8
- Certifications: EN62109, UL, CSA, compliant with photovoltaic power standards

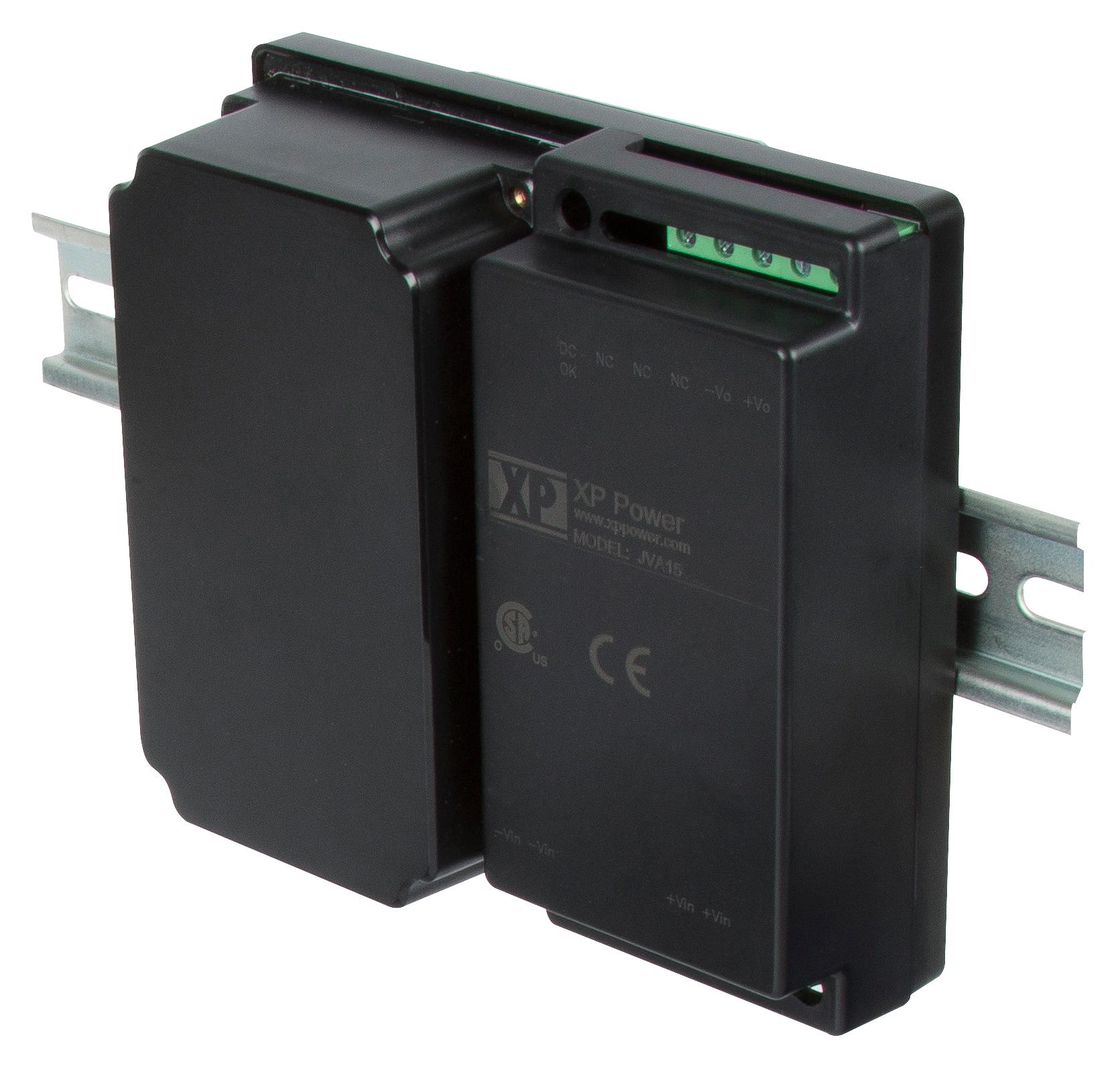

Buy the Buy XP Power JVA15 Series DC-DC Converter Part Number JVA151500S12DF Online
Discover the high-performance XP Power JVA15 Series DC-DC Converter, offering 15W output with an ultra-wide 200-1500 VDC input range. Its robust isolation, efficiency up to 72%, and comprehensive protections ensure reliable operation in renewable energy, industrial automation, and EV applications. The compact, fully encapsulated design is available in PCB and DIN rail mount versions, with optional filters and fuse for enhanced safety. Trust in its durability under extreme temperatures, vibration, and shock, making it an ideal choice for demanding energy conversion and control solutions. Buy online now for fast delivery and quality assurance.
Order your XP Power JVA15 Series DC-DC Converter with high isolation and wide input range today and ensure robust power delivery for industrial and renewable energy projects.
Frequently Asked Questions
Where can I buy XP POWER JVA151500S12DF?
You can click on the BUY or RFQ button to purchase JVA151500S12DF from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JVA151500S12DF?
You can download the JVA151500S12DF datasheet or visit the XP POWER website for support.
Who is the manufacturer of JVA151500S12DF?
XP POWER
