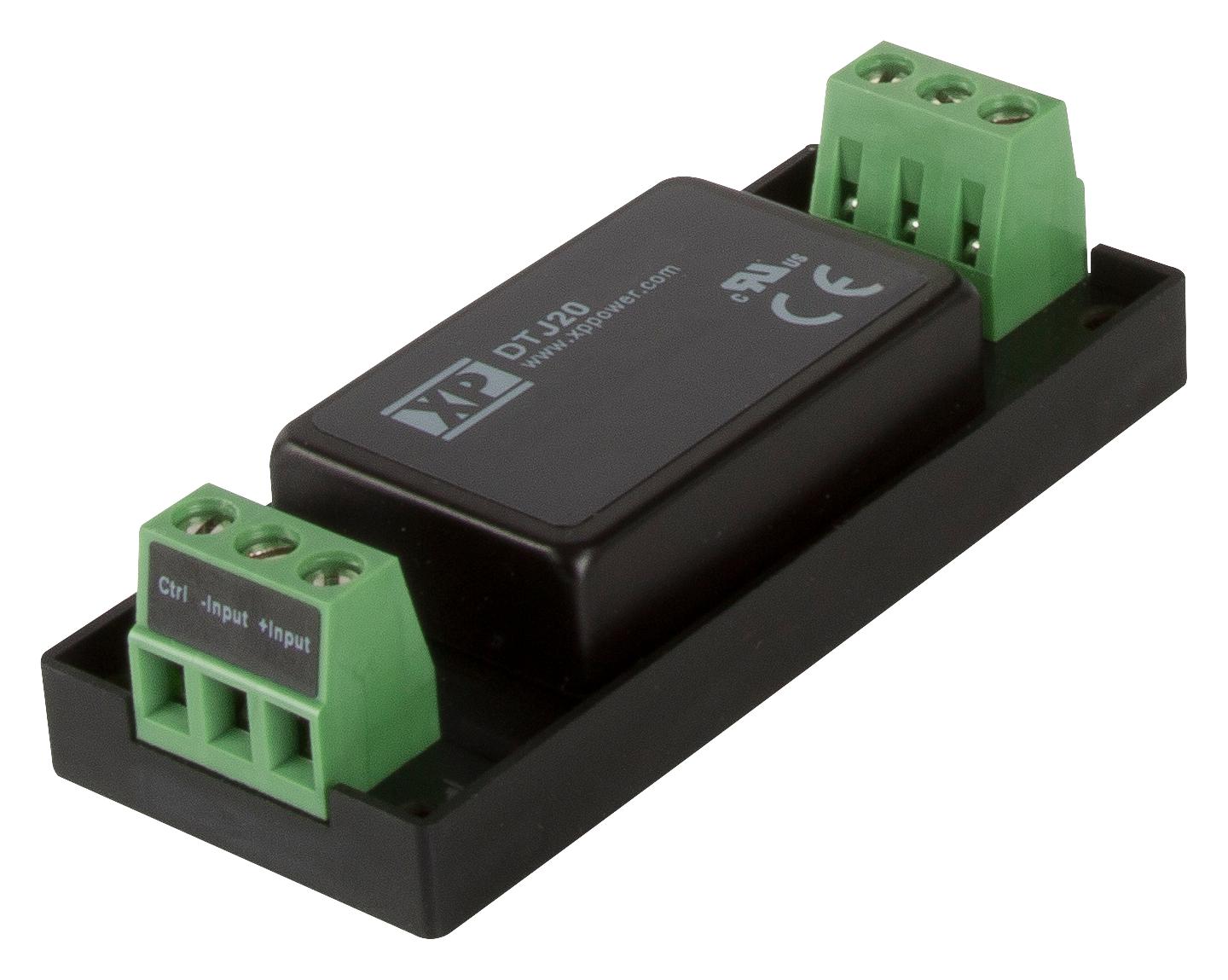

XP POWER DTJ2024S3V3 DC-DC Power Supply
The DTJ20 series of chassis mount DC to DC power supplies offers a reliable and versatile solution for industrial and commercial applications. These power supplies feature a wide 4:1 input voltage range, lightweight construction, and built-in protections including short circuit and reverse polarity protection, as well as soft start. They are certified with IEC/UL/cUL 62368-1 safety approvals and meet EN55032 Class A standards. Additional features include remote on/off control, voltage trimming, and 3KVDC isolation. They operate effectively from -40°C to +100°C, delivering full power up to 80°C, and have a compact dimension of 3.00 inches by 1.24 inches by 0.77 inches (76.2mm x 31.4mm x 19.4mm).
XP POWER DTJ2024S3V3 DC-DC Power Supply Specifications:
- Input Voltage Range: 9-36 VDC (12V & 24V nominal), 8.75-75 VDC (24V & 48V nominal)
- Output Voltage: 3.3V to 30V, with models and ratings for different voltages
- Output Current: up to 350A depending on model
- Isolation Voltage: 3000 VDC for 60 seconds
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +100°C, full power up to 80°C
- Dimensions: 3.00 inches (76.2mm) x 1.24 inches (31.4mm) x 0.77 inches (19.4mm)
- Protection Features: Short circuit, reverse polarity, overvoltage, overload, soft start
- Certifications: IEC/UL/cUL 62368-1, EN55032 Class A
- Additional Features: Remote on/off, voltage trim, 3KVDC isolation, lightweight construction
- Storage Temperature: -55°C to +125°C
- Case Material: Non-conductive black plastic (UL 94V-0), optional heatsink available
Buy the Toya Series DC-DC Converter: DTJ2024S3V3
Secure your industrial power needs with the Toya Series DC-DC Converter. Offering wide input ranges, high efficiency up to 89%, and robust protections including short circuit and reverse polarity, this lightweight power supply ensures reliable operation from -40°C to +100°C. Its compact footprint of 3 inches by 1.24 inches by 0.77 inches makes it ideal for tight spaces. Certified with IEC/UL safety standards, it features remote on/off, voltage trimming, and 3KVDC isolation, perfect for demanding industrial environments—buy online today for fast and secure delivery.
Buy Toya Series DC-DC Converter DTJ2024S3V3 now and experience unmatched reliability and versatility in industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER DTJ2024S3V3?
You can click on the BUY or RFQ button to purchase DTJ2024S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ2024S3V3?
You can download the DTJ2024S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ2024S3V3?
XP POWER
