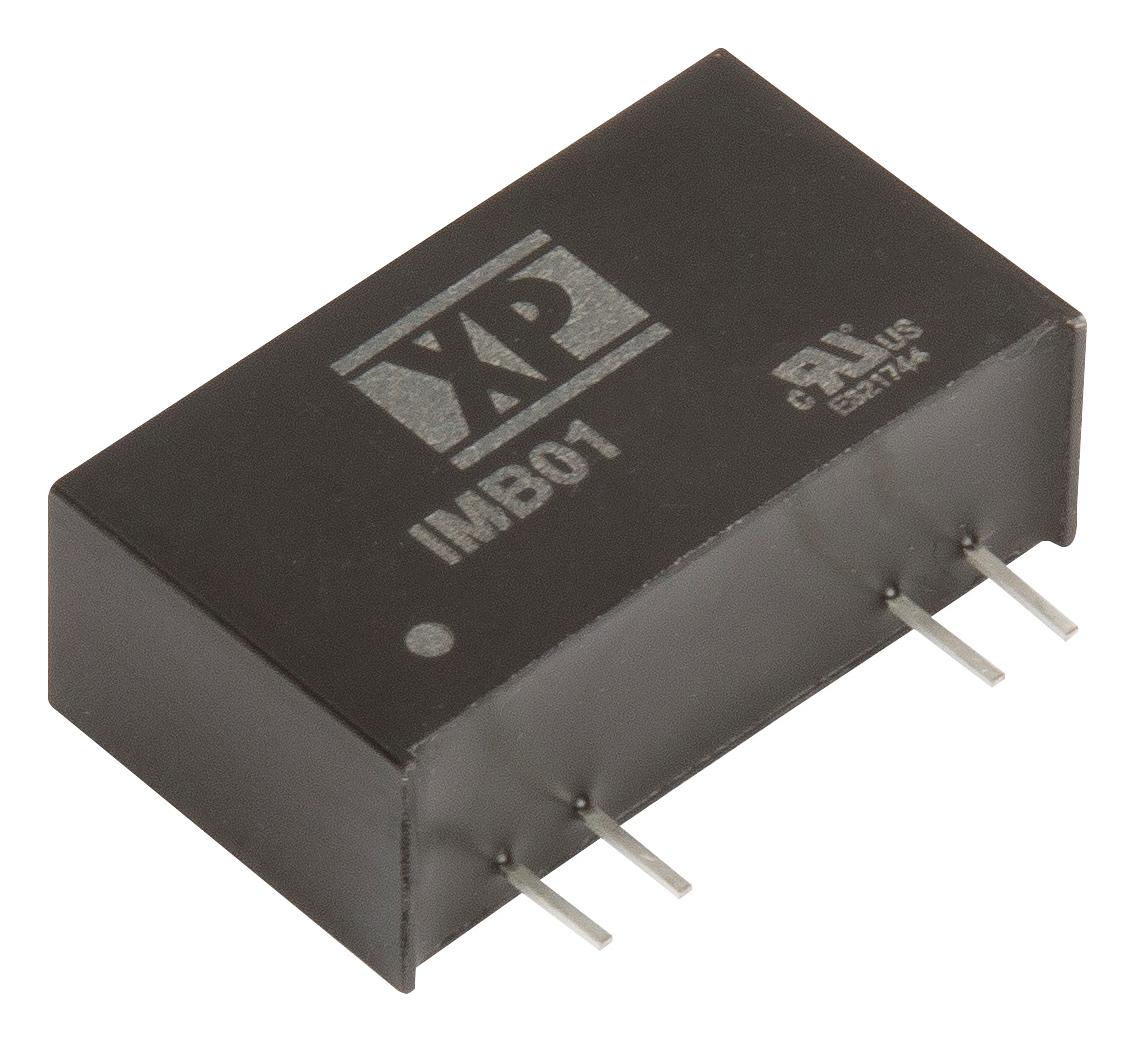

XP POWER IMB0124S12 Medical DC-DC Converter
The IMBO1 series is a compact, medical-grade DC-DC converter offering 1 watt power with a single unregulated output for medical applications. It features an IEC60601-1 compliant design with reinforced isolation of 4000 VAC, 2 x MOPP at 300 VAC, low leakage current of 2μA, and operation capability up to +85°C. The SIP7 package includes short circuit protection and high reliability with an MTBF of 43 million hours. Suitable for medical devices, it ensures safety, efficiency, and durability in critical healthcare environments.
XP POWER IMB0124S12 Medical DC-DC Converter Specifications:
- Input Voltage Range: 10.8V to 13.2V (12V nominal), 21.6V to 26.4V (24V nominal)
- Output Voltage: 5V, 15V, or other models listed in ratings table
- Output Current: Varies by model, typically up to 200mA
- Isolation: Reinforced, 4000 VAC for 60 seconds, 2 x MOPP at 300VAC
- Leakage Current: 2μA patient leakage
- Operating Temperature: -40°C to +85°C, derated at high temperatures
- Efficiency: Approximately 80%
- MTBF: 43 million hours
- Package: SIP7, dimensions approximately 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5 mm)
- Material: Non-conductive black plastic, UL94V-0 rated
- Switching Frequency: 12-28 kHz, may enter burst mode at light loads
- Dimensions: 22.0 x 12.5 x 7.5 mm typical, pin diameter 0.02 inches
- Operating Altitude: Up to 5000 meters, storage up to 10,000 meters
- Humidity: Up to 5% RH non-condensing
- Cooling: Natural convection
- Certifications: Meets IEC60601-1, ISO 14971, EN60601-1 standards
Buy the Buy XP Power IMBO1 Series DC-DC Converter Part Number IMB0124S12 Online
Discover the high reliability and safety of the XP Power IMBO1 series medical DC-DC converters. Compact and efficient, these converters feature reinforced isolation of 4000 VAC, low leakage current, and operation up to +85°C. Suitable for critical healthcare applications, they ensure optimal safety and performance in medical devices. With broad input voltage ranges, built-in short circuit protection, and proven durability with an MTBF of 43 million hours, purchasing online guarantees swift delivery and consistent quality for your healthcare projects.
Order your XP Power IMBO1 Series IMB0124S12 today and ensure your medical projects have dependable, high-quality power conversion.
Frequently Asked Questions
Where can I buy XP POWER IMB0124S12?
You can click on the BUY or RFQ button to purchase IMB0124S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0124S12?
You can download the IMB0124S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0124S12?
XP POWER
