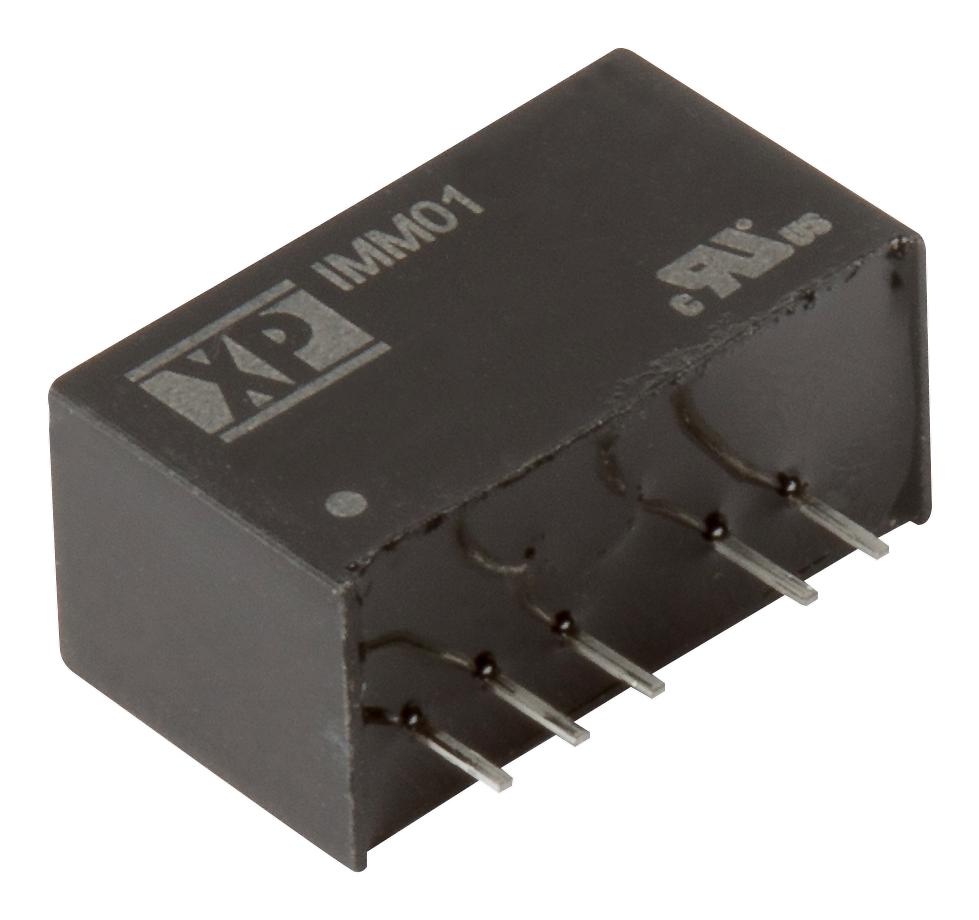

XP POWER IMM0112D15 DC-DC Converter
The IMM01 series is a 1W DC-DC converter available in single and dual output configurations, housed in a compact SIP7 package. It is designed for medical and industrial use, meeting international safety standards including UL, EN60601-1, and CSA. The converter features low patient leakage current of 2 microamps, 1500VAC isolation, and protections like short circuit management with auto recovery. Operating from -20°C to 100°C, it supports full load at 60°C ambient, making it ideal for power management, medical equipment, and industrial control applications.
XP POWER IMM0112D15 DC-DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 3V3 to 45-90V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 28V, 30V
- Output Current: up to 337 mA depending on model
- Isolation Voltage: 1500 VAC, 1 MOPP
- Leakage Current: 2 microamperes
- Operating Temperature: -20°C to +100°C
- Load at 60°C Ambient: Full load supported
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Packaging: SIP7
- Protection: Continuous short circuit fold-back mode with auto recovery
- Switching Frequency: 175 to 7000 kHz
- Isolation Resistance: 10^9 ohms
- Weight: 3.6 grams
- Certifications: UL, EN60601-1, CSA, CB, IEC60601-1
- Maximum Temperature during operation: 105°C case temperature
Buy the XP Power Series IMM01 1W DC-DC Converter: IMM0112D15
Upgrade your medical and industrial power solutions with the XP Power IMM0112D15 DC-DC converter. This compact, 1-watt device offers dual output options, high isolation of 1500VAC, and ultra-low leakage current of just 2 microamps for patient safety. Its wide operating temperature from -20°C to +100°C ensures reliable operation in diverse environments. Designed with a SIP7 package, it provides full load performance at 60°C ambient and features automatic short circuit protection. Ideal for medical equipment, industrial controls, and power management applications requiring high safety standards and durability.
Get XP Power IMM0112D15 today—built for medical-grade reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER IMM0112D15?
You can click on the BUY or RFQ button to purchase IMM0112D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0112D15?
You can download the IMM0112D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0112D15?
XP POWER
