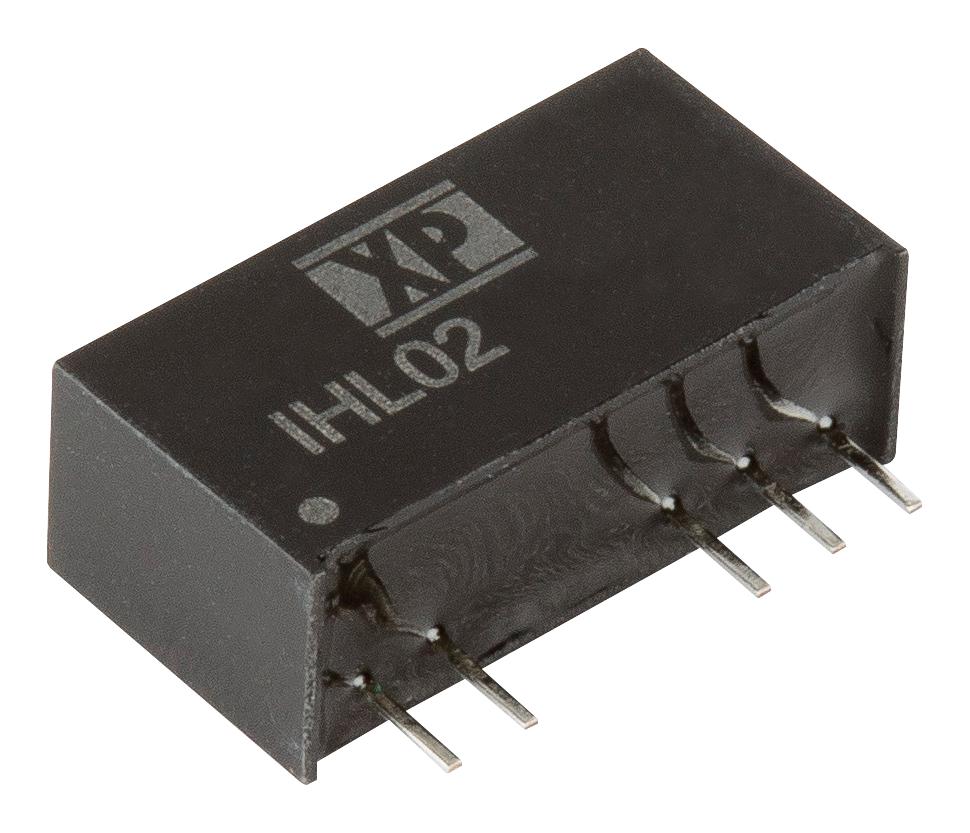

XP POWER IHL0205D09 High Isolation DC-DC Converter
The IHL02 series is a 2W dual-output DC to DC converter housed in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drives, with high isolation of 5,200V DC and a working voltage of 250VAC. The converter supports both single and dual output configurations, offers continuous short circuit protection, and operates effectively within a temperature range of -40°C to 95°C. It is suitable for power management and industrial applications, providing reliable performance with full load capacity at a 65°C ambient temperature.
XP POWER IHL0205D09 High Isolation DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200V DC
- Working Voltage: 250VAC
- Output Voltage: Bipolar, configured for MOSFET & IGBT drives
- Input Voltage Range: 13.5V to 165V
- Output Voltage Range: 3.3V to 30V (varies per model)
- Output Current: Up to approximately 70mA
- Isolation Capacitance: 7 pF
- Isolation Resistance: 10Ω
- Efficiency: ~80%
- Operating Temperature Range: -40°C to +95°C
- Humidity: 25% to 95% RH, non-condensing
- Case Material: Non-conductive UL94V-0 plastic
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Shock & Vibration: Meets industry standards
- Protection: Continuous short circuit, auto recovery
- MTBF: 3.3 million hours
- Compliance: CE, UKCA
Buy the Buy XP Power IHL0205D09 Part Number IHL0205D09 Online
Purchase the XP Power high isolation DC-DC converter online today to enjoy reliable power management solutions designed for industrial applications. With 2W power output, 5200V DC isolation, and bipolar outputs suitable for MOSFET and IGBT drives, this converter ensures optimal performance and safety. Its wide temperature range from -40°C to 95°C makes it ideal for harsh environments. Order now to benefit from fast shipping, excellent customer service, and the peace of mind that comes with trusted quality and efficiency in power conversion.
Buy XP Power IHL0205D09 now and experience unmatched reliability and performance in industrial power conversion.
Frequently Asked Questions
Where can I buy XP POWER IHL0205D09?
You can click on the BUY or RFQ button to purchase IHL0205D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205D09?
You can download the IHL0205D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205D09?
XP POWER
