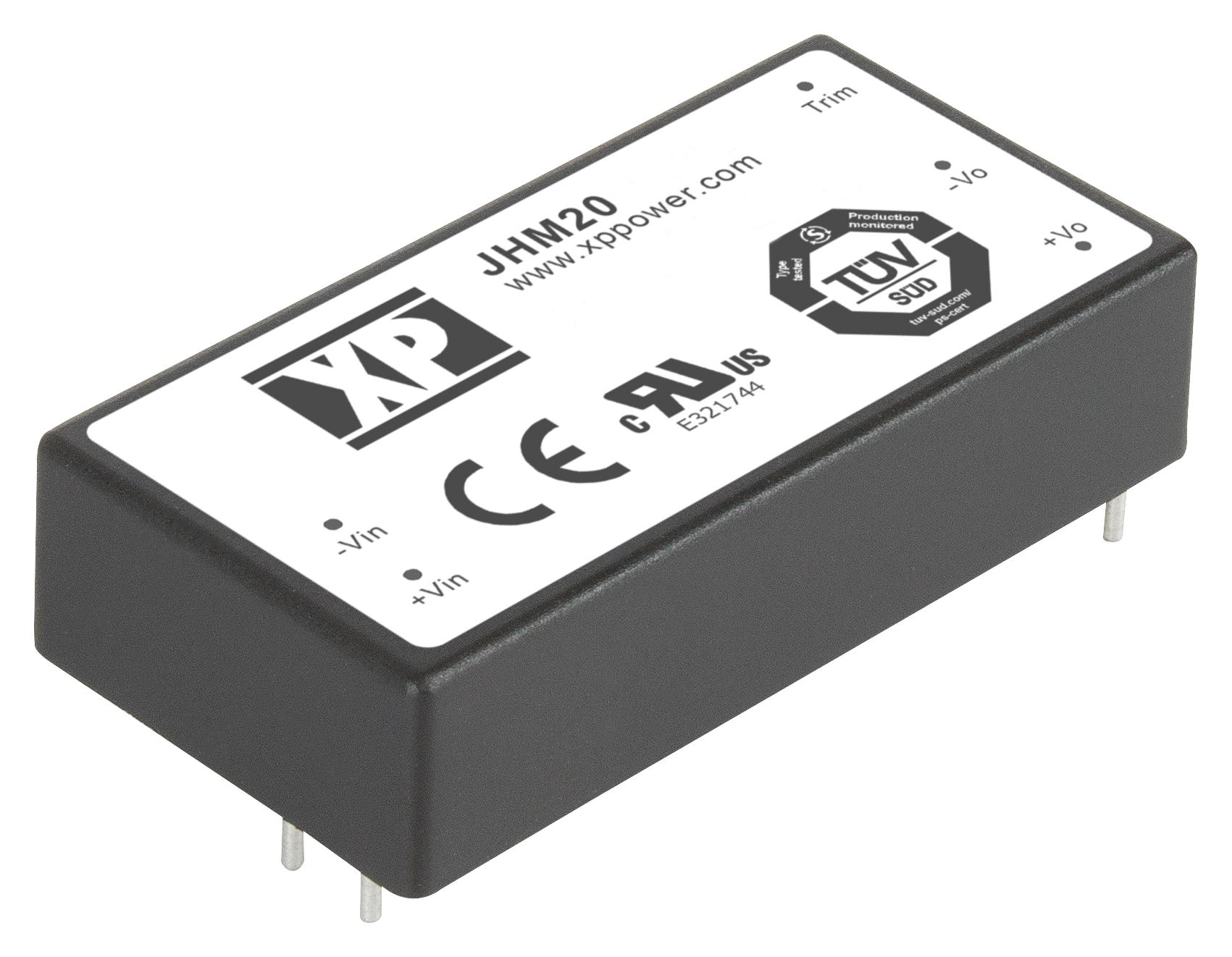

XP POWER JHM2048S15 Medical Power Module
The JHM20 series of DC-DC modules offers a compact and reliable power solution compliant with international medical safety standards. Features include regulated single and dual outputs ranging from 5V to 30V DC, with single outputs adjustable within ±10%. These modules support a 2:1 input voltage range, have a 2 x 1-inch PCB footprint, and provide reinforced isolation of 4kVAC. They operate with a 2 x MOPP at a 250VAC working voltage, feature low patient leakage current of 2.5µA, and are certified according to IEC60601-1, 3rd Edition, including risk management. Additionally, they meet EN55011 Class A standards without the need for external components.
XP POWER JHM2048S15 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC, 2:1 range
- Output Voltage: 5V to 30V DC, adjustable ±10%
- Output Current: up to 1750 mA
- Efficiency: up to 88%
- Isolation Voltage: 4,000 VAC (double/reinforced), meets IEC60601-1
- Operating Temperature: -40°C to +80°C
- Dimensions: 2 x 1 x 0.4 inches (50.8 x 25.4 x 10.2 mm)
- Leakage Current: 2.5 µA
- Ripple & Noise: 1% pk-pk at 20 MHz bandwidth
- Short Circuit & Overload Protection: Yes, auto recovery
- Certifications: IEC60601-1, EN55011 Class A, UL, TUV, CSA
- Case Material: UL94V-0 rated plastic, potting with silicone
Buy the XP Power JHM20– Reliable Medical-Grade Power Modules for Industrial Applications
Secure your medical or industrial projects with the XP Power JHM20 series. These compact, reliable DC-DC modules offer regulated output from 5V to 30V, reinforced isolation, and certified safety standards including IEC60601-1. Ideal for demanding medical environments, they feature low leakage current, high efficiency, and robust short circuit protection. Easy to install with a 2 x 1-inch footprint, making them perfect for space-constrained applications. Purchase online today and guarantee your equipment operates safely and efficiently with trusted power modules.
Buy XP Power JHM20 series DC-DC converter now and ensure reliable, medical-grade power delivery for your medical and industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER JHM2048S15?
You can click on the BUY or RFQ button to purchase JHM2048S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2048S15?
You can download the JHM2048S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2048S15?
XP POWER
