XP POWER IMM0524S15 Medical Isolated DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution suitable for medical applications, offering isolation between input and output with low leakage current. These converters feature regulated single and dual outputs ranging from 3.3VDC to ±15VDC, with a 2:1 input voltage range. They are certified for worldwide medical standards, come in a compact SIP9 package, and provide 1500VAC isolation and a 1 x MOPP at 250VAC. Additional features include remote on/off control, operation from -40°C to +100°C (full load up to +60°C). They are ideal for medical equipment requiring reliable power with isolation and safety compliance.
XP POWER IMM0524S15 Medical Isolated DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 4.5-9.0V, 9-18V, 18-36V with 2:1 ratio
- Output Voltage: from 3.3 VDC to ±15 VDC
- Output Current: up to 705 mA (single/multi-output models)
- Isolation: 1500 VAC
- Temperature Range: -40°C to +100°C (operation), full load up to +60°C
- Package: SIP9
- Protection: Remote On/Off, continuous short circuit fold-back
- Certifications: Medical safety (BF & CF), IEC/EN 60601-1, UL, CSA
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Isolation Resistance: 10^9 Ω
- Isolation Capacitance: Low pF range
- Efficiency: Up to 82%
- MTBF: 630,000 hours per MIL-HDBK-217F
- Mechanical: Non-conductive black plastic case, epoxy potting, tin-coated pins
- Operating Humidity: 5% to 95% RH non-condensing
- Cooling: Natural convection

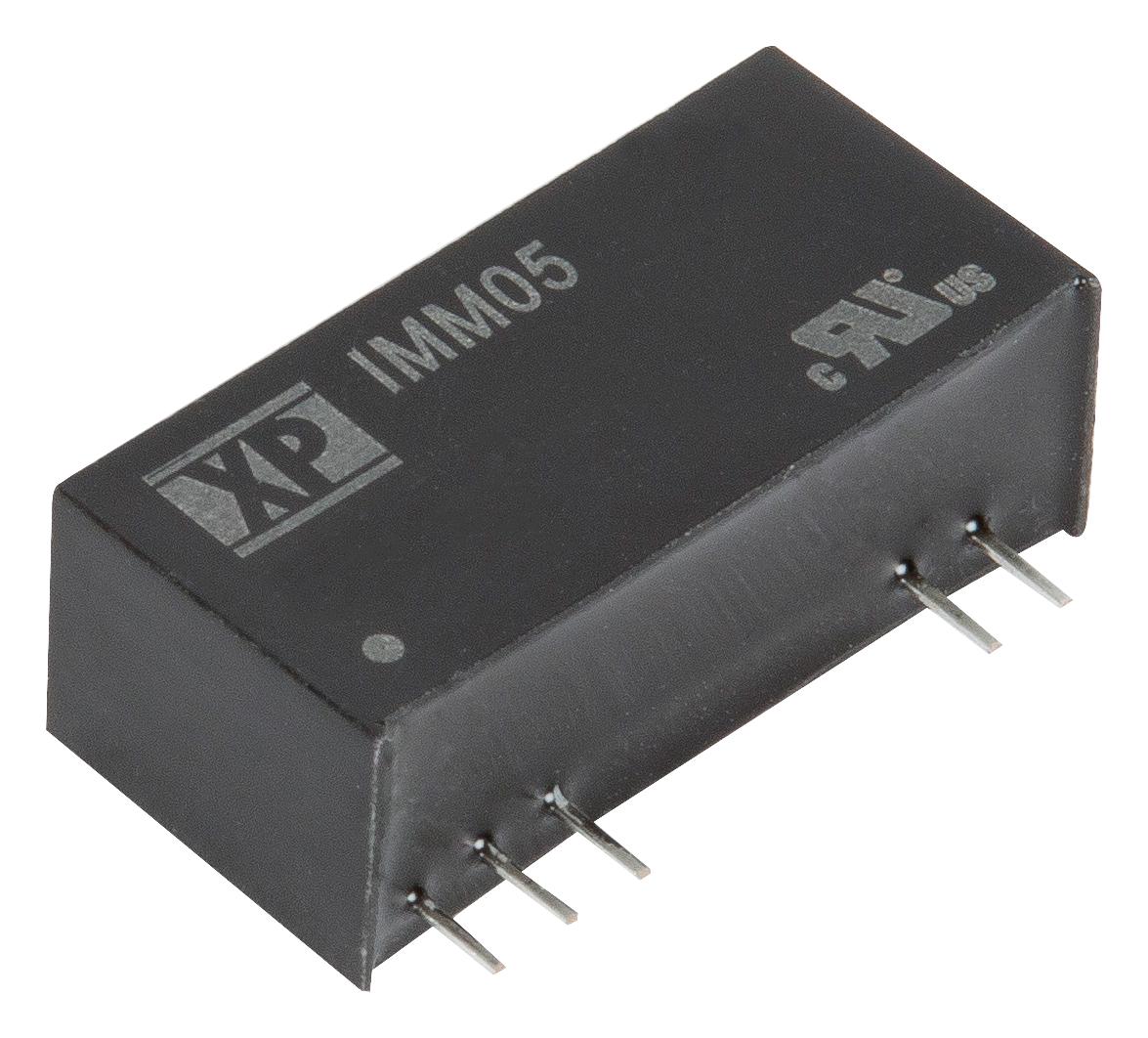

Buy the XP Power Series IMMO5 Medical Isolated DC-DC Converter: IMM0524S15
Purchase the XP Power IMM0524S15 medical isolated DC-DC converter online today. This ultra-compact 5W power solution offers regulated outputs from 3.3V to ±15V with 1500VAC isolation, ensuring high safety standards. Features include remote on/off control, wide operating temperature from -40°C to +100°C, and full compliance with international medical safety standards. Ideal for medical devices and systems requiring reliable power, low leakage current, and robust safety certifications. Secure your supply of quality power conversion components now for enhanced device safety and performance.
Get XP Power IMMO5 series IMM0524S15 today—designed for medical-grade precision, safety, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER IMM0524S15?
You can click on the BUY or RFQ button to purchase IMM0524S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0524S15?
You can download the IMM0524S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0524S15?
XP POWER
