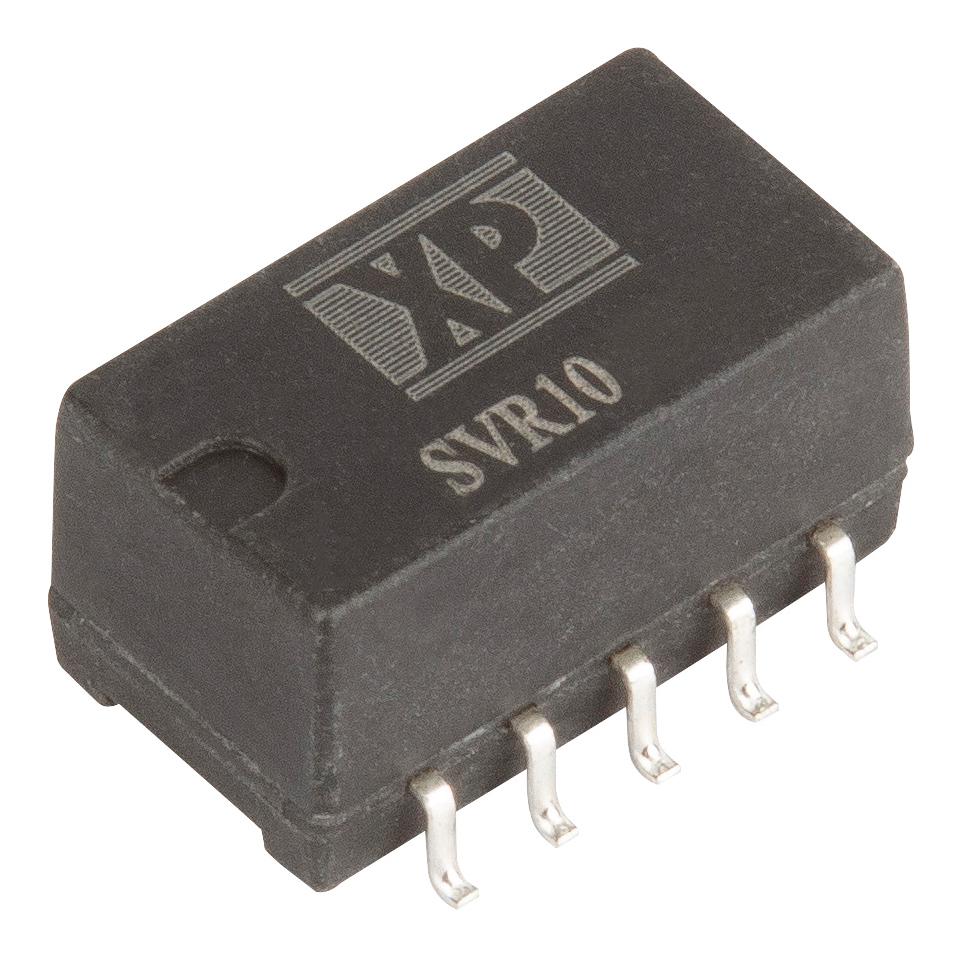

XP POWER SVR10S3V3 Switching Regulator
The SVR10 series is a compact, high-efficiency switching regulator designed for versatile industrial and embedded applications. Operating from a wide input voltage range of 4.75V to 36V, it provides adjustable output voltages from 1.5V to 12V DC, with efficiency levels reaching up to 92%. Features include remote on/off control, short circuit protection, high MTBF, low standby current, and compliance with safety standards. Its robust construction and customizable output make it ideal for instrumentation, process control, and embedded computing systems, offering reliable power in a small form factor.
XP POWER SVR10S3V3 Switching Regulator Specifications:
- Input Voltage Range: 4.75-36V
- Output Voltage Adjustment: 1.5V to 12V DC
- Output Current: 0.2mA to 810mA
- Efficiency: Up to 92%
- Dimensions: 0.6 x 0.335 x 0.315 inches (15.24 x 8.5 x 8.25mm)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Case Material: Non-conductive black plastic UL94V-0
- Protection: Short circuit, overcurrent, and thermal shutdown
- Switching Frequency: 520 to 700 kHz
- MTBF: >2 Million Hours
- Certification: UL, CSA compliant
- Ripple & Noise: Up to 75 mV pk-pk
- Remote On/Off: Yes
- Weight: Approx. 1.7g
- Water Wash Compatibility: Not suitable for water washing
Buy the XP Power SVR10S3V3 – Reliable Switching Regulator for Industrial Applications
Order the XP Power SVR10 Series switching regulator online today and enjoy a compact, high-efficiency power solution suitable for embedded computing, instrumentation, and process control systems. Featuring adjustable output voltages from 1.5V to 12V, remote on/off control, and short circuit protection, this regulator ensures reliable, safe operation across a wide input range of 4.75V to 36V. Designed with durability and performance in mind, it offers excellent efficiency up to 92%, making it ideal for industrial applications requiring compact power solutions. Secure your supply now and benefit from fast delivery and quality assurance.
Buy XP Power SVR10S3V3 now and experience unmatched reliability and high efficiency in power regulation for your industrial systems.
