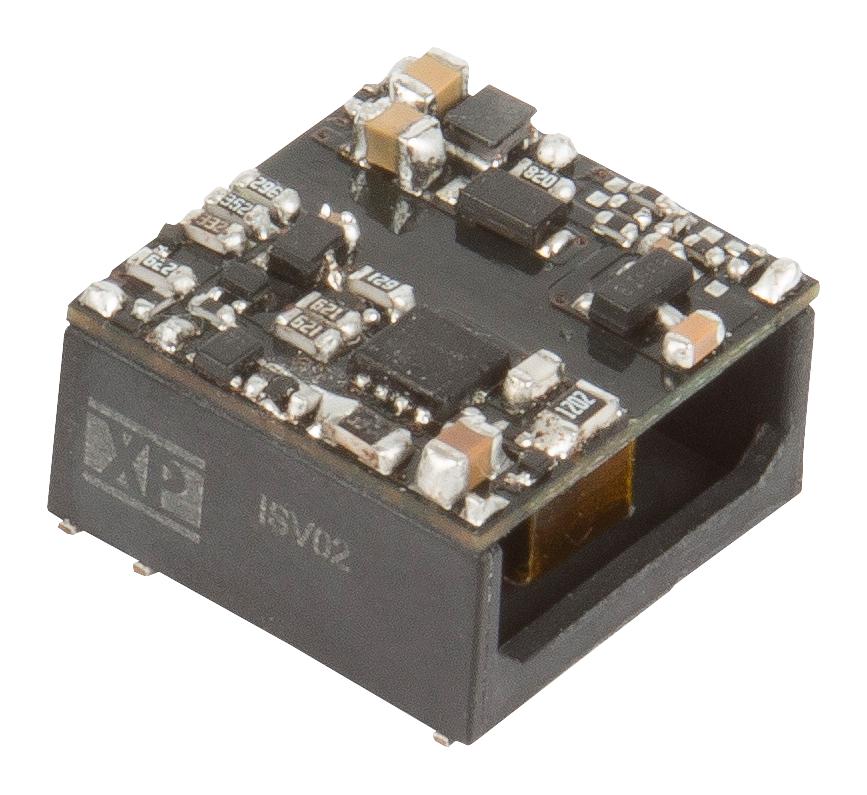

XP POWER ISV0212D12 DC-DC Converter Module
The ISV02 series is a compact surface-mount DC-DC converter module with open-frame construction. It offers high performance features including 3.0 kV isolation, a 4:1 input voltage range, and full load operation at temperatures up to +75°C. The converter provides either single or dual regulated outputs with remote on/off control, high reliability, and short circuit protection. Its ultra-compact SMD package makes it suitable for signal conditioning and voltage matching applications. Additional features include Class A conducted emissions, optional tape and reel packaging, and operation from -40°C to +75°C.
XP POWER ISV0212D12 DC-DC Converter Module Specifications:
- Input Voltage Range: 9.0V to 36.0V, 4:1 range
- Output Voltage: 5V to 30V, adjustable
- Output Current: Up to 2A depending on model
- Efficiency: Up to 80%
- Isolation Voltage: 3.0kV
- Temperature Range: -40°C to +75°C
- Operating Temperature: Full load to +75°C
- Isolation Resistance: 1% at 500VDC
- Isolation Capacitance: 25pF
- Dimensions: Ultra-compact SMD package, specifics vary by model
- Certification: UL94V-0 rated case, Class A conducted emissions
- Short Circuit Protection: Auto recovery, continuous
- Weight: Approximate 2.0g
- Vibration: Tested per MIL-STD 810F
- Soldering: Lead-Free reflow process, IPC/JEDEC J-STD-0200.1
Buy the XP Power Series DC-DC Converter: ISV0212D12
Experience high reliability and compact design with the XP Power ISV0212D12 DC-DC converter. Featuring 3.0 kV isolation, a 4:1 input range, and full load operation at temperatures up to +75°C, this module is perfect for applications requiring signal conditioning and voltage matching. Its open-frame SMD construction ensures easy integration into your system. With Class A conducted emissions, optional tape and reel packaging, and robust short circuit protection, it guarantees long-lasting performance. Purchase online today to enhance your power management solutions with proven quality and efficiency.
Get XP Power ISV0212D12 today—built for precision, reliability, and high performance in signal conditioning and voltage matching applications.
Frequently Asked Questions
Where can I buy XP POWER ISV0212D12?
You can click on the BUY or RFQ button to purchase ISV0212D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0212D12?
You can download the ISV0212D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0212D12?
XP POWER
