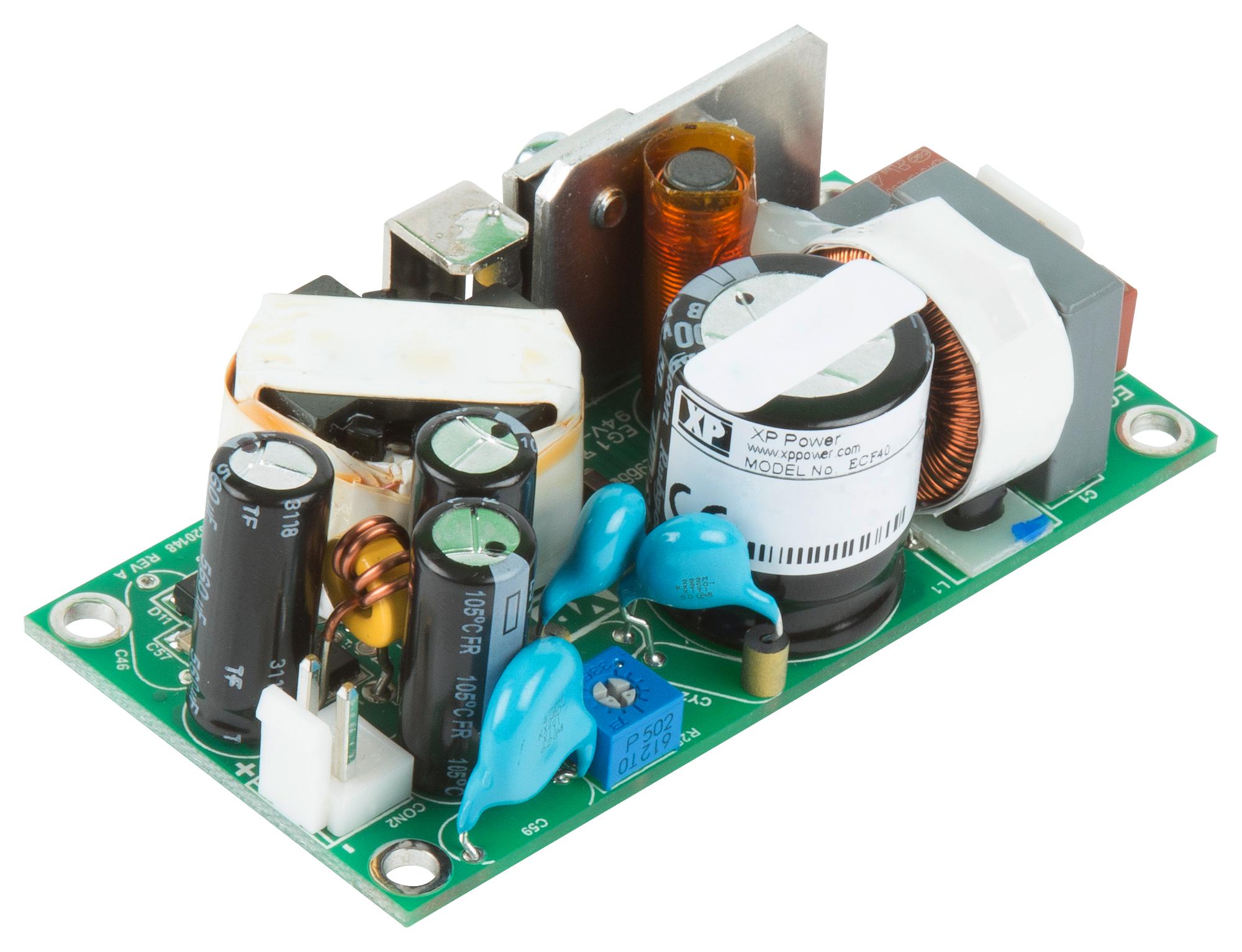

XP POWER ECF40US15 AC-DC Power Supply
The ECF40 series is a compact 40W open frame AC-DC power supply designed for efficient and reliable operation. It features a low profile of just 1.1 inches in height and a footprint of 1.5 inches by 3 inches, making it ideal for space-constrained applications. The power supply offers convection cooling capability over a wide input range of 90V to 264VAC, with minimal de-rating down to 80VAC. Suitable for medical and industrial (ITE) applications, it includes two AC line fuses and low leakage current compliance. Certified for various safety standards including IEC60950, UL60950-1, CSA 22.2 No.60950-1-11 Ed 2, EN60950-1, and IEC60601-1 Ed 3.1, it supports Class I and Class II installations and provides high efficiency and power density with less than 0.15W no-load input power.
XP POWER ECF40US15 AC-DC Power Supply Specifications:
- Output Power: 40 W
- Input Voltage Range: 90 - 264 VAC, minimum de-rating at 80 VAC
- Output Voltage: Various models (12V, 15V, 18V, 24V, 36V, 48V)
- Dimensions: 3.00 x 1.50 x 1.10 inches (76.2 x 38.1 x 28.0 mm)
- Efficiency: Up to 90% at full load
- No Load Power Consumption: Less than 0.15 W
- Operating Temperature: -25°C to +70°C, derating at higher temps
- Certifications: IEC60950, UL60950-1, CSA 22.2 No.60950-1-11, EN60950-1, IEC60601-1 Ed 3.1
- Safety Class: Supports Class I and Class II installations
- Features: Low profile, high power density, two AC line fuses, low leakage current
Buy the XP Power Series ECF40 Power Supply: ECF40US15
Purchase the XP Power ECF40US15 online today to ensure efficient, reliable, and space-saving power conversion for medical, industrial, and other demanding applications. This high-performance 40W power supply features a low profile, convection cooling, and broad input voltage compatibility, making it ideal for space-constrained environments. Certified for safety standards including IEC60601-1 for medical use, it guarantees safety, energy efficiency, and long-term durability. Order now to benefit from fast delivery and dedicated customer support, making your equipment design more flexible and compliant with international standards.
Buy XP Power ECF40US15 now and experience unmatched reliability and performance in space-saving high-efficiency power solutions.
Frequently Asked Questions
Where can I buy XP POWER ECF40US15?
You can click on the BUY or RFQ button to purchase ECF40US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECF40US15?
You can download the ECF40US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECF40US15?
XP POWER
