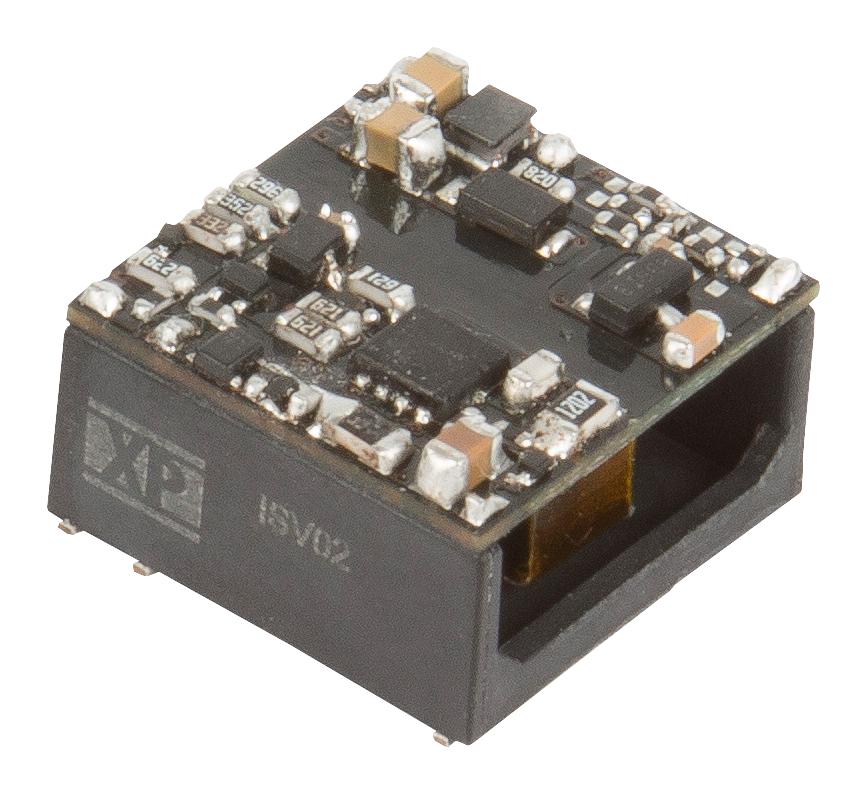

XP POWER ISV0212S05 DC-DC Converter
The ISV02 series is a compact surface-mount DC-DC converter designed with open-frame construction. It offers high performance features, including 3.0 kV isolation, a 4:1 input voltage range, and the capability to operate at full load up to 75°C. The converter includes remote on/off control, high reliability, and short circuit protection. Available in both single and dual output configurations, it is ideal for signal conditioning and voltage matching applications. Additional features include class A conducted emissions, a tape and reel packaging option, and an operational temperature range from -40°C to +75°C, with full output power at 75°C.
XP POWER ISV0212S05 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36.0V
- Output Voltage: 5V to 30V
- Output Current: Up to 2A
- Efficiency: Up to 80%
- Isolation Voltage: 3.0kVDC
- Isolation Resistance: 1GΩ at 500VDC
- Isolation Capacitance: 25pF
- Operating Temperature: -40°C to +75°C
- Full Power Operation Temperature: Up to 75°C
- Short Circuit Protection: Auto recovery, continuous
- Remote On/Off: Yes
- Dimensions: Compact SMD package
- Weight: Approximately 2g
- Vibration: MIL-STD-810F certified
- Case Material: Non-conductive UL94V-0 plastic
- Compliance: CE, UKCA, EN55032 Class A
Buy the XP Power ISV0212S05 – Reliable DC-DC Converter for Industrial Applications
Enhance your industrial projects with the reliable XP Power DC-DC Converter. Featuring 3kV isolation, a wide 4:1 input range, and dual outputs, it delivers excellent efficiency up to 80% and operates at full load up to 75°C. Compact and robust, with remote on/off and short circuit protection, it ensures stable power delivery for demanding applications. Choose this high-performance converter for signal conditioning, voltage matching, and automation systems. Purchase online today to enjoy fast delivery, quality assurance, and technical support from trusted suppliers.
Buy XP Power ISV0212S05 now and experience unmatched reliability and performance in signal conditioning and industrial power systems.
Frequently Asked Questions
Where can I buy XP POWER ISV0212S05?
You can click on the BUY or RFQ button to purchase ISV0212S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0212S05?
You can download the ISV0212S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0212S05?
XP POWER
