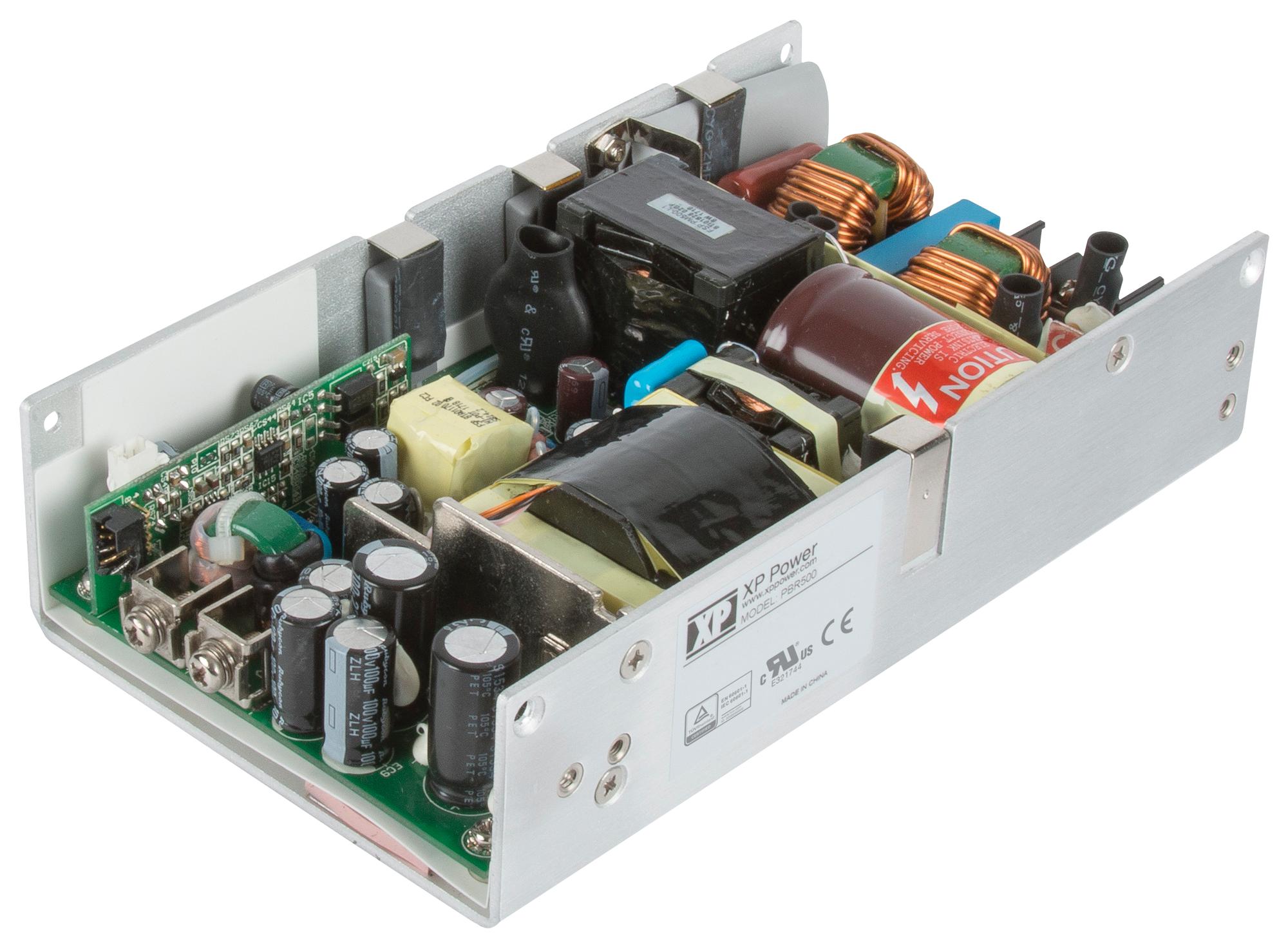

XP POWER PBR500PS12B Power Supply
The PBR500 series AC-DC power supplies deliver 350-500 Watts, with options for forced air cooling or convection cooling up to 400W. Built on a U-channel for mechanical support and heat sinking, they are suitable for industrial and medical applications, including BF-rated insulation. Designed for operation at altitudes up to 5000 meters, features include 5V standby and 12V fan outputs, Power OK, Inhibit, and Remote Sense functions. Compliance with Class B emissions standards and a compact size of 7 x 4 x 1.7 inches make them ideal for critical equipment requiring reliable power supply.
XP POWER PBR500PS12B Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63 Hz
- Input Current (Full Load): 5.27A at 116/230 VAC
- Output Power: 350W (convection), 450-500W (forced cooling)
- Output Voltage Range: 12V to 57V depending on model
- Output Ripple & Noise: up to 280 mV pk-pk
- Efficiency: 90%
- Cooling: forced air or convection
- Dimensions: 7.0 x 4.00 x 1.70 inches (177.8 x 101.6 x 44.5 mm)
- Operating Temperature: -10°C to +70°C
- Altitude: up to 5000 meters
- Certifications: ITE & Medical (BF), UL60601-1, CSA 622.2, EN62368-1
- Safety Standards: EN55011/EN55032 Class B, harmonics, surge, EFT compliance
Buy the Buy Power Supplies AC-DC Output 500 Watts Part Number PBR500PS12B Online
Purchase the PBR500 series power supply online today to ensure your equipment receives stable, efficient power. Designed for industrial and medical applications, this power supply offers high efficiency, multiple outputs, and compliance with safety and emissions standards. With options for forced air cooling or convection, it delivers between 350W and 500W, tailored for demanding environments. Its compact size and high-altitude capability make it perfect for diverse setups. Get the best in power reliability and safety by ordering now.
Buy Power Supplies AC-DC PBR500PS12B now and experience unmatched reliability and performance in industrial and medical applications.
Frequently Asked Questions
Where can I buy XP POWER PBR500PS12B?
You can click on the BUY or RFQ button to purchase PBR500PS12B from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR500PS12B?
You can download the PBR500PS12B datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR500PS12B?
XP POWER
