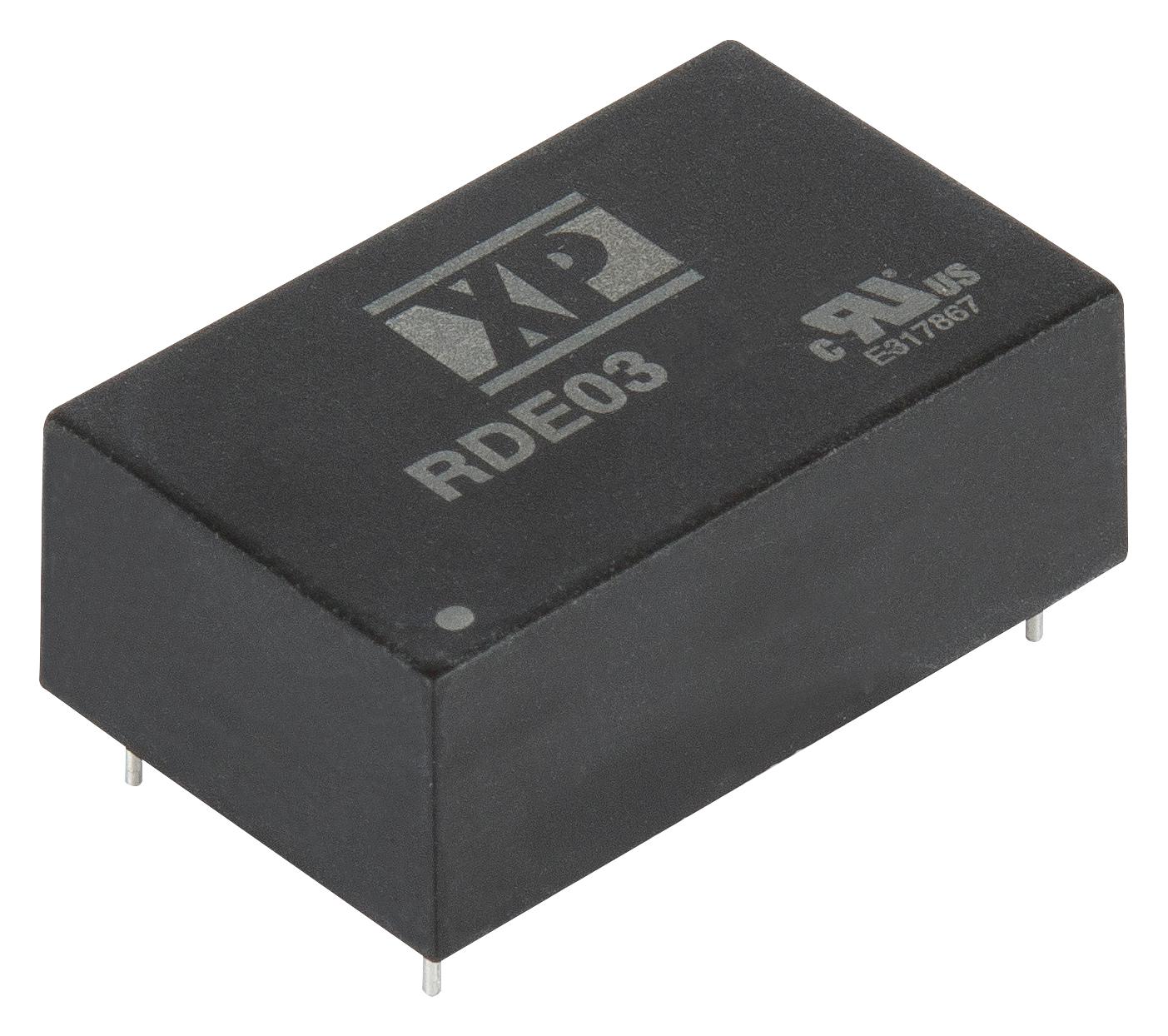

XP POWER RDE0324S05 DC-DC Converter
The RDEO3 series DC-DC converters are compact, regulated single and dual output power modules designed for railway and industrial applications. They feature wide 4:1 input ranges, covering 72V and 110VDC rail voltages, with reinforced isolation of 3000 VAC and full power operation up to +105°C. These converters meet stringent standards including EN50155, IEC60571, and EN50121-3-2, with no external filter required. Their robust construction ensures reliable performance in demanding environments, supported by a 3-year warranty, making them ideal for rolling stock and automation systems.
XP POWER RDE0324S05 DC-DC Converter Specifications:
- Input Voltage Range: 18-75 VDC or 48 V nominal, 72/110 VDC surge protection
- Output Voltage: 5V, 12V, 15V, 18V-75V options
- Output Current: up to 600 mA
- Isolation: 3000 VAC reinforced
- Efficiency: up to 85%
- Operating Temperature: -40°C to +105°C
- Protection: Overload and short circuit with auto recovery
- Ripple & Noise: 50/75 mV pk-pk
- Dimensions: 31.8 x 20.3 x 12.0 mm (1.25 x 0.8 x 0.47 inches)
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -50°C to +125°C
- Certifications: EN50155, IEC60571, EN50121-3-2, UL/cUL
- Isolation Resistance: 10^9 Ω at 500 VDC
- Switching Frequency: 170/285 kHz
- Weight: approximately 15.4 grams
Buy the Buy XP Power RDEO3 Series Part Number RDE0324S05 Online
Order the XP Power RDEO3 series DC-DC converters online today to ensure high-performance, reliable power conversion for railway applications. These compact modules deliver regulated output voltages with reinforced isolation, broad input ranges, and excellent efficiency up to 85%. Designed to operate in extreme temperatures from -40°C to +105°C, they meet critical standards including EN50155, IEC60571, and EN50121-3-2. With no external filter needed, easy integration and long-term support are guaranteed, making them ideal for demanding rail and industrial environments.
Buy XP Power RDE0324S05 now and experience unmatched reliability and performance in railway control systems.
Frequently Asked Questions
Where can I buy XP POWER RDE0324S05?
You can click on the BUY or RFQ button to purchase RDE0324S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDE0324S05?
You can download the RDE0324S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDE0324S05?
XP POWER
