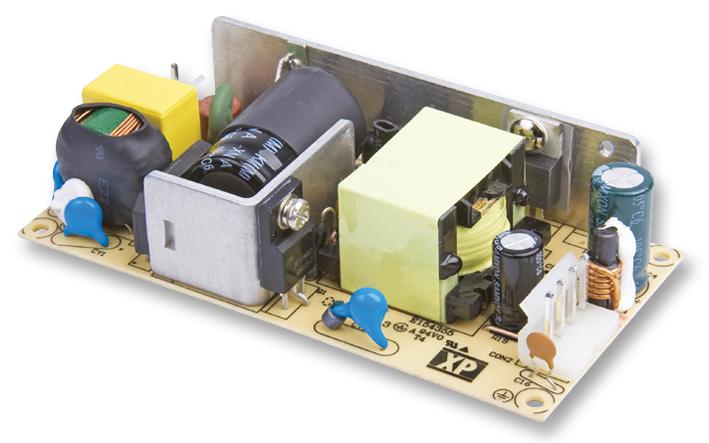

XP POWER VCT60US15 Industrial Power Supply
The VCT60US15 power supply offers reliable and efficient output for industrial applications, functioning within a wide input voltage range of 85-264 VAC at 47-63 Hz. It features high efficiency, low no-load power consumption, and robust protections including overload, overvoltage, and short circuit safety. Designed for convection cooling, it provides stable output voltages from 5V to 24V with currents up to 8A, suitable for automation, control systems, and industrial electronics. Its advanced EMI and safety certifications ensure compliance and dependable long-term operation in demanding environments.
XP POWER VCT60US15 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 1.7 A max at 115 VAC, 0.85 A max at 230 VAC
- No Load Input Power: <0.5 W
- Input Protection: Internal T3.15A/250 V fuse
- Output Voltage: 5V / 8A, 12V / 5A, 15V / 4A, 24V / 3A
- Output Voltage Trim: See table for specific voltages
- Efficiency: Up to 88%
- Isolation: 3000 VAC input to output, 1500 VAC input to ground
- Temperature Range: -10°C to +70°C (derate from 100% load at 50°C)
- Cooling: Natural convection
- Operating Humidity: 5% to 90% RH, non-condensing
- Operating Altitude: Up to 3000 meters
- Shock & Vibration: IEC standards compliance, 30 g shock, 10-500Hz vibration
- EMC & Safety: EN55022 level B, EN61000 series immunity, UL60950-1, IEC60950-1
- Dimensions: 2” x 4” x 1.4” (approx. 50.8 x 101.6 x 35.6 mm)
- Weight: 0.29 lbs (130 g)
Buy the Reliable Power Supply – Accurate Voltage Control for Industrial Applications
Purchase the VCT60US15 industrial power supply online today—engineered for reliability and efficiency with wide input voltage compatibility, high efficiency ratings, and comprehensive safety features including overload and overvoltage protections. Its robust construction provides stable output voltages from 5V to 24V, suitable for automation, control systems, and electronic devices in demanding industrial environments. Enjoy fast delivery, secure shopping, and excellent customer support to ensure your project’s success and operational continuity.
Get VCT60US15 today—built for precision, efficiency, and long-lasting durability in industrial environments.
