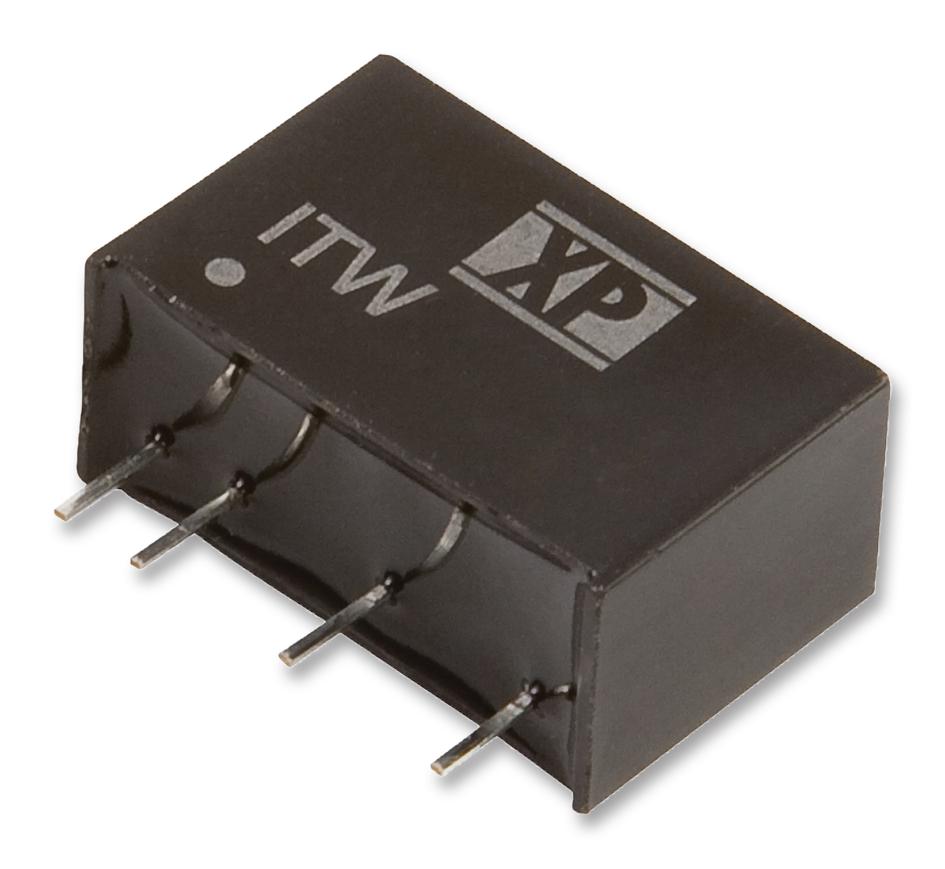

XP POWER ITW2405SA Industrial DC-DC Converter
The ITW2405SA is a compact, 1-watt DC-DC converter designed for industrial applications. It features a 2:1 input voltage range, fully regulated output, and 1500 VDC isolation, ensuring high performance and safety compliance. Operating from -40°C to +105°C, it requires no minimum load and provides dual outputs for versatile integration. Its small size, 0.67 x 0.43 x 0.30 inches, makes it suitable for space-constrained environments, while its auto-recovery short circuit protection and high efficiency up to 81% enhance reliability in demanding industrial settings.
XP POWER ITW2405SA Industrial DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-150 VDC, 48-75 VDC sections available
- Output Voltage: Custom models including 5V, 12V, 15V, and 24V
- Output Current: Ranges from 27 mA to 4105 mA depending on model
- Isolation Voltage: 1500 VDC
- Efficiency: Up to 81%
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.67 x 0.43 x 0.30 inches (17.0 x 11.0 x 7.6 mm)
- Input Ripple: 35 mV pk-pk, Surge Voltage: up to 100 VDC for 1000 ms
- Transient Response: 3% deviation within 2 ms
- Short Circuit Protection: Continuous auto-recovery
- Switching Frequency: 150-550 kHz, variable
- Isolation Resistance: 10 MΩ
- Weight: 8.0 grams
- Certifications: UL60950-1, UL62368-1
- Compliance: Meets applicable safety and EMI standards
Buy the XP Power ITW2405SA – Reliable DC-DC Converter for Industrial Applications
Upgrade your industrial power systems with the XP Power ITW2405SA DC-DC converter. Offering 1 watt of power, a 2:1 input range, 1500 VDC isolation, and no minimum load requirement, it guarantees reliable performance in harsh environments. Its small size and high efficiency make it perfect for space-limited applications, while its robust safety features ensure compliance with industry standards. Purchase online today and improve your project’s stability and safety with proven power conversion technology.
Order your XP Power Series ITW2405SA compact DC-DC converter today and ensure your projects benefit from dependable, high-quality power conversion solutions.
