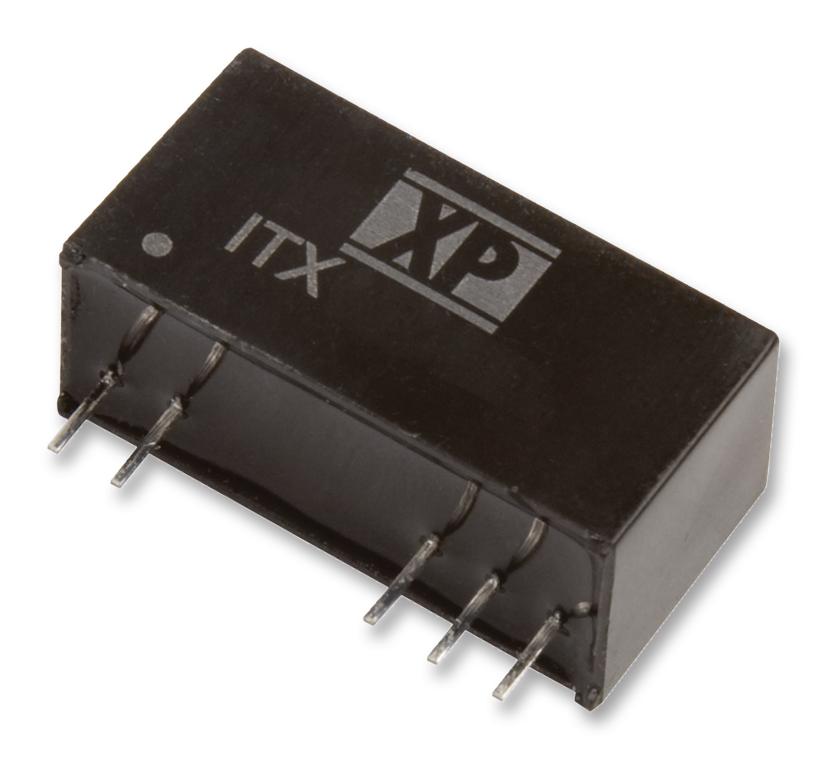

XP POWER ITX0524SA DC-DC Converter
The ITX Series DC-DC Converter by XP Power offers a compact 6-watt design with a 2:1 input voltage range, suitable for industrial applications. Its SIP-8 plastic case ensures durability, and it operates efficiently across temperatures from -40 °C to +90 °C. The converter provides both single and dual outputs with optional 3000 VDC isolation and remote control capabilities. Featuring high efficiency, low ripple, and noise, this converter is ideal for space-constrained systems requiring reliable power conversion with optional enhanced isolation. Its lightweight and compact size make it suitable for various automation and manufacturing environments.
XP POWER ITX0524SA DC-DC Converter Specifications:
- Power: 6 Watt
- Input Voltage Range: 9 V to 36 V DC
- Output Voltage: Customizable per model
- Isolation: 1500 VDC, optional 3000 VDC
- Operating Temperature: -40 °C to +90 °C
- Case: SIP-8 plastic
- Dimensions: 0.86 x 0.44 x 0.36 inches (21.85 x 11.1 x 9.2 mm)
- Efficiency: Up to 80% typical
- Ripple and Noise: 75 mV pk-pk
- Remote Control: Optional via suffix -R
- Surge Capacity: Up to 700 VDC for 100 ms
- Storage Temperature: -55 °C to +125 °C
- Protection: Short circuit with auto recovery
- Frequency: 4-15 MHz adjustable
- MTBF: 770,000 hours
Buy the Buy XP Power ITX Series DC-DC Converter Part Number ITX0524SA Online
Purchase the XP Power ITX Series DC-DC Converter online today and enjoy reliable, efficient power conversion for industrial equipment. This 6-watt converter features a 2:1 input range, SIP-8 plastic case, and operates across a wide temperature range from -40 °C to +90 °C. With optional 3000 VDC input-output isolation and remote control, it ensures flexible integration into your applications. Its high efficiency, low ripple, and noise make it ideal for automation, manufacturing, and control systems. Order now for quick delivery and proven performance.
Get XP Power ITX0524SA today—designed for high reliability, efficient power conversion, and long-lasting durability in industrial applications.
