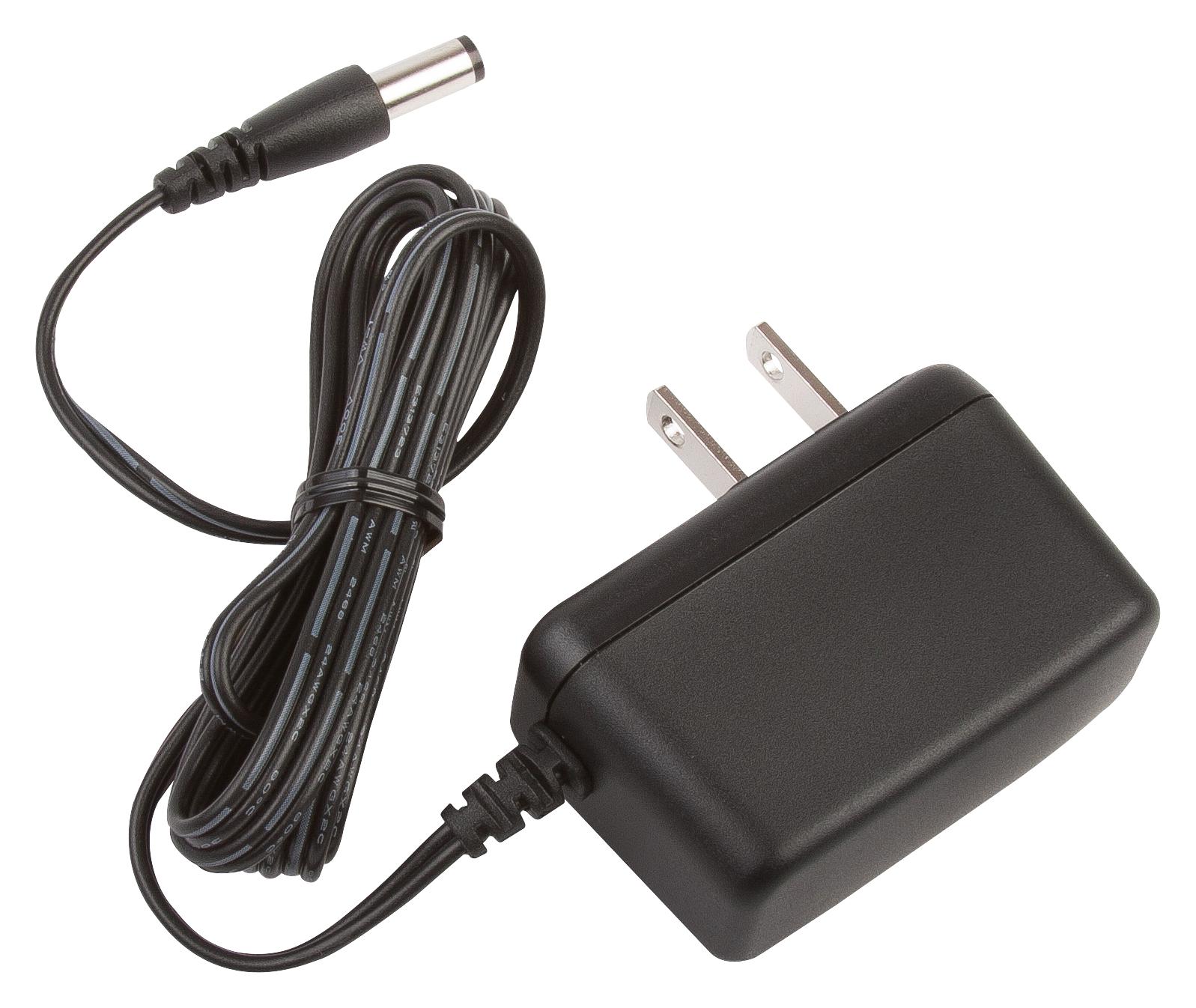

XP POWER VEL18US240USJA Wall Plug Adapter
The VEL18 series of wall plug adapters meet the latest Energy Efficiency Level VI standards, ensuring high active mode efficiency and very low no-load power consumption. These adapters feature a standard fixed mains connector and are suitable for a wide range of cost-sensitive applications, offering reliable industry-leading performance. They are designed with a universal input, Class II construction for safety, and are available with output voltages ranging from 9V to 24V. The output connector is a 5.5mm x 2.1mm x 12mm DC jack. The units operate within a temperature range of 0°C to 60°C and comply with safety standards including UL/cUL60950-1, IEC60950-1, TUV EN60950-1, and CCC. Dimensions are approximately 90mm x 34mm x 47.5mm. Suitable for industrial and consumer electronic applications.
XP POWER VEL18US240USJA Wall Plug Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 0.6 A at 100 VAC
- Output Voltage Range: 9V to 24V
- Output Power: 18 Watt
- Output Connector: 5.5mm x 2.1mm x 12mm DC jack
- Efficiency: 85% at 25% load, 50% load, 75% load, 100% load
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to +60°C, derates at higher temperatures
- Dimensions: Approx. 90mm x 34mm x 47.5mm
- Safety Standards: UL/cUL60950-1, IEC60950-1, TUV EN60950-1, CCC
- Certifications: Level VI energy efficiency, Class II construction
- Operating Humidity: 3% to 95% RH, non-condensing
- Cooling: Natural convection
Buy the XP Power Series AC-DC Power Supplies: VEL18US240USJA
Shop online for the XP Power Series AC-DC Wall Plug Adapter VEL18US240USJA. Designed for efficiency and safety, it features universal input voltage, low no-load power consumption, and reliable output voltages from 9V to 24V. Its compact size and standard DC jack connector make it ideal for industrial and consumer applications. Order now to secure a high-quality, energy-efficient power solution that meets international safety and environmental standards, delivering dependable performance for your electronic devices efficiently and cost-effectively.
Order your XP Power Series AC-DC Power Supply VEL18US240USJA today and ensure reliable, energy-efficient power for your electronic projects.
