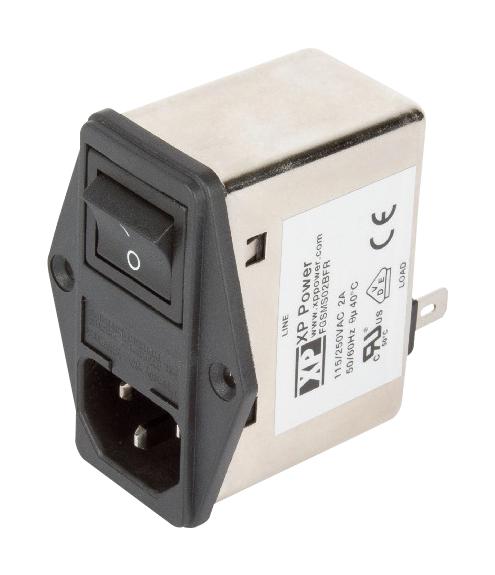

XP POWER FGSMA02BFR Medical Power Filter Inlet
The FGSMA02BFR is a compact, shielded metal housing assembly designed for medical applications. It combines a double-pole front-accessible switch, dual fuse holder, and low earth leakage filtered IEC 320-C14 inlet. This assembly effectively attenuates conducted electromagnetic interference from mains supply and minimizes emissions from equipment. Suitable for Class I appliances, it features a bleed resistor for safe capacitor discharge when power is off, a wide operating temperature from -40°C to 110°C, and full power up to 50°C. Approved under EN60939-2 and ANSI/UL1283 standards, available in 1A-10A ratings with screw mounting and Faston terminals.
XP POWER FGSMA02BFR Medical Power Filter Inlet Specifications:
- Rated Voltage: 250 VAG
- Rated Current: 1A, 2A, 4A, 6A, 10A (models available)
- Earth Leakage Current: 2-5 μA
- Input Frequency: 400 Hz
- Temperature Range: -40°C to 110°C (full power up to 50°C)
- Fuse fittings: 6.3 x 0.8mm Faston terminals
- Protection Class: Suitable for Class I appliances
- Safety approvals: EN60939-2, ANSI/UL1283
- Dielectric Strength: 1500 VAG
- Terminals: Faston 6.3 mm x 0.8 mm straight
- Construction: Shielded metal body with bleed resistor
- Dimensions: Compact design, panel cutout detailed in datasheet
- Weight: 95-108g depending on rating
- Mounting: Screw-mount for easy integration
Buy the XP Power FGSMA02BFR – Reliable Medical Power Filter Inlet for Industrial Applications
Enhance your medical equipment’s power reliability with the XP Power FGSMA02BFR, a compact, shielded, and EMI-attenuating filtered inlet. Featuring a dual fuse holder, a double-pole switch, and a low earth leakage design, it ensures safety and electromagnetic compatibility. Suitable for Class I appliances, it complies with EN60939-2 and UL1283 standards. Its wide operating temperature range from -40°C to 110°C, with full functionality up to 50°C, provides durability in demanding environments. Ideal for medical device manufacturers seeking robust power entry solutions.
Buy XP Power FGSMA02BFR now and experience unmatched reliability and performance in medical power filtering and switching solutions.
Frequently Asked Questions
Where can I buy XP POWER FGSMA02BFR?
You can click on the BUY or RFQ button to purchase FGSMA02BFR from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FGSMA02BFR?
You can download the FGSMA02BFR datasheet or visit the XP POWER website for support.
Who is the manufacturer of FGSMA02BFR?
XP POWER
